Большое обновление пильных узлов

Смотреть

Открытый узел

Console Controls / Switches, Circle Saw / Mobile Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T196077	9	Nut	-
2	T148409	2	Nut	-
3	T148411	2	Nut	-
4	T319160	1	Control Console	Side
5	T233661	1	Label	HVAC Controls
6	T248477	1	Plate	Cover
7	T232121	1	Plate	Cover
8	AT195301	1	Switch	Starter
9	AT195302	1	Key	Ignition
10	AT303862	1	Toggle/Rocker Switch	Work Light Switch
11	AT303865	1	Toggle/Rocker Switch	Air Conditioner On/Off Switch
12	AT302732	1	Toggle/Rocker Switch	Throttle Hold Mode
13	AT440387	1	Toggle/Rocker Switch	Stabilizer Control, SUB FOR AT420740
14	AT347136	1	Toggle/Rocker Switch	Washer
15	AT347133	1	Toggle/Rocker Switch	Wiper
16	AT347141	2	Toggle/Rocker Switch	Stabilizer, LH
17	AT347140	2	Toggle/Rocker Switch	Stabilizer, RH
18	AT347137	1	Toggle/Rocker Switch	Pilot Enable
19	RE46742	1	Control	Temperature
20	12H292	1	Lock Washer	1/2"
21	14H934	1	Nut	7/16"
22	RE43497	1	Switch	Rotary
23	AL76568	3	Knob	-
24	T59423	3	Grommet	-
25	24M7138	16	Washer	5.300 X 15 X 1 mm
26	19M8834	8	Cap Screw	M5 X 45
27	28H1921	8	Bushing	0.269" X 0.405" X 1"
28	14M7375	8	Flange Nut	M5
29	19M7775	9	Screw	M6 X 16
30	21M7344	2	Screw	M6 X 25
31	19M7786	4	Screw	M10 X 30
32	T233671	1	Bulkhead Wiring Harness	-
33	24M7296	2	Washer	10.500 X 30 X 2.500 mm
34	24M7139	2	Washer	6.400 X 18 X 1.600 mm
35	GY20126	2	Socket Outlet	Includes Cover
36	T362878	1	Label	Fuse Panel, SUB FOR T332841
37	T366526	1	Label	Relay, SUB FOR T332842
38	-	1	Part 38	CTL 690 mm, MF T59938
39	T157172	1	Label	Key Start
40	-	1	Part 40	CTL 366 mm, MF T58056
41	T209627	1	Clamp	-
42	R44165	2	Lock Nut	-
43	T218622	1	Label	Hand Throttle
44	AT340550	1	Potentiometer	Engine Speed
45	R39554	1	Switch	Horn
46	T55501	1	Cap	Horn Switch
47	14M7397	1	Lock Nut	M6
48	T226430	1	Tube	-
49	T226427	1	Washer	-
50	R78035	1	Push Nut	-
51	AT350611	1	Toggle/Rocker Switch	Circle Saw Enable, SUB FOR AT419214 OR AT440390
52	AT440388	1	Toggle/Rocker Switch	Circle Saw Enable, SUB FOR AT419213
53	AT440389	1	Toggle/Rocker Switch	Mobile Hydraulic Enable, SUB FOR AT420405
54	F121878	1	Grip	-
55	AT427726	1	Cab Wiring Harness	-
56	57M7631	1	Elec. Connector Housing	-
57	57M8010	1	Electrical Connector Assy	-
58	57M8020	1	Elec. Connector Housing	-
59	AT419103	1	Relay Module	12 V
60	AT427650	1	Rheostat	15 Ohms
61	T242110	1	Rheostat	-
62	57M8018	1	Electrical Connector Assy	-
63	RE68327	4	Relay	-
64	24M7117	2	Washer	4.300 X 9 X 0.800 mm
65	19M7715	1	Cap Screw	M4 X 30
66	14M7100	1	Nut	M4
67	T332845	1	Label	Mobile Hydraulics, Window
68	T332840	1	Label	Circle Saw Advance
69	H77698	3	Tie Band	-
70	R44302	1	Tie Band	-
71	H77698	3	Tie Band	-
72	T354254	1	Label	LH Joystick Button Configuration, SUB FOR T332844

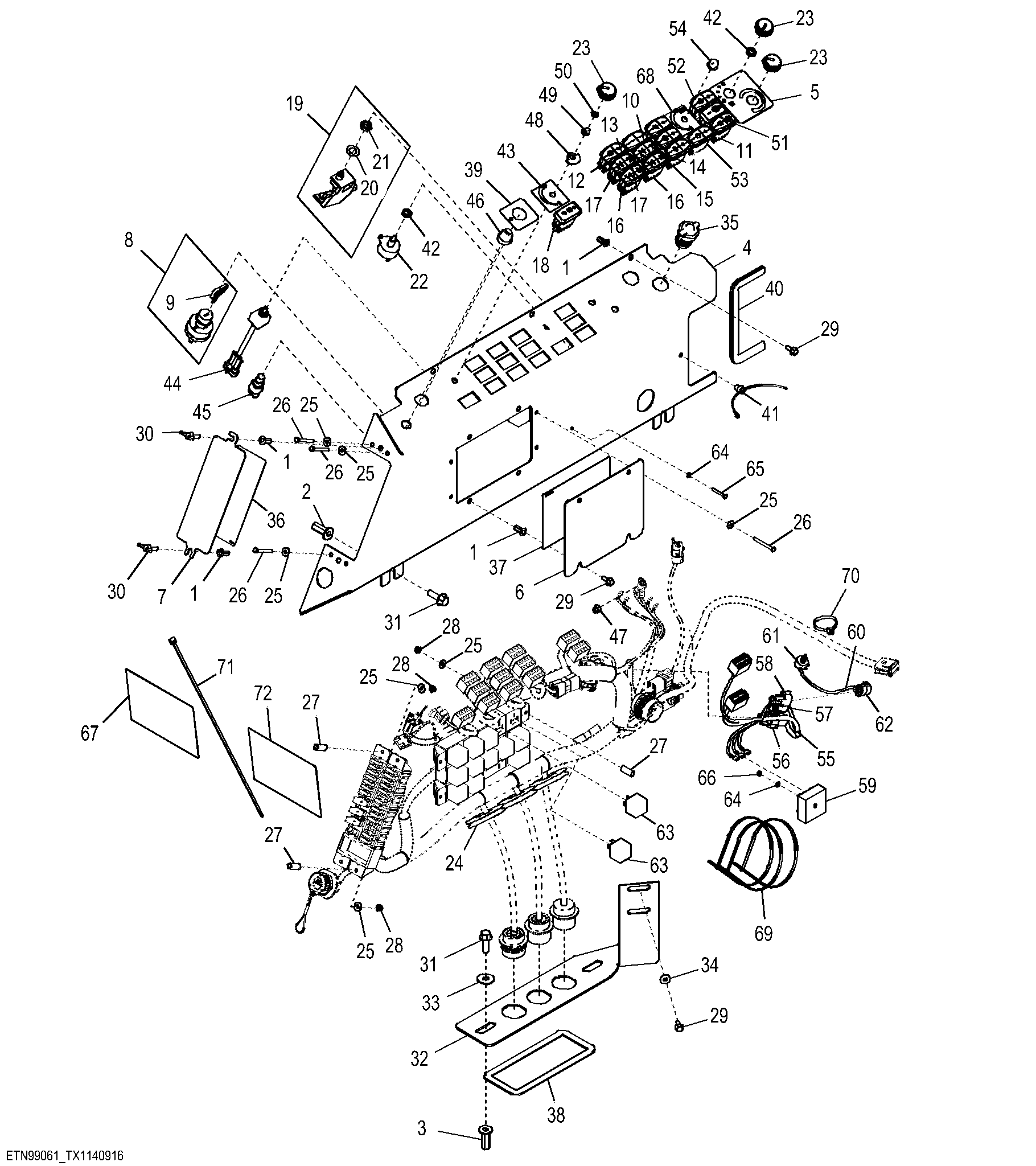

Console Controls / Switches, Circle Saw / Mobile Hydraulics
