№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T196077	9	Nut	-
2	T148409	2	Nut	-
3	T148411	2	Nut	-
4	T319160	1	Control Console	-
5	T233661	1	Label	HVAC Controls
6	T248477	1	Plate	-
7	T232121	1	Plate	-
8	AT195301	1	Switch	Starter
9	AT195302	1	Key	-
10	AT303862	1	Toggle/Rocker Switch	Work Light Switch, SUB FOR AT389129
11	AT303865	1	Toggle/Rocker Switch	A/C Switch, SUB FOR AT389128
12	AT302732	1	Toggle/Rocker Switch	Switch, Throttle Hold Mode (OFF - ON - AUTO), SUB FOR AT389207
13	AT440387	1	Toggle/Rocker Switch	Assembly Stabilizer Control, SUB FOR AT420740
14	AT347136	1	Toggle/Rocker Switch	Washer, SUB FOR AT389159
15	AT347133	1	Toggle/Rocker Switch	Wiper, SUB FOR AT389160
16	AT347141	2	Toggle/Rocker Switch	Stabilizer Switch, LH, SUB FOR AT389156
17	AT347140	2	Toggle/Rocker Switch	Stabilizer Switch, RH, SUB FOR AT389157
18	AT347137	1	Toggle/Rocker Switch	Pilot Enable, SUB FOR AT389161
19	RE46742	1	Control	Temperature
20	F003901	1	Washer	-
21	14H934	1	Nut	7/16"
22	RE43497	1	Switch	HVAC Controls
23	AL76568	3	Knob	-
24	T59423	3	Grommet	-
25	24M7138	16	Washer	5.300 X 15 X 1 mm
26	19M8834	8	Cap Screw	M5 X 45
27	28H1921	8	Bushing	0.269" X 0.405" X 1"
28	14M7375	8	Flange Nut	M5
29	19M7775	9	Screw	M6 X 16
30	21M7344	2	Screw	M6 X 25
31	19M7786	4	Screw	M10 X 30
32	T233671	1	Bulkhead Wiring Harness	-
33	24M7296	2	Washer	10.500 X 30 X 2.500 mm
34	24M7139	2	Washer	6.400 X 18 X 1.600 mm
35	GY20126	2	Socket Outlet	-
36	T362878	1	Label	Fuse Panel, SUB FOR T332841
37	T366526	1	Label	Relay, SUB FOR T332842
38	-	1	Part 38	CTL 690 mm, MF T59938
39	T157172	1	Label	Key Start
40	-	1	Part 40	Edging, Sealing Trim, CTL 366 mm, MF T58056
41	T209627	1	Clamp	-
42	R44165	2	Lock Nut	-
43	T218622	1	Label	Throttle Control
44	AT340550	1	Potentiometer	Engine Speed Gold
45	R39554	1	Switch	Horn
46	T55501	1	Cap	Horn Switch
47	14M7397	1	Lock Nut	M6
48	T226430	1	Tube	Bracket
49	T226427	1	Washer	-
50	R78035	1	Push Nut	-
51	M115279	1	Plug	3 Plug
52	AT350611	1	Toggle/Rocker Switch	Assembly Circle Saw Enable, SUB FOR AT419214 OR AT440390
53	AT440388	1	Toggle/Rocker Switch	Assembly Auto Retract Enable Circle Saw, SUB FOR AT419213
54	F121878	1	Grip	-
55	AT423118	1	Cab Wiring Harness	Circle Saw
56	57M8010	1	Electrical Connector Assy	8 Socket Plug
57	57M7631	1	Elec. Connector Housing	8 Pin Receptacle
58	57M8020	1	Elec. Connector Housing	3 Pin Receptacle
59	AT419103	1	Relay Module	Timer
60	AT427650	1	Rheostat	Enclosed, 25 ohm, 12.5%
61	T242110	1	Rheostat	-
62	57M8018	1	Electrical Connector Assy	3 Socket Plug
63	RE68327	2	Relay	Module
64	24M7117	2	Washer	4.300 X 9 X 0.800 mm
65	19M7715	1	Cap Screw	M4 X 30
66	14M7100	1	Nut	M4
67	T332840	1	Label	Circle Saw Advance Control
68	R44302	1	Tie Band	-
69	H77698	6	Tie Band	-
70	H77698	3	Tie Band	-
71	T332844	1	Label	LH Joystick Button Configuration
72	T332843	1	Label	RH Joystick Delimbing / Circle Saw

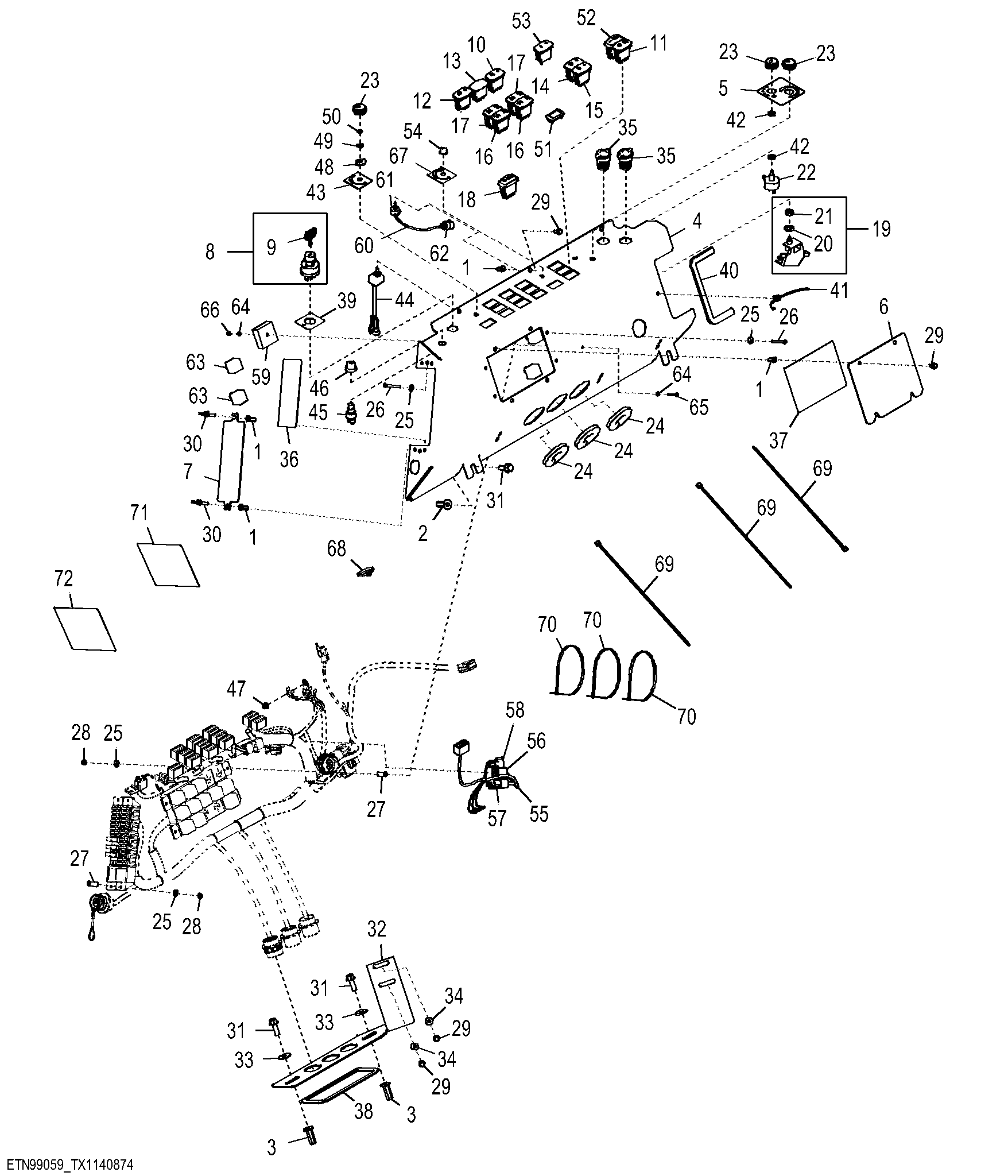

Console Controls / Switches, Circle Saw
