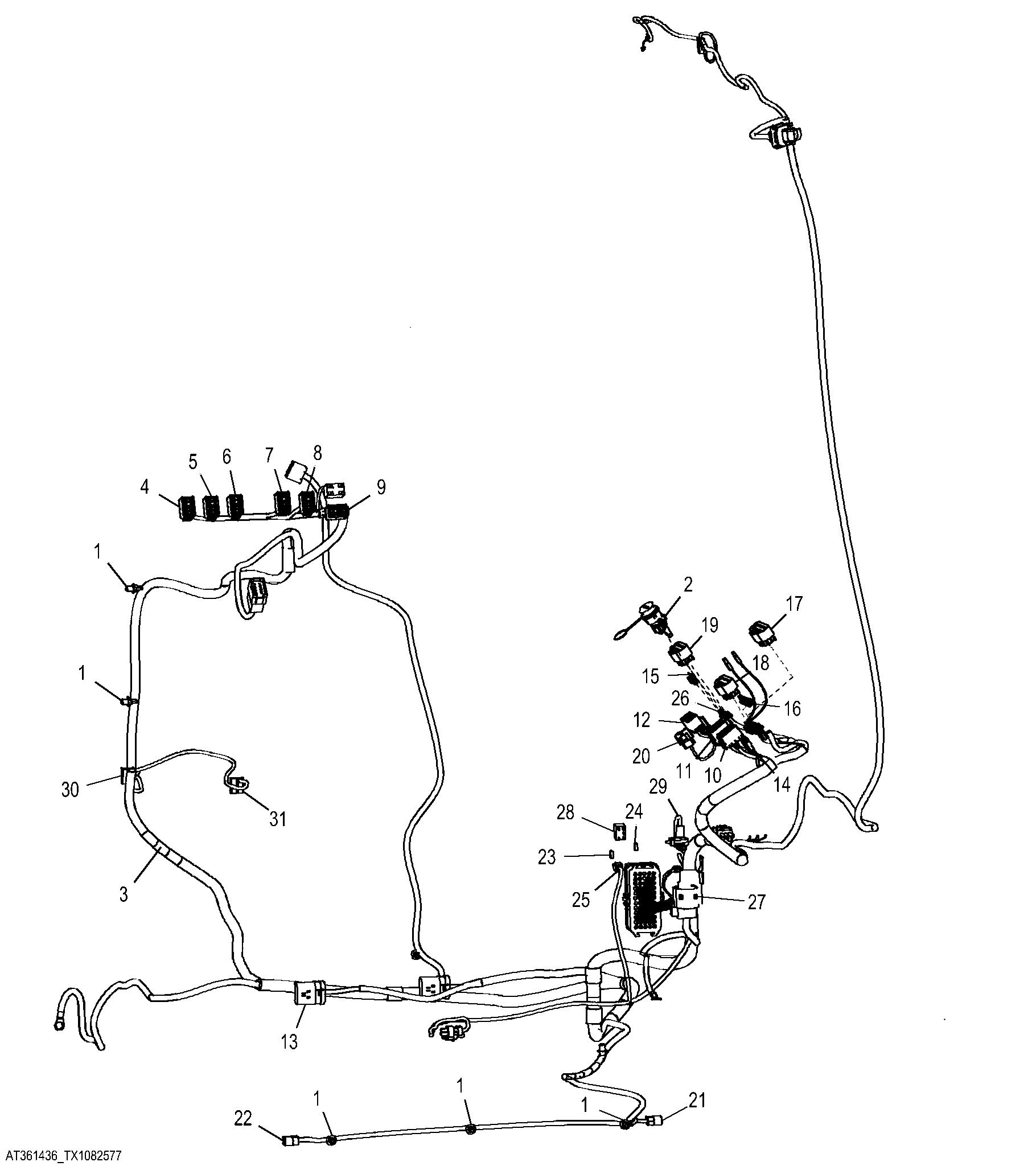

Side Console Wiring Harness And Connectors

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T209627	27	Clamp	-
2	AT400251	1	Socket Outlet	Power Port
3	AT395268	1	Wiring Harness	-
3	AT425184	1	Wiring Harness	-
4	T210282	1	Elec. Connector Housing	Wiper Switch
5	T210282	1	Elec. Connector Housing	Hazard Switch
6	T210282	1	Elec. Connector Housing	Front Work Light Switch
7	T210282	1	Elec. Connector Housing	Drive Light Switch
8	T210282	1	Elec. Connector Housing	High/Low Beam Light Switch
9	T210282	1	Elec. Connector Housing	Turn Signal Switch
10	T210282	1	Elec. Connector Housing	Rear or Optional Rear Work Light Switch
11	T210282	1	Elec. Connector Housing	Side Shift Lock Switch
12	T210282	1	Elec. Connector Housing	Park Brake Switch
13	57M9805	1	Elec. Connector Housing	Vehicle Cab Inline 2
14	57M8660	1	Elec. Connector Housing	Power Port
15	57M8231	3	Electrical Connector Assy	-
16	57M9919	1	Elec. Connector Accessory	-
17	57M9834	1	Elec. Connector Housing	Monitor J1
18	57M9835	1	Elec. Connector Housing	Monitor J2
19	57M9836	1	Elec. Connector Housing	Monitor J3
20	57M8407	1	Elec. Connector Housing	Key Switch
21	57M10169	1	Elec. Connector Housing	Rear Right Light
22	57M10169	1	Elec. Connector Housing	Rear Left Light
23	57M7689	5	Fuse	10 Amps
24	57M7691	3	Fuse	20 Amps
25	57M7690	7	Fuse	15 Amps
26	57M10876	1	Elec. Connector Accessory	-
27	AL156697	1	Relay	-
28	AT308380	2	Relay	-
29	57M10504	1	Elec. Connector Housing	SUB FOR R78053
30	R77480	1	Electrical Connector Assy	Brake Light Power Switch 1
31	R77480	1	Electrical Connector Assy	Brake Light Power Switch 2

Side Console Wiring Harness And Connectors

Нет текстового описания
