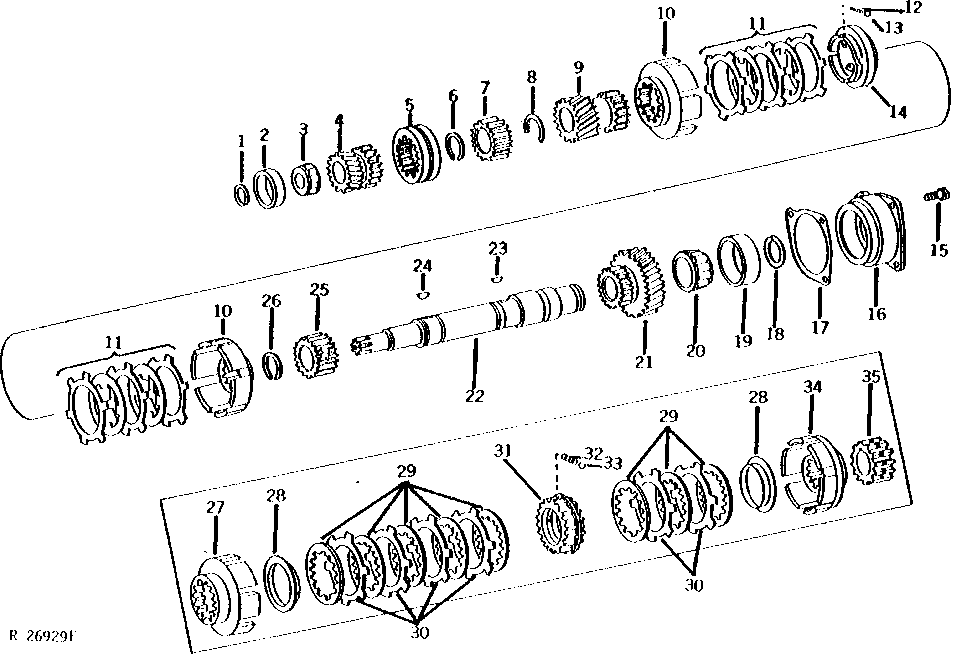

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE WITH COLLAR SHIFT REVERSE) [02B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R35165	1	Snap Ring	2.01MM (.079")
1	R35166	1	SNAP RING	2.08MM (.082")
1	R35167	1	SNAP RING	2.16MM (.085")
1	R35164	1	SNAP RING	1.93MM (.076")
2	JD8291	1	BEARING CUP	-
3	JD7232	1	BEARING CONE	-
4	R63974	1	PINION	(REVERSE RANGE) (SUB FOR R46124)
5	R62993	1	SHIFT COLLAR	(SUB FOR R46438)
6	R26218	1	Snap Ring	-
7	R50603	1	SHIFT COLLAR	(SUB FOR R46123)
8	R46405	1	SNAP RING	-
9	R59613	1	PINION	(LOW RANGE) (SUB FOR R46122 AND R53179)
10	R31026	2	DRUM	(LOW AND HIGH RANGE)
11	RE37119	1	DISK	(2 SETS UED) (SUB FOR AR48673 OR AR69154)
12	R59860	4	SPRING	(SUB FOR R27730)
13	A4742R	4	Ball	4MM (5/32")
14	R31028	1	SYNCHRONIZER	(LOW AND HIGH RANGE)
15	R57725	3	Screw	(SUB FOR R40835)
16	R46558	1	HOUSING	(NO LONGER AVAILABLE)
17	R26233	1	SHIM	0.15MM (.006")
17	R26234	1	SHIM	0.25MM (.010")
18	R26214	1	SNAP RING	1.93MM (.076") (SUB R49430)
18	R26217	1	SNAP RING	2.16MM (.085") (SUB R49433)
18	R26215	1	SNAP RING	2.01MM (.079") (SUB R49431)
18	R26216	1	SNAP RING	2.08MM (.082") (SUB R49432)
19	JD8236	1	Bearing Cup	-
20	JD9047	1	BEARING CONE	-
21	R46119	1	PINION	(HIGH-RANGE)
22	R46121	1	SHAFT	-
23	26H77	1	Shaft Key	3/16" X 3/4"
24	26H74	1	Shaft Key	3/16" X 5/8"
25	R46437	1	SHIFT COLLAR	(LOW AND HIGH RANGE)
26	R46404	1	SNAP RING	-
27	R63073	1	BRAKE DRUM	-
28	R63070	2	ROUND RETAINER	-
29	RE36170	8	Disk With Inner Spline	(SUB FOR AR77819)
30	R63069	6	CLUTCH PLATE	-
31	RE227962	1	Synchronizer	(SUB FOR AR77817)
32	R63074	4	SPRING	-
33	R63075	4	Ball	5.5MM (7/32")
34	R63072	1	DRUM	-
35	R62807	1	SHIFT COLLAR	-

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE WITH COLLAR SHIFT REVERSE) [02B16]
