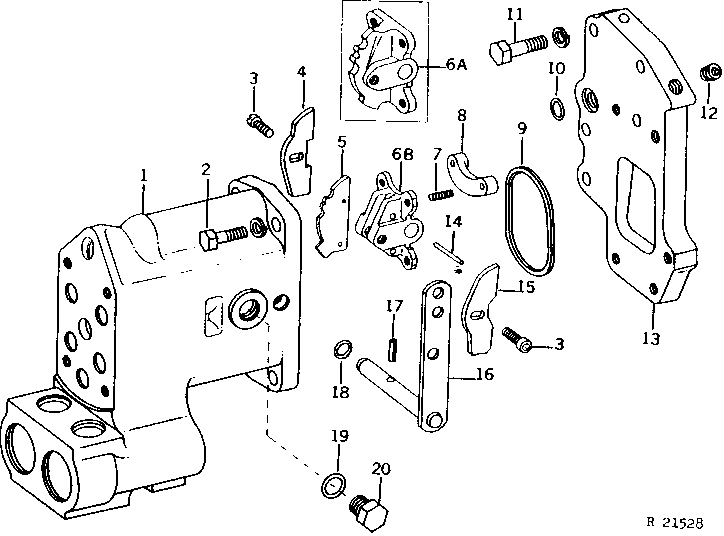

SELECTIVE CONTROL VALVE HOUSING, COVER, ROCKER, AND OPERATING CAMS [02H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR82572	1	HOUSING	(MARKED R65284)
1	AR40827	1	HOUSING	(MARKED R40499) (SUB AR82572, AR85628 AND R65289)
2	19H2731	1	Cap Screw	7/16" X 1-3/8", (4 USED SINGLE) (7 USED DUAL) (11 USED TRIPLE)
2	19H2055	1	CAP SCREW	7/16" X 2-1/4", (1 USED DUAL AND TRIPLE ONLY)
2	12H293	4	Lock Washer	7/16"
3	R27233	2	SCREW	-
4	R41931	1	CAM	UPPER, (SUB R51414)
4	R51414	1	CAM	(SUB AR253731) REGULAR
5	R51413	1	CAM	(SUB AR253730) DETENT
7	22H1025	4	Set Screw	1/4" X 7/8"
8	R49221	2	RETAINER	-
9	R40922	1	Back-Up Ring	-
10	F2741R	1	Packing	-
11	19H1978	4	Cap Screw	7/16" X 1-1/2"
11	12H293	5	Lock Washer	7/16"
11	19H2731	4	Cap Screw	7/16" X 1-3/8"
12	15H559	1	Pipe Plug	1/4", (1 USED DUAL) (2 USED TRIPLE)
12	15H558	1	Pipe Plug	1/8", (TRIPLE ONLY)
13	AR71188	1	COVER	(MARKED R41445, R50066 OR R60334) (ALSO ORDER (2) R59082) (SUB FOR AR41969 OR AR54331) (DUAL)
13	AR71189	1	COVER	(MARKED R41448, R50067 OR R59084) (ALSO ORDER (2) R59082) (SUB FOR AR41970 OR AR54332) (TRIPLE)
14	R28744	2	Pin	-
15	R41932	1	CAM	LOWER, (SUB R51415)
15	R51415	1	CAM	(SUB AR253733) FLOAT
16	AR48734	1	ARM	-
17	34H297	1	Spring Pin	7/32" X 1"
18	R65287	2	O-RING	-
19	R26375	2	O-Ring	-
20	R41155	2	Fitting Plug	-
6A	R40898	1	ROCKER	(SUB R51412, R51413, R51414, R51415 AND (2) R28744)
6B	R51412	1	ROCKER	-

SELECTIVE CONTROL VALVE HOUSING, COVER, ROCKER, AND OPERATING CAMS [02H08]
