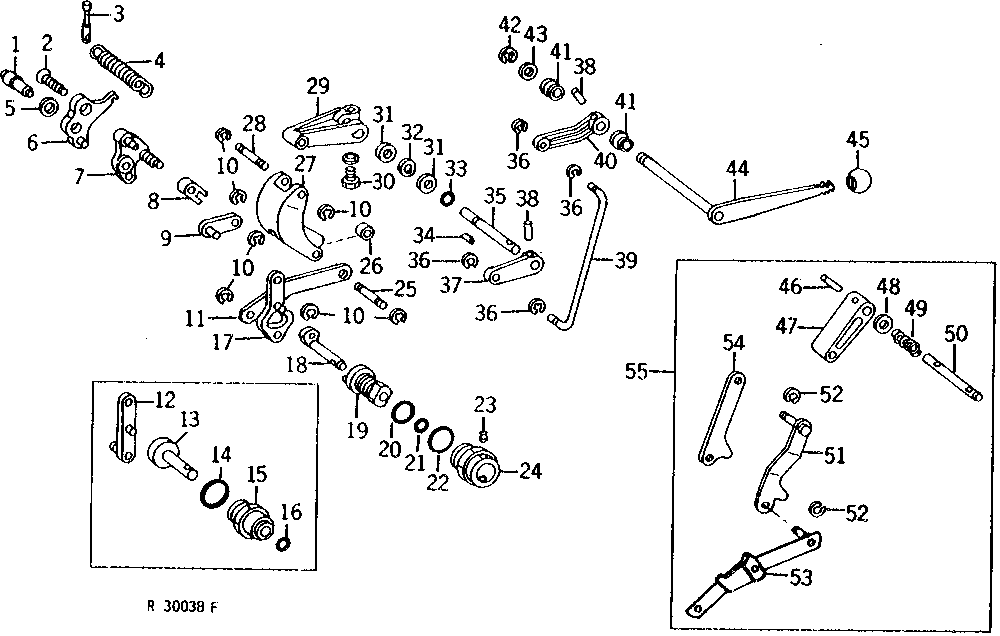

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL [02G04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64296	1	SHAFT	(SUB FOR R40949)
2	T22228	1	SCREW	-
3	R41108	1	PIN FASTENER	-
4	R60730	1	Extension Spring	(SUB FOR R44300 OR R53033)
5	24H1321	1	Shim	29/64" X 13/16" X 0.018"
6	AR40676	1	LEVER	-
7	AR40754	1	LINK	(SUB AR81783, R64845, T519T AND R64843)
8	R40885	1	NUT	(NLA)
9	AR40675	1	PIN FASTENER	-
10	R72653	7	Snap Ring	(SUB FOR M2396T)
11	R51025	1	LINK	(SUB FOR R41079)
12	AR40753	1	LINK	-
13	R41077	1	SHAFT	(SUB AR79505 AND AR72292)
14	U13639	1	O-Ring	-
15	R41115	1	BEARING HOUSING W/O BEARING	-
16	R394R	1	O-Ring	-
17	AR52797	1	LINK	(A)
18	R49333	1	SHAFT	(A)
19	AR52796	1	BUSHING	(A)
20	R27928	1	O-Ring	(A)
21	R394R	1	O-Ring	(A)
22	U13639	1	O-Ring	(A)
23	22H1033	1	Set Screw	(A) 5/16" X 3/8"
24	R49332	1	BEARING HOUSING W/O BEARING	(A)
25	R41118	1	PIN FASTENER	-
26	R41661	1	BUSHING	-
27	R40886	1	LINK	(SUB AR58474)
28	R41119	1	PIN FASTENER	-
29	R40944	1	ARM	(SUB AR58474)
30	12H303	1	Lock Washer	5/16"
30	19H1905	1	Cap Screw	5/16" X 1"
31	R47301	2	Washer	-
32	T519T	2	Washer	-
33	R394R	1	O-Ring	-
34	26H67	1	Shaft Key	1/8" X 3/8"
35	R41117	1	SHAFT	-
36	R72654	1	Snap Ring	(SUB FOR R27507)
37	R40892	1	LEVER	-
38	34H297	2	Spring Pin	7/32" X 1"
39	R40916	1	PIN	-
40	R40915	1	Lever	-
41	R41076	2	Grommet	-
42	R26871	1	Snap Ring	(SUB FOR P44982)
43	24H1227	1	Washer	17/32" X 13/16" X 0.060"
44	AR40683	1	LEVER	-
45	R40948	1	KNOB	-
46	R56504	1	Spring Pin	-
47	R56821	1	ARM	(SUB FOR R52824)
48	24H1341	1	Washer	17/32" X 15/16" X 0.060"
49	B423R	1	EXTENSION SPRING	-
50	R52823	1	SHAFT	-
51	AR72294	1	LINK	(ALSO ORDER AR72293) (SUB FOR AR58236)
52	R72653	2	Snap Ring	(SUB FOR M2396T)
53	AR72293	1	LINK	-
54	R52828	1	LINK	-
55	AR86775	1	STARTER MOTOR KIT	LOAD SELECTOR CONTROL LINKAGE, (SUB FOR AR58474)
..	AR55210	1	PUMP	REVERSE SIGNAL LOCKOUT, FOR ELIMINATION OF NEGATIVE STOP SCREW

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL [02G04]

Нет текстового описания
