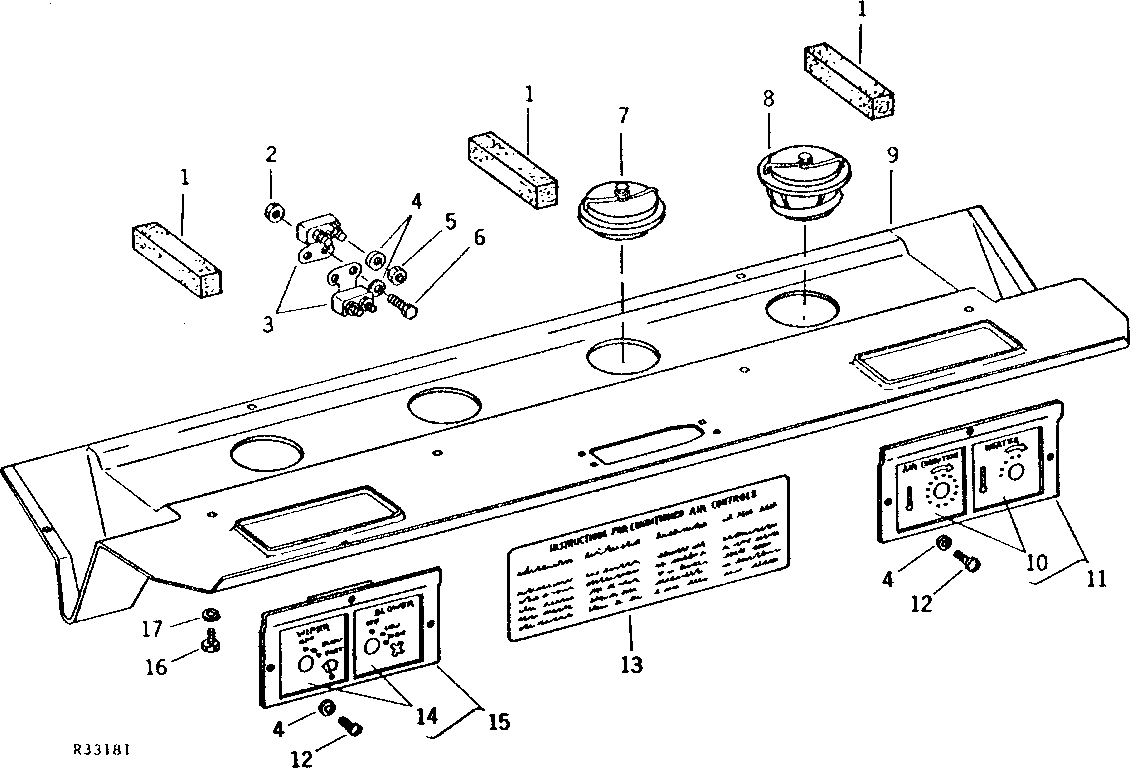

REAR CONSOLE COVER AND CONTROL PANEL (HINSON) [03B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	3	Part 1	25 X 25 X 127MM (1" X 1" X 6") (MAKE FROM R30937)
2	14H778	2	Nut	0.190"
3	AR28403	2	CIRCUIT BREAKER	-
4	12H246	10	LOCK WASHER	0.190"
5	14H631	4	Nut	0.190"
6	21H1317	2	SCREW	0.190" X 5/8"
7	AR49952	3	DEFLECTOR	-
8	AR49970	1	DEFLECTOR	-
9	R48874	1	COVER	-
10	R48896	1	LABEL	(HEATER)
10	R48908	1	LABEL	(AIR CONDITIONING)
10	R48911	1	LABEL	(AIR CONDITIONING AND HEATER) (NLA)
11	AR52326	1	PANEL	(AIR CONDITIONING)
11	AR52327	1	PANEL	(AIR CONDITIONING AND HEATER)
11	AR52314	1	PANEL	(HEATER)
11	AR52313	1	PANEL	-
12	21H1317	4	SCREW	0.190" X 5/8"
13	R54839	1	LABEL	(AIR CONDITIONING) (SUB FOR R48903)
13	R54840	1	LABEL	(PRESSURIZER)
14	R48882	1	LABEL	(WIPER AND BLOWER) (NLA)
15	AR52301	1	PANEL	(WIPER AND BLOWER) (NLA)
16	19H1227	11	Cap Screw	1/4" X 1/2"
17	12H302	11	Lock Washer	1/4"
..	R36590	3	PLUG	(LESS AIR CONDITIONING)
..	R36590	1	PLUG	(LESS AIR CONDITIONING)
..	R36590	1	PLUG	(LESS HEATER)
..	M42229	1	PLUG	(LESS AIR CONDITIONING) (SUB FOR R32234 OR T11708)
..	T13911	1	PLUG	(LESS AIR CONDITIONING)

REAR CONSOLE COVER AND CONTROL PANEL (HINSON) [03B14]

Нет текстового описания
