Открытый узел

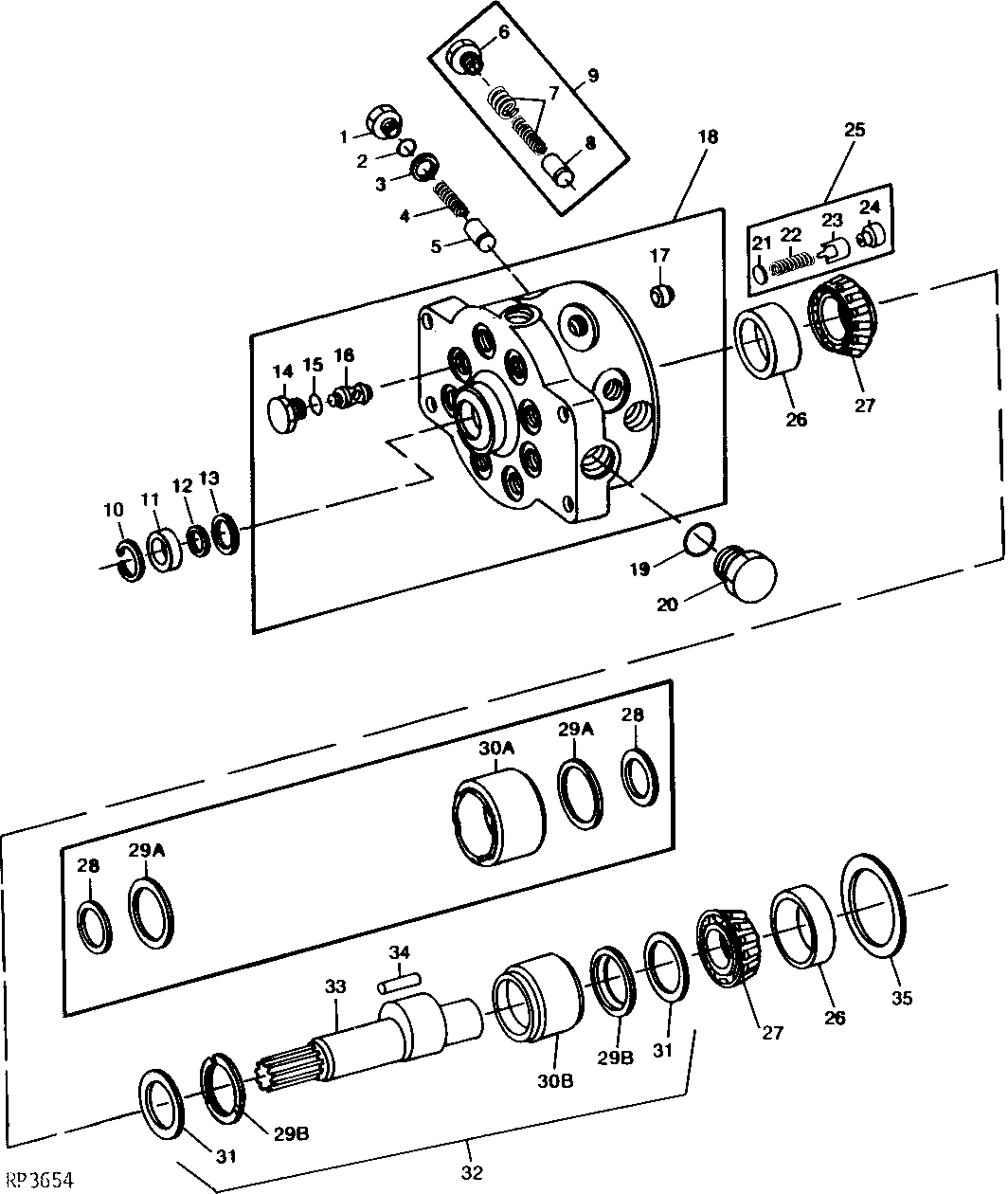

HYDRAULIC PUMP 66 CM3 (4 IN.3) (PUMP LESS SERIAL PLATE) (POWER FRONT WHEEL DRIVE) (TRACTOR SERIAL NO. 014561- ) [02E15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R75642	8	Drain Plug	(SUB FOR R44745)
2	R56751	8	O-Ring	-
3	AR101237	1	SHIELD	(SET OF 8) (SUB FOR R56750)
4	R51189	8	SPRING	(AR55330 NLA)
5	R51827	8	PISTON	(SUB RE11814) (SUB FOR R44824)
6	R70648	8	DRAIN PLUG	-
7	AR96408	1	SPRING	(SET OF 16)
8	R70976	8	PISTON	-
9	RE11814	1	NEEDLE BEARING	-
10	R26137	1	Snap Ring	-
11	RE28790	1	SEAL	(SUB FOR AR52224)
12	R56753	1	SHIM	-
13	R39729	1	O-RING	-
14	R78293	8	FITTING	(SUB FOR R44823)
15	R27149	8	O-Ring	-
16	AR53301	8	VALVE	(INLET)
17	R105583	8	Valve Seat Insert	-
18	AR70723	1	HOUSING	(MARKED R44801, R55010 OR R58773) (SUB AR94661) (SUB FOR AR48770)
19	U13639	1	O-Ring	(USE WITH R44801)
19	F3171R	1	O-Ring	(USE WITH R58773)
20	R27175	1	Drain Plug	1-1/16", (USE WITH R58773)
20	R39741	1	Drain Plug	1-5/8", (USE WITH R44801)
21	R49297	8	DISK	(SUB FOR R39074)
22	R39228	8	SPRING	-
23	R48738	8	GUIDE	-
24	R83508	8	Stop	(SUB FOR R39175, R49298 OR R72886)
25	RE23382	8	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
26	JD8223	2	Bearing Cup	-
27	JD8192	2	BEARING CONE	-
28	R45423	2	WASHER	(SUB RE12038) (ALSO ORDER RE11814)
31	R77903	2	WASHER	(SUB FOR R45425)
32	RE12038	1	AXLE KIT	(ALSO ORDER RE11814) (SUB FOR AR95470)
33	R44743	1	SHAFT	(A) (SUB R79156 AND (2) R79151)
34	R45422	25	NEEDLE ROLLER	(SUB FOR R77904)
35	R27479	1	SHIM	0.25MM (0.010")
35	R27478	1	SHIM	0.15MM (0.006")
..	AR99839	1	HYDRAULIC PUMP	(SUB AR94661) (ALSO ORDER R26906 AND F3171R) (SUB FOR AR46246, AR70722 OR AR73106)
..	AR70722	1	HYDRAULIC PUMP	(SUB AR94661) (ALSO ORDER R26906 AND F3171R) (SUB FOR AR46246 OR AR73106)
..	AR46246	1	HYDRAULIC PUMP	(SUB AR94661) (ALSO ORDER R26906 AND F3171R)
29A	R72429	2	WASHER	(BRONZE) (SUB RE12038) (ALSO ORDER RE11814) (SUB FOR R45424)
29B	R72507	2	Thrust Washer	-
30A	R44744	1	BEARING RACE	(SUB RE12038) (ALSO ORDER RE11814)
30B	R80558	1	Bearing Race	(SUB FOR R72509)

HYDRAULIC PUMP 66 CM3 (4 IN.3) (PUMP LESS SERIAL PLATE) (POWER FRONT WHEEL DRIVE) (TRACTOR SERIAL NO. 014561- ) [02E15]
