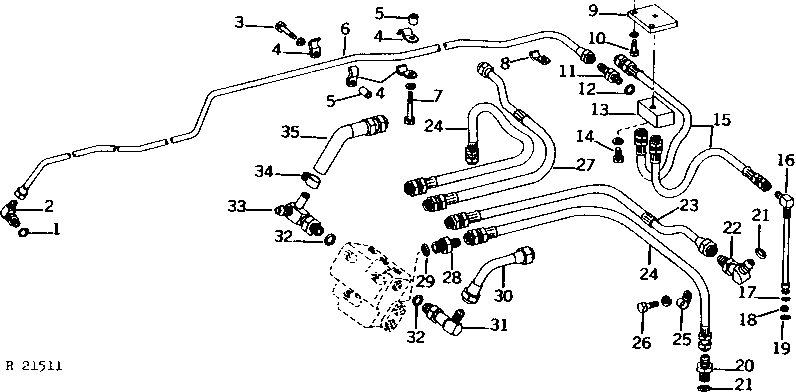

HYDRAULIC LINES (POWER FRONT WHEEL DRIVE) [02F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	1	O-Ring	-
2	AT32332	1	Elbow Fitting	90°, (SUB FOR AR26763)
3	12H304	1	Lock Washer	3/8"
3	19H1801	1	CAP SCREW	3/8" X 2"
4	R27539	4	CLAMP	-
5	28H1697	2	Spacer	3/8" X 3/4"
6	AR52426	1	LINE	(NLA)
7	19H1733	1	CAP SCREW	3/8" X 2-1/2"
7	12H304	1	Lock Washer	3/8"
8	R28538	1	CLAMP	-
9	R48659	1	Support	-
10	19H1731	2	Cap Screw	3/8" X 1"
10	12H304	2	Lock Washer	3/8"
11	R39249	1	Adapter Fitting	-
12	R26448	1	O-Ring	-
13	AR45234	1	FITTING	-
14	19H1800	1	Cap Screw	3/8" X 1-1/2"
14	12H304	1	Lock Washer	3/8"
15	AR45235	2	HYDRAULIC HOSE - FABRICATE	(64" TO 82" TREAD)
15	AR90081	2	Hydraulic Hose	(70" TO 88" TREAD) (SUB FOR AR50770)
16	AR53447	2	ELBOW FITTING	90°, (SUB FOR AR45198)
17	R10093	2	O-Ring	-
18	R44778	2	BACK-UP RING	(SUB R61462 AND R61463)
19	R26448	2	O-Ring	-
20	R27267	2	Fitting	-
21	F3171R	4	O-Ring	-
22	AR47803	2	ELBOW FITTING	60°
23	AR49295	1	HOSE	UPPER R.H. (64" TO 82" TREAD)
23	AR51459	1	HOSE	UPPER R.H. (70" TO 88" TREAD)
24	AR49297	2	HYDRAULIC HOSE	(64" TO 82" TREAD)
24	AR51461	2	HYDRAULIC HOSE	(70" TO 88" TREAD)
25	R33364	2	CLAMP	-
26	19H2552	2	CAP SCREW	3/8" X 1-1/8"
26	12H304	2	Lock Washer	3/8"
27	AR51460	1	HYDRAULIC HOSE	UPPER L.H. (70" TO 88" TREAD)
27	AR49296	1	HOSE	UPPER L.H. (64" TO 82" TREAD)
28	R27267	4	Fitting	-
29	F3171R	4	O-Ring	-
30	AR49293	1	OIL LINE	(NLA)
31	AR44384	1	Elbow Fitting	90°, (ILLUSTRATED)
31	AR53562	1	TEE FITTING	(NLA)
32	U17409	2	O-Ring	-
33	AR46957	1	ELBOW FITTING	90°, (SUB AR53560, R26375 AND R39112)
33	AR53560	1	FITTING	90°, (NLA)
34	AR21839	1	Clamp	(SUB TY22467)
35	AR46960	1	HYDRAULIC HOSE	(SUB FOR AR49294) (NLA)
