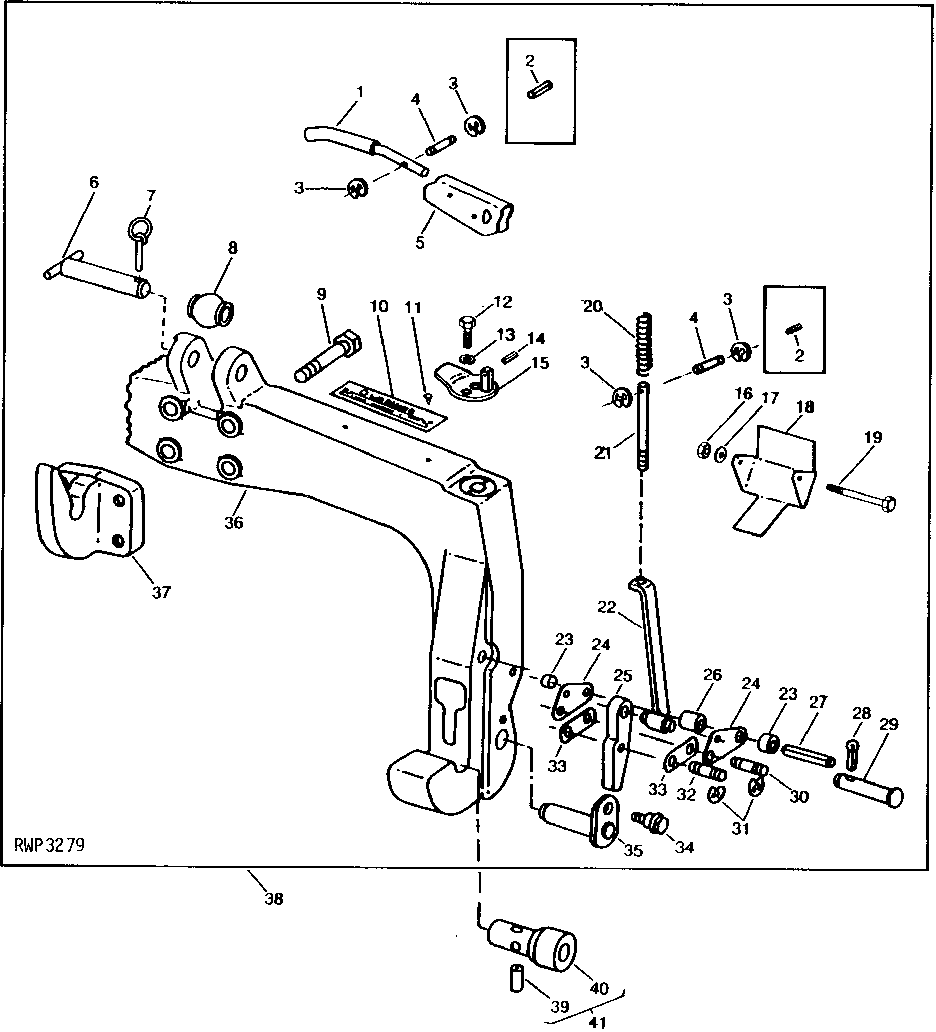

HEAVY-DUTY IMPLEMENT QUICK COUPLER (TRACTOR SERIAL NO. 150001- ) [02G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48163	2	Handle	-
2	34H311	4	Spring Pin	1/4" X 7/8"
3	R72654	8	Snap Ring	(SUB FOR R72654)
4	R66901	4	Spring Pin	-
5	R48164	2	Lever	-
6	AR67881	1	PIN	(SUB FOR AR51867) (SUB RE56991)
7	AR62151	1	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
8	F2681R	1	BALL	-
9	19H2026	4	CAP SCREW	3/4" X 4"
10	R83531	1	Label	(SUB FOR R56038) (SUB R120103)
11	37H44	2	Screw	0.154" X 3/8"
12	19H1731	4	Cap Screw	3/8" X 1"
13	12H304	4	Lock Washer	3/8"
14	34H311	4	Spring Pin	1/4" X 7/8"
15	AR50374	2	Bracket	-
16	14H786	2	Nut	1/4"
17	12H302	2	Lock Washer	1/4"
18	R53295	2	SHIELD	-
19	19H2338	2	Cap Screw	1/4" X 4-1/2"
20	R43444	2	Spring	-
21	R47578	2	Stud	-
22	AR50372	1	BAR	R.H.
22	AR50373	1	BAR	L.H.
23	F2206R	4	Washer	-
24	R65243	4	Link	(SUB FOR R47581 OR R58203)
25	R40424	2	LATCH	-
26	28H1919	2	Bushing	1/2" X 15/16"
27	34H377	2	SPRING PIN	1/2" X 3-1/2"
28	11M7087	2	Cotter Pin	0.157" X 1.575"
29	R63736	2	Pin Fastener	(SUB FOR R40425)
30	R119275	2	Pin Fastener	(SUB FOR R47679)
31	F2208R	8	SNAP RING	-
32	R119276	2	Pin Fastener	(SUB FOR R47678)
33	R65242	4	Strap	(SUB FOR R47590)
34	AR74673	2	CAP SCREW	(SUB FOR AR48110) (SUB R45997 AND 19H2898)
35	AR48111	2	PIN	-
36	R47577	1	FRAME	-
37	R41861	1	HOOK	-
38	AR50368	1	QUICK COUPLER	COMPLETE, HEAVY-DUTY (NLA)
39	R27999	2	Spring Pin	-
40	R27998	2	Half Sleeve	-
41	AR27093	1	ADAPTER KIT	-
