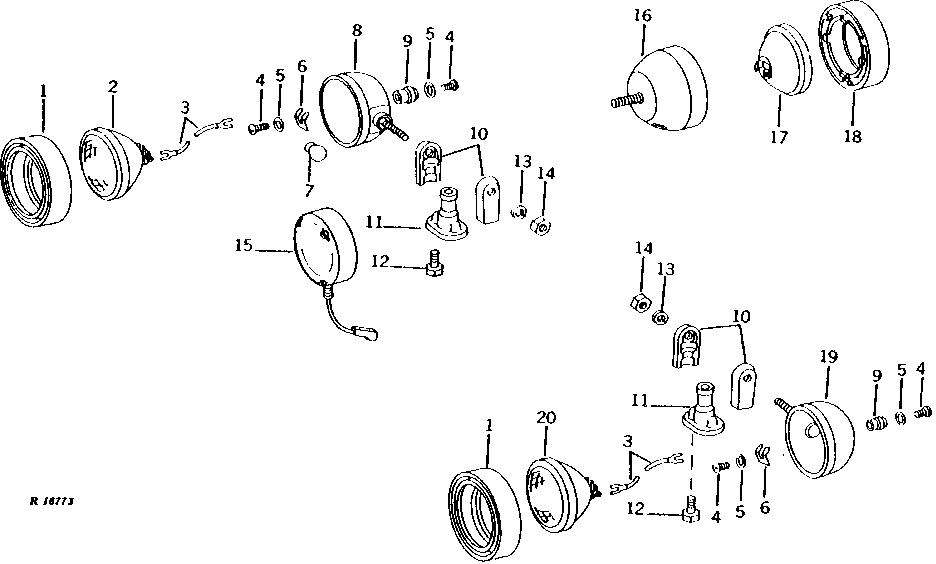

FRONT AND REAR LAMP AND REAR LAMP BRACKETS (STANDARD) [01G02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	2	BEZEL	REAR (GUIDE)
1	R30182	2	BEZEL	REAR (HOBBS)
2	AR77324	1	LAMP	(USE WITH AR77326)
2	AR21737	1	BULB	(12-VOLT) REAR L.H. (SUB AR77324, AD2062R AND AR77325) (WHEN ORDERED FOR AT16288)
3	-	2	Part 5	165MM (6-1/2") (MAKE FROM (2) R32016 AND TY16076)
4	21H1293	2	SCREW	0.164" X 5/16"
5	12M7084	2	Lock Washer	0.169"
6	A2899R	4	SPRING	REAR (GUIDE)
7	AR86969	1	BULB	15 C.P. (12-VOLT) REAR L.H. (USE WITH AT16288) (SUB FOR AR21739)
7	AD2062R	1	Bulb	32 C.P. ( 12-VOLT) (USE WITH AR77326)
8	AR55888	1	SOCKET	(USE WITH AT16288)
8	AR77325	1	SOCKET	(USE WITH AR77326)
8	AR77326	1	FLOODLAMP	(SUB FOR AT16288 OR AR28277)
9	R30181	4	PLATE	REAR (HOBBS)
9	AA3495R	4	SUPPORT	REAR (GUIDE)
10	R27460	4	ELEC. CONNECTOR ACCESSORY	-
11	T19178	2	BRACKET	-
12	37H106	4	SCREW	3/8" X 5/8"
12	24H1309	4	Washer	13/32" X 1-1/16" X 0.120"
13	12H301	2	Lock Washer	1/2"
14	14H1040	2	Nut	1/2"
15	AR50580	2	LAMP	WARNING
15	AD2062R	1	Bulb	32 C.P. (12-16 VOLT)
15	R48664	1	Lens	AMBER WITH RED REFLECTOR
15	R48665	1	Lens	AMBER
15	R49296	6	Screw	(SUB 37H210)
16	RE19080	2	Floodlamp	(12-VOLT FLOOD) (HALOGEN) (SUB FOR AR48722)
16	RE25127	1	Dual Beam Headlamp	L.H. (SUB FOR AR48721, THIS APPLICATION)
16	RE25126	1	Dual Beam Headlamp	R.H. (SUB FOR AR48721, THIS APPLICATION)
16	AR48721	2	HEADLIGHT	(12-VOLT DUAL BEAM)
17	RE25125	2	Dual Beam Headlamp	(12-VOLT) (FRONT) (SUB FOR AR48723)
17	AR21059	2	HEADLIGHT	(12-VOLT FLOOD) (FRONT)
17	RE285628	2	FLOODLAMP	LED LAMP, FLOOD PATTERN.
17	RE285629	2	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
18	R30182	4	BEZEL	FRONT (HOBBS)
18	R31250	4	BEZEL	FRONT (GUIDE)
19	AR35782	1	FLOODLAMP	(12-VOLT)
20	AR21059	1	HEADLIGHT	(12-VOLT) (REAR R.H.)

FRONT AND REAR LAMP AND REAR LAMP BRACKETS (STANDARD) [01G02]
