FRONT AND REAR LAMP AND REAR LAMP BRACKET (ROW-CROP) [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

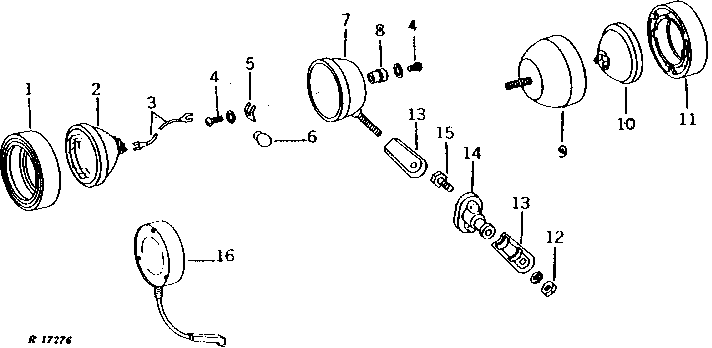

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	1	BEZEL	(REAR LAMP) (GUIDE)
1	R30182	1	BEZEL	(REAR LAMP) (HOBBS)
2	AR21737	1	BULB	(12-VOLT) (REAR, L.H.) (SUB AR77324, AD2062R AND AR77325)
3	-	2	Part 4	165MM (6-1/2") (MAKE FROM (2) R32016 AND TY16076)
4	21H1293	2	SCREW	0.164" X 5/16"
4	12M7084	2	Lock Washer	0.169"
5	A2899R	2	SPRING	L.H. (GUIDE)
6	AR86969	1	BULB	15 C.P. (12-VOLT) L.H. (SUB FOR AR21739)
7	AR55888	1	SOCKET	-
7	AR77326	1	FLOODLAMP	(12-VOLT) (SUB FOR AR34990, AT16288 OR AR28277)
8	R30181	2	PLATE	L.H. (HOBBS)
8	AA3495R	2	SUPPORT	L.H. (GUIDE)
9	AR48721	2	HEADLIGHT	(12-VOLT DUAL BEAM)
9	RE25126	1	Dual Beam Headlamp	R.H. (SUB FOR AR48721, THIS APPLICATION)
9	RE25127	1	Dual Beam Headlamp	L.H. (SUB FOR AR48721, THIS APPLICATION)
9	RE19080	2	Floodlamp	(12-VOLT FLOOD) (SUB FOR AR48722)
10	RE25125	2	Dual Beam Headlamp	(12-VOLT) (OUTER) (HALOGEN) (SUB FOR AR48723)
10	RE285629	2	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
10	RE285628	2	FLOODLAMP	LED LAMP, FLOOD PATTERN.
10	AR21059	2	HEADLIGHT	(12-VOLT FLOOD) (INNER)
11	R30182	4	BEZEL	FRONT (HOBBS)
11	R31250	4	BEZEL	FRONT (GUIDE)
12	14H1040	1	Nut	1/2"
12	12H301	1	Lock Washer	1/2"
13	R27460	2	ELEC. CONNECTOR ACCESSORY	-
14	R43662	1	BRACKET	-
15	37H106	2	SCREW	3/8" X 5/8"
16	AR50580	2	LAMP	WARNING
16	AD2062R	1	Bulb	(12-16 VOLT)
16	R48664	1	Lens	AMBER WITH RED REFLECTOR
16	R48665	1	Lens	AMBER
16	R49296	6	Screw	(SUB 37H210)
