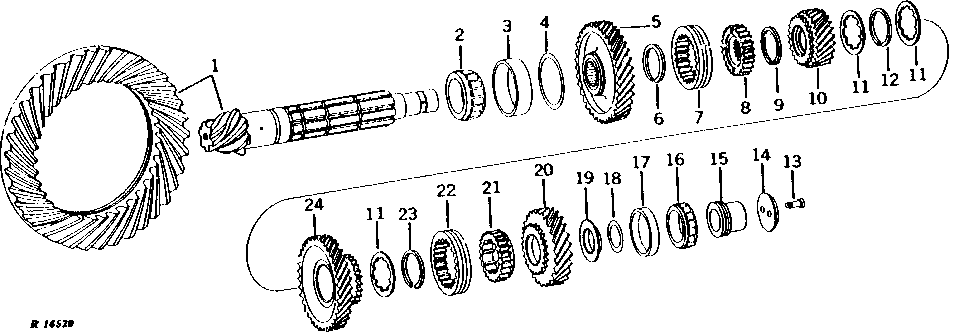

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (SYNCRO-RANGE) [02B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR48697	1	GEAR	(MARKED R33062 AND R46502) (MATCHED SET) ( RE193257 USED PART)
2	JD9046	1	Bearing Cone	-
3	JD9112	1	Bearing Cup	-
4	R46397	1	SHIM	0.08MM (.003")
4	R46398	1	SHIM	0.13MM (.005")
4	R46399	1	SHIM	0.25MM (.010")
5	AR93240	1	GEAR	1ST AND 3RD SPEED, (MARKED R46116, R67219 OR R70966) (SUB FOR AR48217 OR AR87486)
6	R46400	1	SNAP RING	-
7	R46439	1	SPLINED COUPLING	-
8	R46436	1	GEAR	-
9	R46401	1	SNAP RING	-
10	R46120	1	GEAR	6TH AND 8TH SPEED
11	R26068	3	WASHER	-
12	R46402	1	SNAP RING	-
13	R57725	2	Screw	(SUB FOR R40835)
14	R50365	1	PLATE	(SUB FOR R33347)
15	R46747	1	BEARING RACE	(LESS PTO) (SUB FOR R33346)
16	R154778	1	Bearing Cone	(SUB FOR JD8980)
17	JD7430	1	Bearing Cup	-
18	R33413	1	SHIM	0.08MM (.003")
18	R33414	1	SHIM	0.13MM (.005")
18	R33415	1	Shim	0.25MM (.010")
19	R69214	1	THRUST WASHER	(SUB FOR R33386)
20	R46118	1	GEAR	4TH AND 7TH SPEED
21	R46435	1	GEAR	-
22	R26066	1	SPLINED COUPLING	-
23	R46403	1	SNAP RING	-
24	R46117	1	GEAR	2ND AND 5TH SPEED

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (SYNCRO-RANGE) [02B15]
