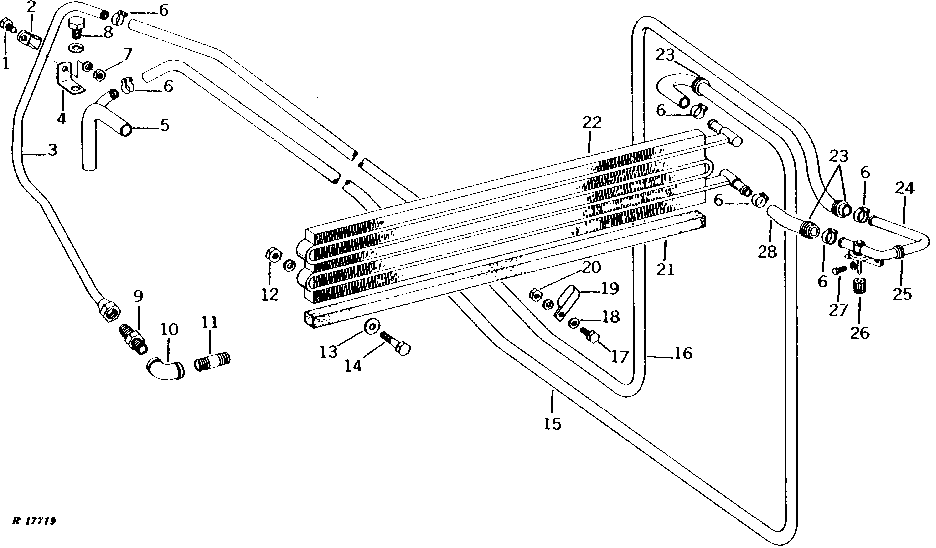

CAB HEATER AND HOSES (HINSON) [03B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1936	1	Cap Screw	3/8" X 3/4"
2	R46414	1	Clamp	-
3	AR51440	1	LINE	INLET
4	R48385	1	ANGLE	-
5	AR50598	1	TUBE	-
6	AR21837	6	Clamp	(SUB TY22465)
7	14H1076	1	Nut	3/8"
7	12H304	1	Lock Washer	3/8"
8	19H1833	1	Cap Screw	5/8" X 1-1/4"
8	12H294	1	Lock Washer	5/8"
9	R48384	1	Fitting	-
10	15H99	1	ELBOW FITTING	90°, 3/4"
11	29H253	1	THREADED NIPPLE	3/4"
12	14H785	3	Nut	5/16"
12	12H303	3	Lock Washer	5/16"
13	24H1291	3	Washer	21/64" X 1-15/32" X 7/64"
14	19H1906	3	Cap Screw	5/16" X 1-1/2"
15	-	1	Part 18	(MAKE FROM TY22328) (SUB FOR R45847) (CUT TO LENGTH)
16	-	1	Part 19	(MAKE FROM TY22328) (SUB FOR R45847) (CUT TO LENGTH)
17	19H1936	1	Cap Screw	3/8" X 3/4"
18	24H1301	1	Washer	13/32" X 9/16" X 0.065"
19	R42045	1	Clamp	-
20	14H1076	1	Nut	3/8"
20	12H304	1	Lock Washer	3/8"
21	R47468	1	ISOLATOR	-
22	AR49965	1	CORE	-
23	H31207	3	GROMMET	-
24	AR49987	1	VALVE	-
25	P41858	1	Grommet	-
26	AR69370	1	KNOB	(SUB FOR AR49969)
27	19H1227	2	Cap Screw	1/4" X 1/2"
27	12H302	2	Lock Washer	1/4"
28	-	1	Part 33	203MM (8") (MAKE FROM TY22328) (SUB FOR R45847)
