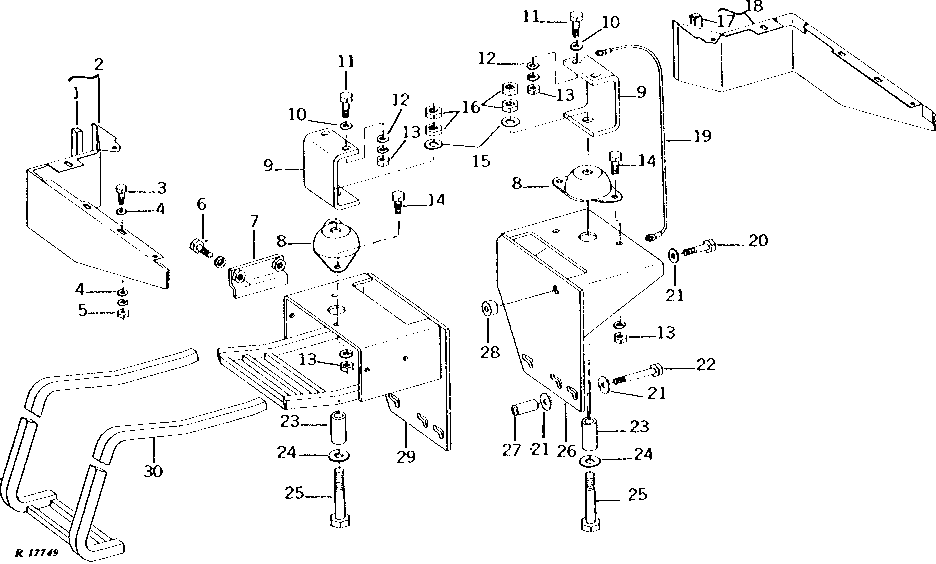

CAB FRONT SUPPORTS AND STEP (HINSON) [03C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	13 X 13 X 111MM (1/2" X 1/2" X 4-3/8")
2	AR53138	1	KIT	PANEL LOWER FRONT, L.H. (SUB FOR AR50856) (NLA)
2	AR53141	1	CLIP	(NLA)
2	AR53140	1	PANEL	-
3	19H1936	1	Cap Screw	3/8" X 3/4"
4	24H1305	2	Washer	13/32" X 13/16" X 0.065"
5	14H1076	1	Nut	3/8"
5	12H304	1	Lock Washer	3/8"
6	19H1731	4	Cap Screw	3/8" X 1"
6	12H304	4	Lock Washer	3/8"
7	AR51347	2	CLAMP	(NLA)
8	AR51810	2	SUPPORT	-
9	R47982	2	BRACKET	UPPER (NLA)
10	24H1227	4	Washer	17/32" X 13/16" X 0.060"
11	19H1815	4	Cap Screw	1/2" X 1-1/4"
12	24H1111	4	Washer	-
13	14H1040	8	Nut	1/2"
13	12H301	8	Lock Washer	1/2"
14	19H1792	4	Cap Screw	1/2" X 1"
15	24H1396	2	Washer	25/32" X 1-1/2" X 0.105"
16	14H794	2	Nut	3/4"
16	R40121	4	Lock Nut	-
17	-	1	Part 23	13 X 13 X 111MM (1/2" X 1/2" X 4-3/8") (MAKE FROM R47941)
18	AR53137	1	KIT	PANEL LOWER FRONT, R.H. (SUB FOR AR50855) (NLA)
18	AR53139	1	PANEL	R.H.
18	AR53141	1	CLIP	(NLA)
19	AR46820	1	WIRING LEAD	-
19	AR56758	1	Wiring Lead	-
20	19H1831	2	Cap Screw	1/2" X 2"
21	R63024	10	WASHER	(SUB FOR R26575) (SUB AR253740)
22	19H1781	4	CAP SCREW	1/2" X 3-1/2"
23	R44221	2	BUSHING	-
24	24H1402	2	Washer	25/32" X 1-7/8" X 1/4"
25	19H2026	2	CAP SCREW	3/4" X 4"
26	AR50866	1	SUPPORT	R.H. (NLA)
27	28H2588	4	SPACER	1/2" X 1-11/16", (NLA)
28	R48168	2	BUSHING	-
29	AR50867	1	SUPPORT	L.H. (NLA)
30	AR50870	1	STEP	-

CAB FRONT SUPPORTS AND STEP (HINSON) [03C17]

Нет текстового описания
