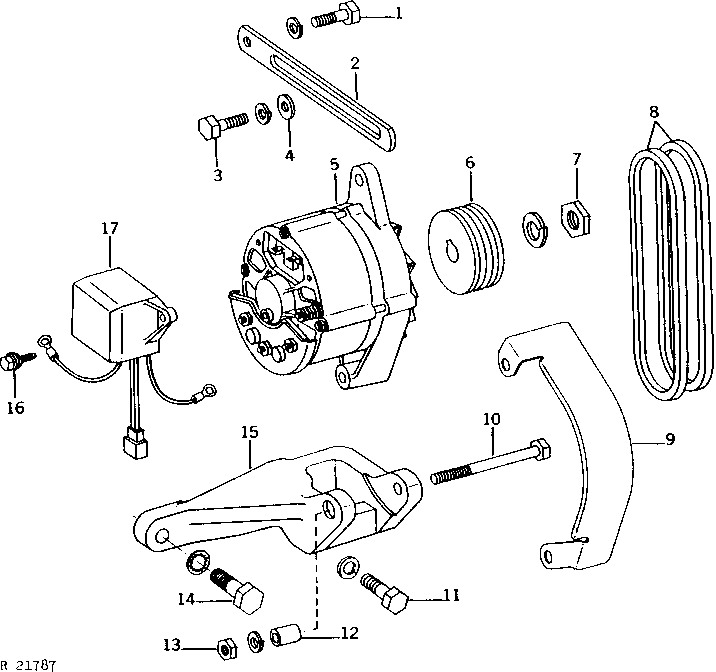

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET [01E22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
1	19H2284	1	Cap Screw	3/8" X 7/8"
2	R46731	1	STRAP	(A)
2	R43603	1	STRAP	-
3	19H1905	1	Cap Screw	5/16" X 1"
3	12H303	1	Lock Washer	5/16"
4	24H1292	1	Washer	11/32" X 3/4" X 0.120"
5	RE13797	1	Alternator	(72 AMP) (DELCO-REMY NO. 1105175) (SUB RE31694 OR TY6790)
5	SE501357	1	Alternator Reman	12V 55A (REMAN FOR AR40420 OR TY26017)
5	SE501340	1	ALTERNATOR REMAN	(REMAN FOR TY24309)
5	SE501386	1	ALTERNATOR	(REMAN FOR TY6790)
5	SE501382	1	Alternator Reman	(REMAN FOR TY6772)
5	TY6790	1	ALTERNATOR	(90 AMP) (DELCO-REMY) (SUB FOR TY6625)
5	TY6772	1	ALTERNATOR	(72 AMP) (DELCO-REMY)
5	TY6686	1	Alternator	(78 AMP) (DELCO-REMY)
5	RE31694	1	Alternator	(A) (72 AMP) (DELCO-REMY NO. 1101345) (SUB FOR AR54793, AR84306 OR AR93446) (ALSO ORDER R71248, 12M7006, 19M7163 AND 19M7065)
5	RE27109	1	Alternator	(78 AMP) (DELCO-REMY NO. 1101268) (SUB RE31694 OR TY6686)
5	AR93446	1	ALTERNATOR	(72 AMP) (DELCO-REMY NO. 1103128) (SUB RE31694 OR TY6790)
5	AR84306	1	ALTERNATOR	(72 AMP) ((DELCO-REMY NO. 1102932) (SUB RE31694, R71248, 12M7006, 19M7163 AND 12M7065 OR TY6790)
5	AR54796	1	ALTERNATOR	(55 AMP) (DELCO-REMY NO. 1100491) (SUB TY6772 OR TY6790)
5	TY24309	1	ALTERNATOR	(A) (72 AMP) (MOTOROLA) (SUB FOR TY6603)
5	AR52077	1	ALTERNATOR	(A) (72 AMP) (MOTOROLA NO. 70D44414C01) (SUB TY24309)
5	TY24307	1	ALTERNATOR	(55 AMP) (MOTOROLA) (SUB FOR TY1430) (SUB TY26017)
5	AR40420	1	ALTERNATOR	(55 AMP) (MOTOROLA NO. 70D44110C01) (SUB TY24307)
6	R50661	1	PULLEY	(A)
6	AR55173	1	PULLEY	(A) (SUB FOR R48426)
6	R43828	1	PULLEY	-
7	14H866	1	Nut	5/8"
7	12H294	1	Lock Washer	5/8"
7	14H866	1	Nut	5/8"
7	12H294	1	Lock Washer	5/8"
7	R11049	1	Nut	(A)
7	T10745	1	Washer	(A)
8	AR43219	1	BELT SET	-
8	AR56638	1	BELT SET	(A) (SUB FOR AR41574)
9	R56012	1	SHIELD	(SUB FOR R41334 OR R55245) (SUB R122848)
10	19H1854	1	Cap Screw	3/8" X 3-3/4"
11	12H293	1	Lock Washer	7/16"
11	19H1740	1	Cap Screw	7/16" X 1-3/4"
12	R45377	1	SPACER	-
13	14H1076	1	Nut	3/8"
13	12H304	1	Lock Washer	3/8"
14	19H2731	1	Cap Screw	7/16" X 1-3/8"
14	12H325	1	Lock Washer	7/16"
15	R48777	1	BOLT	-
15	AR55174	1	BRACKET	(A) (SUB FOR R48817)
16	37H201	3	Screw	(SUB FOR R44008)
16	T31308	2	SCREW	(A)
17	AR78298	1	VOLTAGE REGULATOR	(MOTOROLA) (SUB FOR AR38459 OR AR52927) (USE WITH AR40420)
17	AT56592	1	REGULATOR	(A) (MOTOROLA) (USE WITH AR52077)

ALTERNATOR, REGULATOR, AND MOUNTING BRACKET [01E22]
