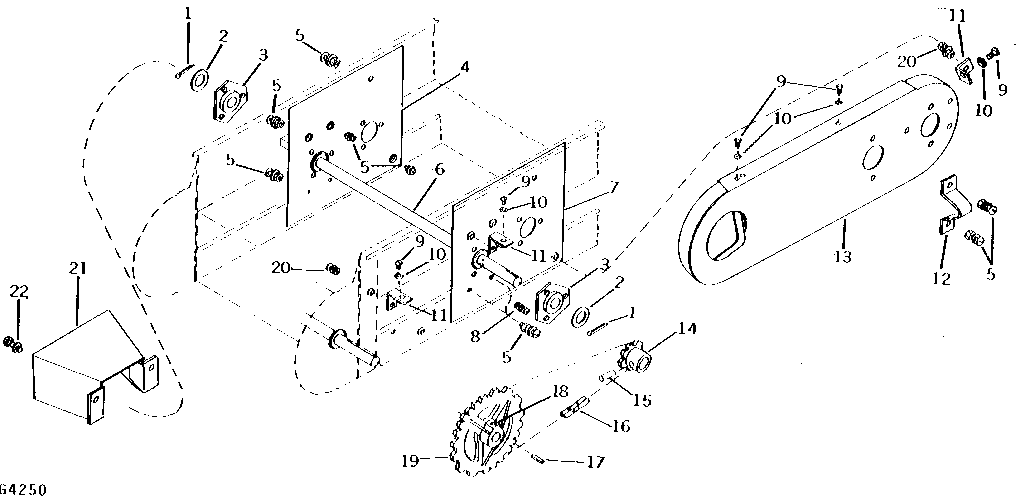

DRIVE (GASOLINE ENGINE, ELECTRIC MOTOR, AND LEFT-HAND PTO) [B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11H250	2	Cotter Pin	1/4" X 2-1/2"
2	24H1669	1	Washer	1-25/64" X 2-1/8" X 0.075"
3	JD8545	2	Ball Bearing	(SUB FOR GEP1455)
3	E10018	4	Pressed Flanged Housing	(SUB FOR GEP1491)
4	GEPA20262	1	PLATE	L.H.
5	21H1311	2	Screw	5/16" X 1/2"
5	12H303	2	Lock Washer	5/16"
5	14H785	2	Nut	5/16"
6	GE20163B	1	JACKSHAFT	(SUB FOR GE20163)
7	GE20038	1	PLATE	R.H.
8	19H1936	6	Cap Screw	3/8" X 3/4"
8	12H304	6	Lock Washer	3/8"
8	14H812	6	NUT	3/8"
9	21H1334	3	Screw	3/8" X 1/2"
10	12H304	3	Lock Washer	3/8"
11	GEPA18771	3	BRACKET	-
12	GE20282	1	SHIELD	-
13	GEPA20258	1	GUARD	-
14	GE464SL	1	DRIVE SPROCKET	14-TOOTH
15	GEP1312	1	PIN FASTENER	-
16	-	1	Part 21	(ASSEMBLE FROM AP22463, BP10237 AND BP10238) TYPE A2050, 1-1/4" DOUBLE PITCH; 43 LINKS
17	-	1	Part 22	3/8" X 3/8" X 1-1/2" (CUT FROM H64376 IN KEY STOCK KIT AH64587)
18	22H812	1	Set Screw	5/16" X 3/4"
19	GE462HH	1	DRIVE SPROCKET	-
20	21H1304	3	Screw	5/16" X 3/4"
20	12H303	3	Lock Washer	5/16"
20	14H785	3	Nut	5/16"
21	GEPA20264	1	SHIELD	-
22	21H1022	2	Screw	1/4" X 1/2"
22	12H302	2	Lock Washer	1/4"

DRIVE (GASOLINE ENGINE, ELECTRIC MOTOR, AND LEFT-HAND PTO) [B10]

Нет текстового описания
