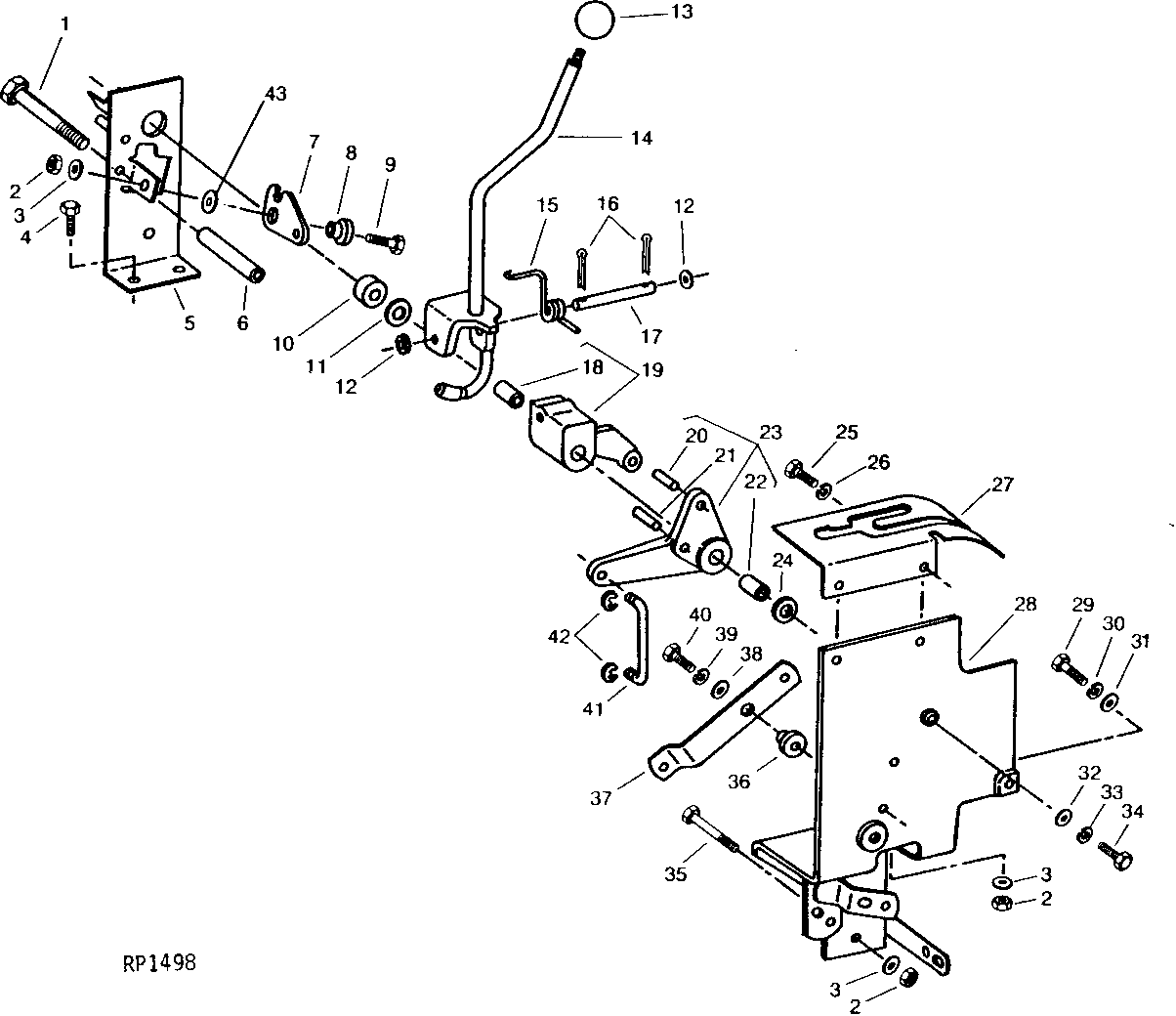

TRANSMISSION SHIFTER CONTROL SUPPORT, LEVER, AND LINKAGE (POWER SHIFT) [03F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2852	1	Cap Screw	5/16" X 4"
2	14H1076	5	Nut	3/8"
3	12H304	5	Lock Washer	3/8"
4	19H2284	2	Cap Screw	3/8" X 7/8"
5	AR54956	1	SUPPORT	-
6	28H3299	1	Spacer	1/4" X 3-7/16"
7	R56316	1	LEVER	(SUB FOR R50866) (SUB RE12597)
8	R41134	1	BUSHING	-
9	19H2552	1	CAP SCREW	3/8" X 1-1/8"
10	R52138	1	Spacer	-
11	R21727	1	SHIM	30MM (.012")
12	24H1289	2	Washer	21/64" X 5/8" X 0.049"
13	R50864	1	KNOB	-
14	AR75912	1	GEARSHIFT LEVER	(SUB FOR AR54957 OR AR69265)
14	R61680	1	WELD STUD	(B)
15	R50800	1	SPRING	(SUB RE70193)
16	11M7079	2	Cotter Pin	0.098" X 0.472"
17	R45832	1	PIN FASTENER	(SUB RE70193)
18	R653R	2	BUSHING	-
19	AR58937	1	PIVOT	(SUB AR66962 AND (3) R21727)
19	AR66962	1	GUIDE	-
20	R38295	1	Needle Roller	-
21	A4681R	1	DOWEL PIN	-
22	R653R	1	BUSHING	-
23	AR66963	1	LEVER	(MARKED R56315)
23	AR58935	1	LEVER	(MARKED R50799) (SUB AR66963 AND (3) R21727)
24	24H1658	1	Washer	21/32" X 1" X 0.060"
25	19H1813	2	CAP SCREW	5/16" X 5/8"
26	12H303	2	Lock Washer	5/16"
27	R77308	1	PLATE	(SUB FOR R50802) (SUB RE70193)
28	AR70233	1	SUPPORT	(SUB FOR AR54951)
29	19H1731	2	Cap Screw	(A) 3/8" X 1"
30	12H304	2	Lock Washer	(A) 3/8"
31	24H1305	2	Washer	(A) 13/32" X 13/16" X 0.065"
32	24H1312	1	Washer	-
33	R53668	1	THRUST WASHER	-
34	R53664	1	Self-Locking Screw	-
35	19H1944	2	Cap Screw	3/8" X 2-3/4"
36	R52668	1	BUSHING	-
37	R50803	1	LEVER	-
38	24H1822	1	Washer	11/32" X 7/8" X 1/16"
39	12H303	1	Lock Washer	5/16"
40	19H1905	1	Cap Screw	5/16" X 1"
41	R50804	1	LINK	-
42	R72654	2	Snap Ring	(SUB FOR R27507)
43	R27441	1	Washer	-

TRANSMISSION SHIFTER CONTROL SUPPORT, LEVER, AND LINKAGE (POWER SHIFT) [03F18]
