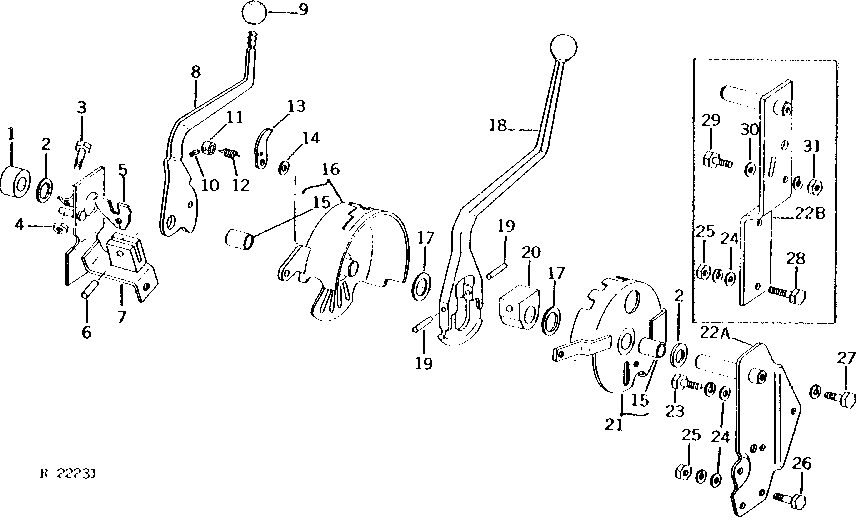

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT (SYNCRO-RANGE AND CREEPER) (TRACTOR SERIAL NO. 013000- ) [03D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R55554	1	SPACER	-
2	R42127	2	Washer	-
3	19H2117	1	Cap Screw	5/16" X 1-1/8"
4	14H611	1	Nut	5/16"
5	R52882	1	LATCH	-
6	34H348	1	Spring Pin	3/8" X 1"
7	AR62259	1	SUPPORT	-
7	AR62258	1	SUPPORT	(SOUND-GARD BODY OR ROLL-GARD)
7	R57449	1	Pin Fastener	-
8	AR89782	1	LEVER	(SUB FOR AR64909)
9	R56416	1	KNOB	-
10	34H245	1	Spring Pin	1/8" X 5/8"
11	R55558	1	CAP	-
12	R55555	1	SPRING	-
13	R55556	1	PAWL	-
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	R26182	2	Bushing	-
16	AR64910	1	QUADRANT	(SUB AR89776 AND AR89782)
17	R26187	2	WASHER	-
18	R55553	1	LEVER	(SUB R70535 AND R50864)
19	34H316	2	Spring Pin	1/4" X 1-1/2"
20	R53247	1	PIVOT	-
21	AR64913	1	QUADRANT	(SUB AR89779)
23	19H1731	2	Cap Screw	3/8" X 1"
23	12H304	2	Lock Washer	3/8"
24	24H1305	2	Washer	13/32" X 13/16" X 0.065"
25	12H304	1	Lock Washer	3/8"
25	14H1076	1	Nut	3/8"
26	19H2552	1	CAP SCREW	3/8" X 1-1/8"
27	19H1731	1	Cap Screw	3/8" X 1"
27	12H304	1	Lock Washer	3/8"
28	19H2128	2	CAP SCREW	3/8" X 3"
29	19H2552	1	CAP SCREW	3/8" X 1-1/8"
30	24H1305	1	Washer	13/32" X 13/16" X 0.065"
31	14H1076	1	Nut	3/8"
31	12H304	1	Lock Washer	3/8"
22A	AR56230	1	SUPPORT	(SOUND-GARD BODY OR ROLL-GARD)
22B	AR54659	1	SUPPORT	-

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT (SYNCRO-RANGE AND CREEPER) (TRACTOR SERIAL NO. 013000- ) [03D02]
