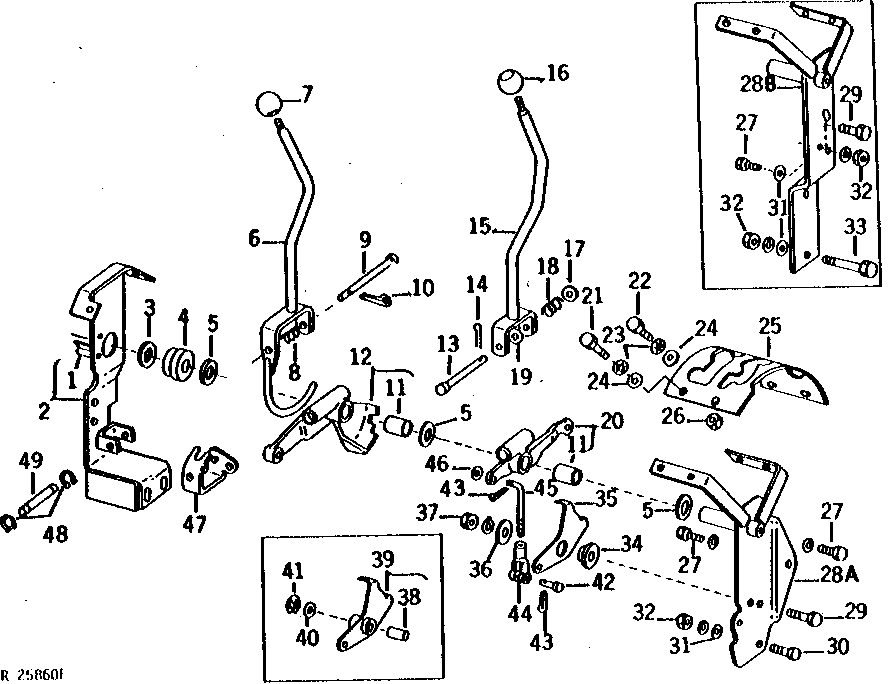

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT (QUAD-RANGE) [03D14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R57449	1	Pin Fastener	-
2	AR61901	1	SUPPORT	(SUB AR78904, (2) 19H2020, (2) 19H1905 AND (2) 14H785)
2	AR81245	1	SUPPORT	(A) (SUB RE33519)
2	AR70900	1	SUPPORT	(A) (NLA) (SUB AR81245)
2	AR78904	1	Support	-
2	AR61900	1	SUPPORT	(A) (NLA) (SUB AR70900, (2) 19H2020, (2) 19H1905 AND (2) 14H785)
3	24H1422	1	Shim	29/32" X 1-3/8" X .018"
4	R62927	1	Spacer	(ALSO ORDER 24H1422) (SUB FOR R50526 OR R56236)
5	R42127	3	Washer	-
6	AR88536	1	LEVER	(SUB FOR AR57112 OR AR82761)
7	R50864	1	KNOB	-
8	R41147	1	Spring	-
9	R31131	1	Pin Fastener	-
10	11M7021	1	Cotter Pin	0.157" X 0.984"
11	R26182	1	Bushing	-
12	AR61942	1	ARM	(MARKED R52179)
13	R53510	1	Pin Fastener	-
14	11M7021	1	Cotter Pin	0.157" X 0.984"
15	AR57113	1	LEVER	-
16	R53244	1	Knob	-
17	24M7096	1	Washer	10.500 X 18 X 1.600 MM
18	R53692	1	Spring	-
19	R56712	1	WASHER	(SUB FOR R53511)
20	AR61941	1	ARM	(MARKED R52180)
21	19H1813	4	CAP SCREW	5/16" X 5/8"
21	19H1813	4	CAP SCREW	(A) 5/16" X 5/8"
21	19H2020	2	Cap Screw	5/16" X 1/2"
21	19H2020	2	Cap Screw	(A) 5/16" X 1/2"
22	19H1905	2	Cap Screw	5/16" X 1"
22	19H1905	2	Cap Screw	(A) 5/16" X 1"
23	12M7032	4	Lock Washer	0.331"
24	24H1292	4	Washer	11/32" X 3/4" X 0.120"
25	R59711	1	GUIDE	(SUB FOR R52305)
26	14H785	2	Nut	5/16"
27	19H1731	3	Cap Screw	3/8" X 1"
27	12H304	3	Lock Washer	3/8"
29	19H1732	1	Cap Screw	3/8" X 1-1/4"
30	19H1731	2	Cap Screw	3/8" X 1"
31	24M7096	3	Washer	10.500 X 18 X 1.600 MM
32	12H304	4	Lock Washer	3/8"
32	14H1076	4	Nut	3/8"
33	19H2128	2	CAP SCREW	3/8" X 3"
34	R60670	1	Lock Washer	-
35	R60668	1	LATCH	-
36	R60671	1	Washer	-
37	14H1076	1	Nut	3/8"
37	12H304	1	Lock Washer	3/8"
38	R36119	1	Bushing	-
39	AR60641	1	LATCH	(NLA)
40	24H1341	1	Washer	17/32" X 15/16" X 0.060"
41	R26871	1	Snap Ring	-
42	R72660	1	Pin Fastener	(SUB FOR R662R)
43	11M7079	2	Cotter Pin	0.098" X 0.472"
44	R42282	1	Yoke	(SUB T54033 AND R82766)
45	R52304	1	HOOK BOLT	-
46	24H1136	1	Washer	11/32" X 11/16" X 0.065"
47	R55169	1	Arm	(SUB FOR R54206)
48	R72655	2	Snap Ring	(SUB FOR T12808)
49	R53213	1	Pin	-
28A	AR57115	1	SUPPORT	(A) (NLA) (SUB AR73577, R60668, R60670, R60671, 19H1732, 12H304 AND 14H1076)
28A	AR73577	1	Support	(A)
28B	AR56922	1	SUPPORT	(SUB AR73578, R60668, R60670 AND R60671)
28B	AR73578	1	SUPPORT	-

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT (QUAD-RANGE) [03D14]
