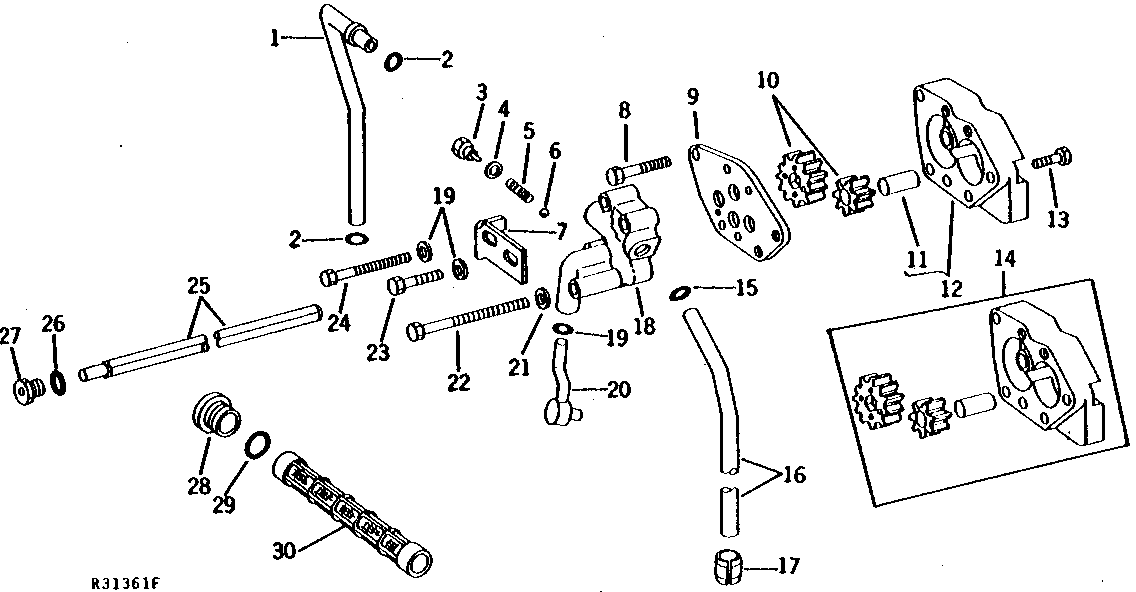

TRANSMISSION OIL PUMP (QUAD-RANGE AND SYNCRO-RANGE) [03D16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR65045	1	OIL LINE	-
1	R50848	1	TUBE	(SUB AR65045, R59533, R43252 AND R51383)
2	R56462	2	O-Ring	-
3	AR61217	1	PLUG	-
3	R51031	1	Fitting	-
3	R60755	1	Needle Roller	-
4	R51981	1	WASHER	-
5	R48951	1	SPRING	-
6	400R	1	Ball	-
7	R55644	1	CLAMP	(SUB R59533, R43252 AND R51383, THIS APPLICATION)
7	R59533	1	CLAMP	-
8	R43252	2	Cap Screw	-
9	R50847	1	COVER	(A) (SUB AR93313)
9	R51982	1	COVER	(B)
10	AR61290	1	GEAR	(USE WITH R50846 OR R51148)
11	R51029	1	Dowel Pin	-
12	AR62939	1	HOUSING	(A) (MARKED R50846) (SUB AR93313)
12	AR62938	1	HOUSING	(B) (MARKED R51148)
13	R41006	2	CAP SCREW	-
14	AR85538	1	HOUSING	(A) (MARKED R63709 OR R82163) (SUB AR93313) (INCREASED CAPACITY)
15	R56462	1	O-Ring	-
16	R47812	1	OIL LINE	(A)
16	R40831	1	OIL LINE	(B)
17	R65847	1	BUSHING	(USE WITH R58800)
18	AR61216	1	MANIFOLD	(A) (MARKED R51674) (SUB AR93313)
18	AR61215	1	MANIFOLD	(B) (MARKED R51983)
19	A3917R	1	O-Ring	-
20	AR50631	1	OIL LINE	(A)
20	AR40669	1	OIL LINE	(B)
21	24H1136	3	Washer	11/32" X 11/16" X 0.065"
22	R43256	1	CAP SCREW	-
23	R43252	1	Cap Screw	(SUB FOR R56458)
24	R51030	1	CAP SCREW	(SUB FOR R56459)
24	R51383	1	SELF-LOCKING SCREW	-
25	R50825	1	SHAFT	-
26	F3171R	1	O-Ring	-
27	AR72101	1	Fitting Plug	(USE WITH CAST R58800 ONLY)
27	AR54983	1	FITTING PLUG	-
28	R40147	1	FITTING	(SUB A4806R)
29	A4808R	1	WASHER	-
30	R53169	1	Screen	(NYLON)
30	AR26375	1	SCREEN	(STEEL)
..	RE228724	1	Transmission	(C) (D) (SUB FOR RE213662)

TRANSMISSION OIL PUMP (QUAD-RANGE AND SYNCRO-RANGE) [03D16]
