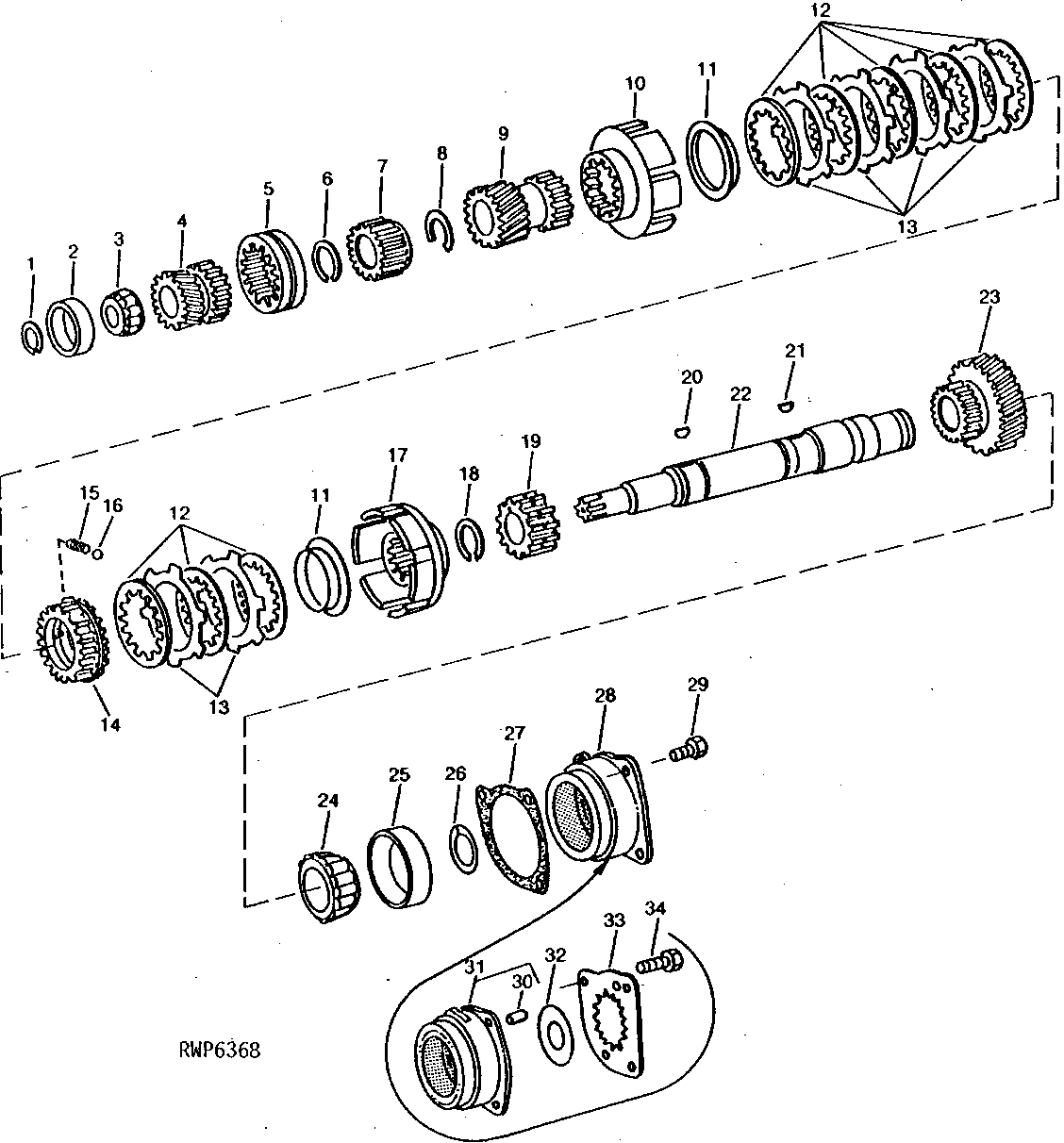

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE) (TRACTOR SERIAL NO. 037596- ) [03C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26221	1	SNAP RING	2.0MM (.079")
1	R26220	1	SNAP RING	1.9MM (.076")
1	R26223	1	SNAP RING	2.2MM (.085")
1	R26222	1	SNAP RING	2.1MM (.082")
2	JD7291	1	BEARING CUP	-
3	JD8978	1	BEARING CONE	-
4	R65342	1	PINION	(REVERSE RANGE) (SUB FOR R62989)
5	R67387	1	SHIFT COLLAR	(RANGE) (SUB FOR R62992)
6	R26218	1	Snap Ring	-
7	R33711	1	SHIFT COLLAR	(REVERSE RANGE)
8	R33405	1	SNAP RING	-
9	R59641	1	PINION	(LOW RANGE)
10	R63073	1	BRAKE DRUM	-
11	R63070	2	ROUND RETAINER	-
12	RE36170	8	Disk With Inner Spline	(SUB FOR AR77819)
13	R63069	6	CLUTCH PLATE	-
14	RE227962	1	Synchronizer	(SUB FOR AR77817)
15	R63074	4	SPRING	-
16	R63075	4	Ball	-
17	R63072	1	DRUM	-
18	R26218	1	Snap Ring	-
19	R62806	1	SHIFT COLLAR	-
20	26H77	1	Shaft Key	3/16" X 3/4"
21	26H77	1	Shaft Key	3/16" X 3/4"
22	R52325	1	SHAFT	-
23	R41218	1	PINION	(HIGH RANGE)
24	JD8919	1	BEARING CONE	-
25	JD8223	1	Bearing Cup	-
26	R26214	1	SNAP RING	1.9MM (.076") (SUB R49430)
26	R26215	1	SNAP RING	2.0MM (.079") (SUB R49431)
26	R26216	1	SNAP RING	2.1MM (.082") (SUB R49432)
26	R26217	1	SNAP RING	2.2MM (.085") (SUB R49433)
27	R26233	1	SHIM	0.15MM (.006")
27	R26234	1	SHIM	0.25MM (.010")
28	R51797	1	HOUSING	-
29	R57725	3	Screw	-
30	R39253	2	DOWEL PIN	(A)
31	AR64943	1	HOUSING	(A) (MARKED R55552)
32	R55546	1	WASHER	(A)
33	R55658	1	PLATE	(A)
34	R41041	3	CAP SCREW	(A)
..	RE227995	1	SYNCHRONIZER	(SUB FOR AR77815) SYNCHRONIZER REPAIR
..	RE228724	1	Transmission	(B) (C) (SUB FOR RE213662)

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE) (TRACTOR SERIAL NO. 037596- ) [03C05]
