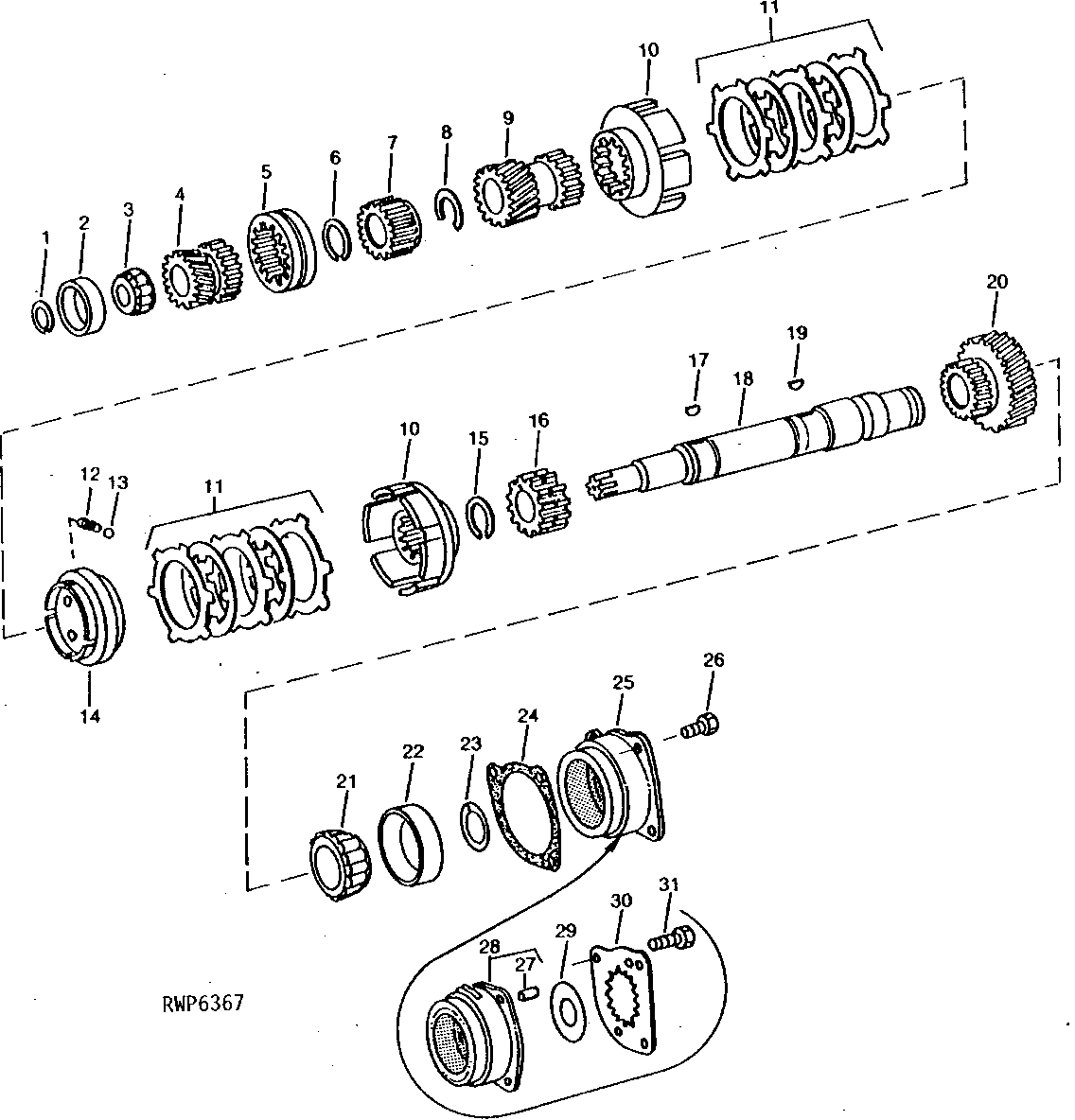

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE) (TRACTOR SERIAL NO. -037595) [03C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26221	1	SNAP RING	2.01MM (.079")
1	R26220	1	SNAP RING	1.93MM (.076")
1	R26223	1	SNAP RING	2.16MM (.085")
1	R26222	1	SNAP RING	2.08MM (.082")
2	JD7291	1	BEARING CUP	-
3	JD8978	1	BEARING CONE	-
4	R65342	1	PINION	(REVERSE RANGE) (SUB FOR R44638 OR R62989)
5	R67387	1	SHIFT COLLAR	(RANGE) (SUB FOR R26238 OR R62992)
6	R26218	1	Snap Ring	-
7	R33711	1	SHIFT COLLAR	(REVERSE RANGE)
8	R33405	1	SNAP RING	-
9	R59641	1	PINION	(LOW RANGE) (SUB FOR R51518)
10	R31026	2	DRUM	-
11	RE37119	2	DISK	(SUB FOR AR44997, AR48673 OR AR69154) (SET OF 3 DISKS, WITH FACINGS, AND 2 PLATES)
12	R59860	4	SPRING	(SUB FOR R27730)
13	A4742R	4	Ball	-
14	R31028	1	SYNCHRONIZER	-
15	R26218	1	Snap Ring	-
16	R33383	1	SHIFT COLLAR	-
17	26H77	1	Shaft Key	3/16" X 3/4"
18	R52325	1	SHAFT	-
19	26H77	1	Shaft Key	3/16" X 3/4"
20	R41218	1	PINION	(HIGH RANGE)
21	JD8919	1	BEARING CONE	-
22	JD8223	1	Bearing Cup	-
23	R26214	1	SNAP RING	1.93MM (.076") (SUB R49430)
23	R26215	1	SNAP RING	2.01MM (.079") (SUB R49431)
23	R26216	1	SNAP RING	2.08MM (.082") (SUB R49432)
23	R26217	1	SNAP RING	2.16MM (.085") (SUB R49433)
24	R26234	1	SHIM	0.25MM (.010")
24	R26233	1	SHIM	0.15MM (.006")
25	R51797	1	HOUSING	-
26	R57725	3	Screw	(SUB FOR R40835)
27	R39253	2	DOWEL PIN	(A)
28	AR64943	1	HOUSING	(A) (MARKED R55552)
29	R55546	1	WASHER	(A)
30	R55658	1	PLATE	(A)
31	R41041	3	CAP SCREW	(A)
..	RE227995	1	SYNCHRONIZER	(SUB FOR AR77815) SYNCHRONIZER REPAIR
..	RE228724	1	Transmission	(B) (C) (SUB FOR RE213662)

TRANSMISSION DRIVE SHAFT ASSEMBLY (SYNCRO-RANGE) (TRACTOR SERIAL NO. -037595) [03C03]

Нет текстового описания
