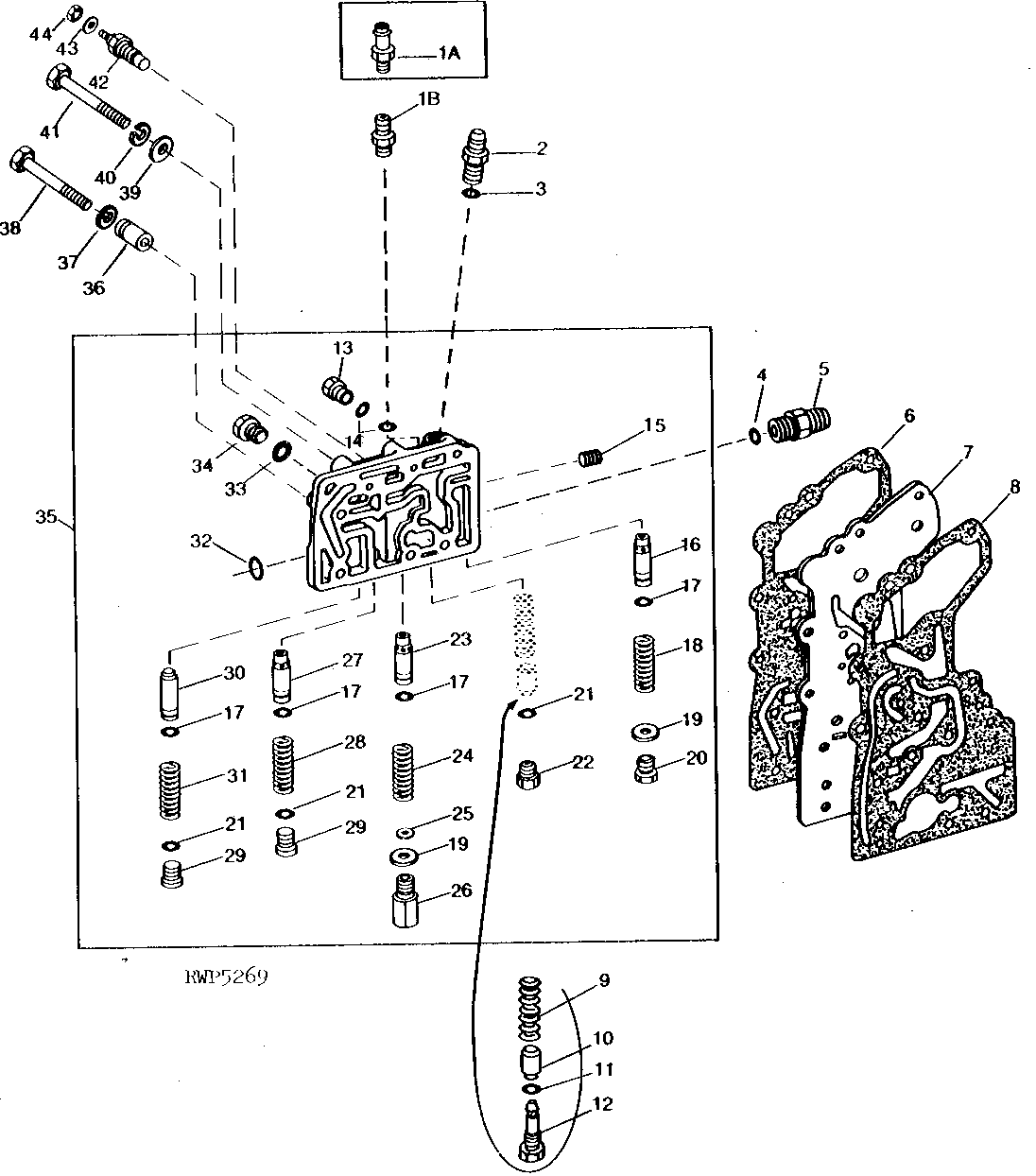

TRANSMISSION CLUTCH REGULATING VALVE (POWER SHIFT) [03E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	R27270	1	Fitting	-
3	R26906	1	O-Ring	-
4	F3171R	1	O-Ring	-
5	R27267	1	Fitting	-
6	R99381	1	GASKET	(SUB FOR R56826 OR T67028 OR R92483)
7	R56829	1	PLATE	-
8	R94331	1	GASKET	(SUB FOR R46815 OR T67029)
9	F3322R	1	SPRING	-
10	R60092	1	CHECK VALVE	CHECK
11	R26375	1	O-Ring	-
12	R60396	1	FITTING	-
13	R27094	1	Drain Plug	-
14	R26286	2	O-Ring	-
15	15H571	1	PIPE PLUG	3/8"
16	R63980	1	Valve	OIL COOLER RELIEF VALVE
17	R28776	4	O-Ring	-
18	R56782	1	Compression Spring	-
19	R1742R	2	WASHER	-
20	R52589	1	FITTING PLUG	-
21	R26375	3	O-Ring	-
22	R39112	1	Fitting	-
23	R63980	1	Valve	PRESSURE
24	T60314	1	Compression Spring	-
25	R33521	1	Shim	0.76MM (.030")
26	R51577	1	FITTING PLUG	-
27	R63980	1	Valve	TRANSMISSION LUBE OIL
28	R39133	1	SPRING	-
29	R33138	2	Fitting	-
30	R56785	1	Pressure Relief Valve	OIL FILTER BYPASS
31	R56784	1	SPRING	-
32	B2762R	1	O-Ring	-
33	R26286	1	O-Ring	-
34	R27094	1	Drain Plug	-
35	AT58342	1	VALVE	(MARKED R63979) (SUB FOR AR82534, AR89394 OR AR78100)
36	R52140	1	SPACER	-
37	12H293	1	Lock Washer	7/16"
38	19H2058	1	Cap Screw	7/16" X 3-3/4"
39	24H1325	6	Washer	15/32" X 59/64" X 0.065"
40	12H293	6	Lock Washer	7/16"
41	19H1978	3	Cap Screw	7/16" X 1-1/2"
41	19H2347	3	Cap Screw	7/16" X 3"
41	19H2055	3	CAP SCREW	7/16" X 2-1/4"
41	19H1828	3	CAP SCREW	7/16" X 4"
42	AR61610	1	PRESSURE SWITCH	TEMPERATURE GAUGE
43	24H1283	1	Washer	7/32" X 1/2" X 0.049"
44	14H631	1	Nut	0.190"
1A	R65684	1	FITTING	-
1B	R27272	1	Fitting	-

TRANSMISSION CLUTCH REGULATING VALVE (POWER SHIFT) [03E19]
