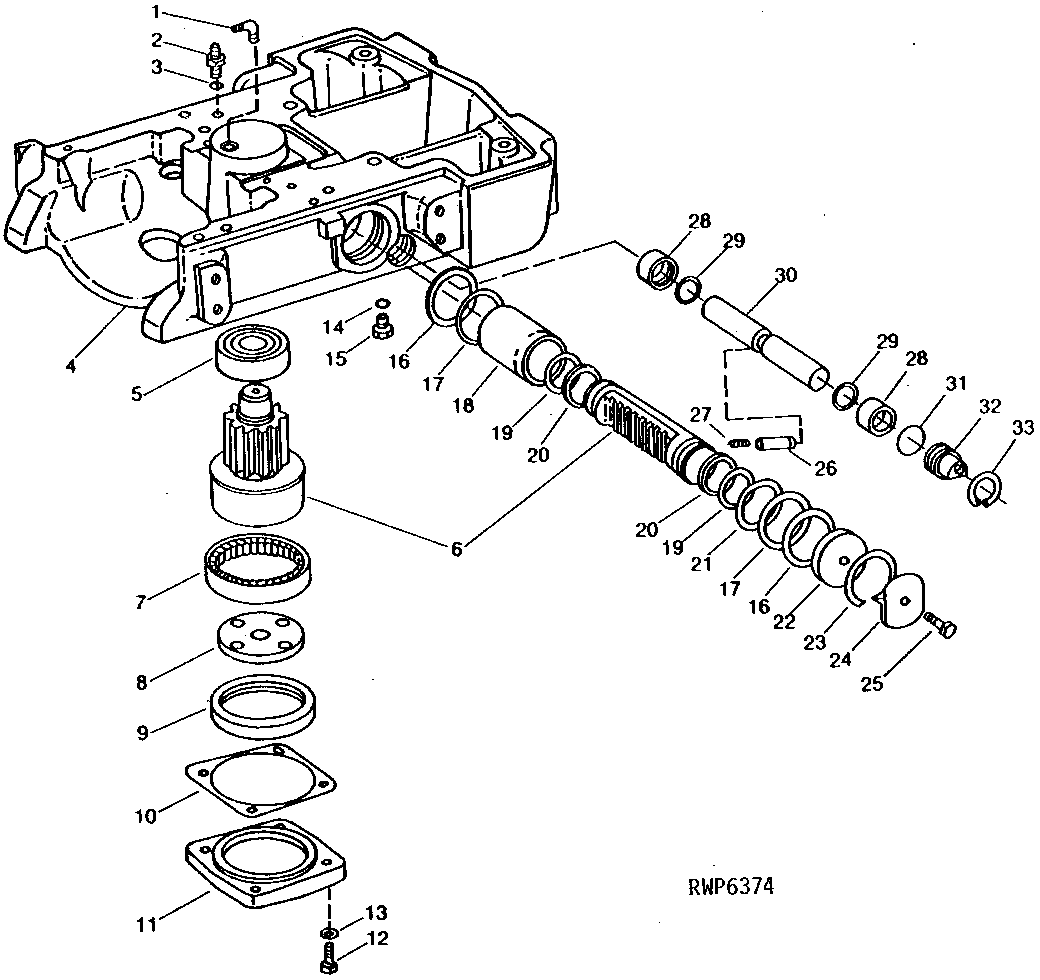

STEERING MOTOR (CONVERTIBLE FRONT AXLE) (TRACTOR SERIAL NO. 015995- ) [03J15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR74095	1	ELBOW FITTING	(SUB FOR T28051)
2	R27212	2	Fitting	-
3	R26448	2	O-Ring	-
4	AR64961	1	SUPPORT	(MARKED R54820, R61315 OR R66154) (SUB AR90727, (2) R69478, (2) R69480, (2) R26543, (2) R69482 AND (2) 19H1978)
5	JD9439	1	Ball Bearing	-
6	AR87604	1	SPINDLE	(MATCHED SET) (SUB FOR AR70600) (NLA)
7	JD9930	1	CYLINDRICAL ROLLER BEARING	-
8	R67295	1	WASHER	-
9	AR58512	1	SEAL	(ALSO ORDER R67295) (SUB AR92557)
10	R100337	1	GASKET	(SUB FOR R51472)
11	R51471	1	BEARING HOUSING W/O BEARING	-
12	19H2929	4	Screw	3/8" X 1.120"
13	12H304	4	Lock Washer	3/8"
14	R26448	2	O-Ring	-
15	R27218	2	Fitting Plug	-
16	R49975	4	BACK-UP RING	-
17	R131817	4	O-Ring	(SUB FOR R41721)
18	R63001	2	SLEEVE	(SUB FOR R50276)
19	R65541	2	Washer	(ALSO ORDER R65542) (SUB FOR R61909 OR R26863, THIS APPLICATION)
20	R65542	2	Washer	(ALSO ORDER R65541) (SUB FOR R61910 OR R49976, THIS APPLICATION)
21	R49804	2	LOCK WASHER	-
22	R68284	2	PLUG	(SUB FOR R50275)
23	R49805	2	SNAP RING	-
24	R51120	2	WASHER	-
25	19H1800	2	Cap Screw	3/8" X 1-1/2"
26	R69389	1	Pin	(SUB FOR R59543)
27	R41770	1	Spring	-
28	R55409	2	SHAFT	(USE WITH R54820)
28	R61316	2	Sleeve	(USE WITH R61315 OR R66154)
29	U10289	2	O-Ring	-
30	R55196	1	Piston	-
31	R31378	2	O-Ring	-
32	R61271	2	PLUG	(SUB FOR R55407, THIS APPLICATION)
33	R55408	2	Wear Ring	-

STEERING MOTOR (CONVERTIBLE FRONT AXLE) (TRACTOR SERIAL NO. 015995- ) [03J15]
