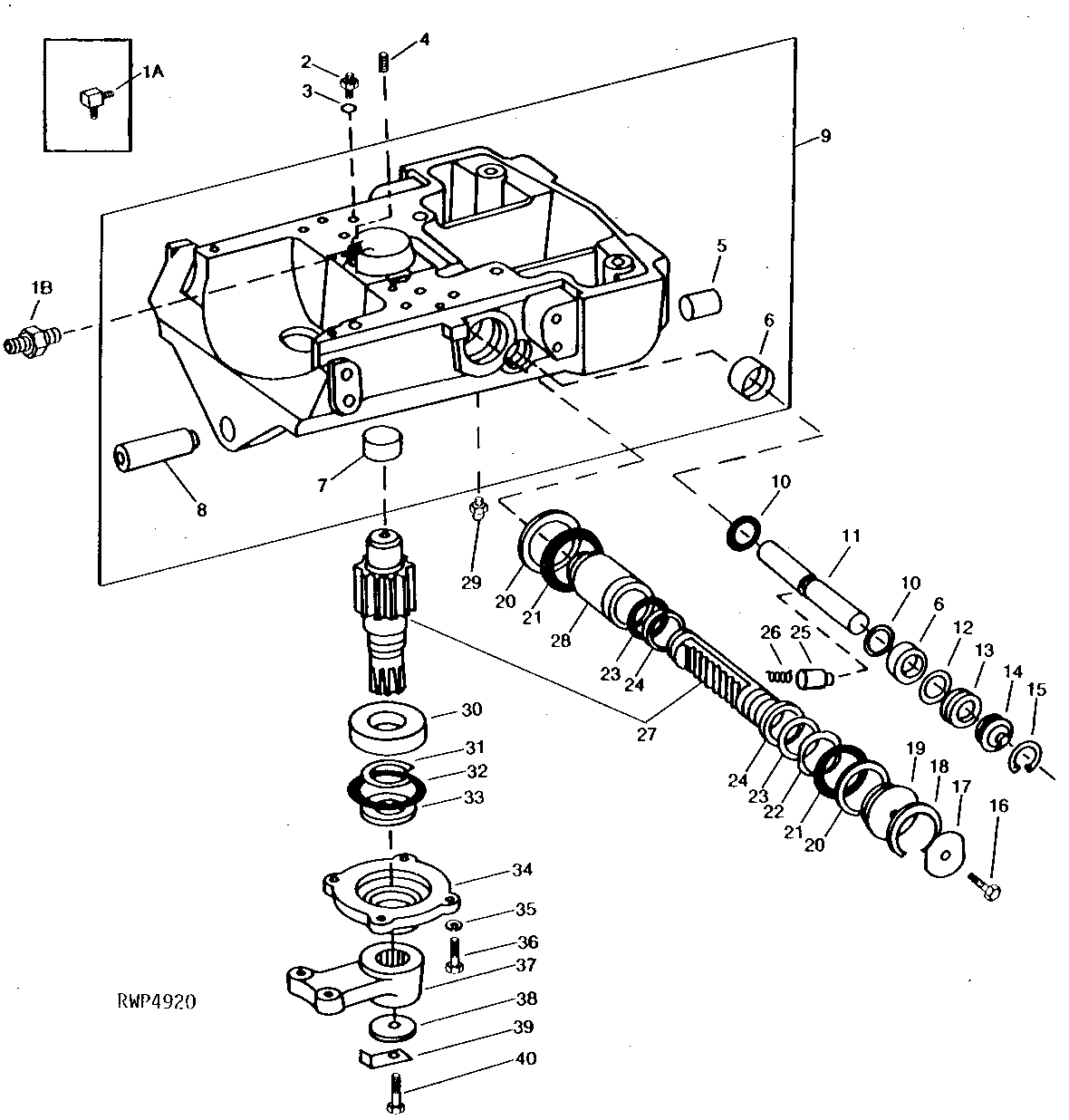

STEERING MOTOR (ADJUSTABLE FRONT AXLE) (TRACTOR SERIAL NO. 019559- ) [03J13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	R27212	2	Fitting	-
3	R26448	2	O-Ring	-
4	15H558	1	Pipe Plug	1/8"
5	R65827	1	BUSHING	(SUB FOR R51376, THIS APPLICATION)
6	R61316	2	Sleeve	(USE WITH R61314 OR R66153)
6	R55409	2	SHAFT	(USE WITH R54760)
7	R28277	1	BUSHING	-
8	R51798	1	BUSHING	-
9	AR87108	1	SUPPORT	(MARKED R54810, R61314, R66153 OR R67032) (SUB FOR AR63326) (SUB AR90730, (2) R26543, (2) R69478, (2) R69480, (2) R69482, (2) 19H1978)
10	U10289	2	O-Ring	-
11	R55196	1	Piston	-
12	R31378	2	O-Ring	-
13	R71095	2	Washer	(SUB FOR R65699)
14	R61511	2	Plug	(SUB FOR R55407, THIS APPLICATION)
15	R55408	2	Wear Ring	-
16	19H1800	2	Cap Screw	3/8" X 1-1/2"
17	R51120	2	WASHER	-
18	R49805	2	SNAP RING	-
19	R68284	2	PLUG	(SUB FOR R50275)
20	R49975	4	BACK-UP RING	-
21	R131817	4	O-Ring	(SUB FOR R41721)
22	R49804	2	LOCK WASHER	-
23	R65541	2	Washer	(ALSO ORDER R65542) (SUB FOR R61909 OR R26863, THIS APPLICATION)
24	R65542	2	Washer	(ALSO ORDER R65541) (SUB FOR R61910 OR R49976, THIS APPLICATION)
25	R69389	1	Pin	(SUB FOR R59543)
26	R41770	1	Spring	-
27	AR70457	1	KIT	(MATCHED SET) (SUB RE47609)
28	R63001	2	SLEEVE	(SUB FOR R50276)
29	JD7798	1	Lubrication Fitting	-
30	JD9320	1	Ball Bearing	-
31	F1334R	1	SNAP RING	-
32	C11884	1	O-Ring	-
33	AT49215	1	SEAL	(SUB FOR T19802)
34	R50104	1	Bearing Housing W/O Bearing	-
35	12H304	4	Lock Washer	3/8"
36	19H1800	4	Cap Screw	3/8" X 1-1/2"
37	R50074	1	ARM	(SUB R61158)
37	R61158	1	STEERING ARM	-
37	R52793	1	STEERING ARM	(POWER FRONT WHEEL DRIVE)
38	R20136	1	Washer	-
39	R50075	1	LOCK PLATE	-
40	19H1782	1	Cap Screw	3/4" X 2-1/4"
1A	AR74095	1	ELBOW FITTING	(SUB FOR T28051) (SUB R39832, THIS APPLICATION)
1B	R39832	1	Adapter Fitting	(SUB FOR AR74095, THIS APPLICATION)

STEERING MOTOR (ADJUSTABLE FRONT AXLE) (TRACTOR SERIAL NO. 019559- ) [03J13]

Нет текстового описания
