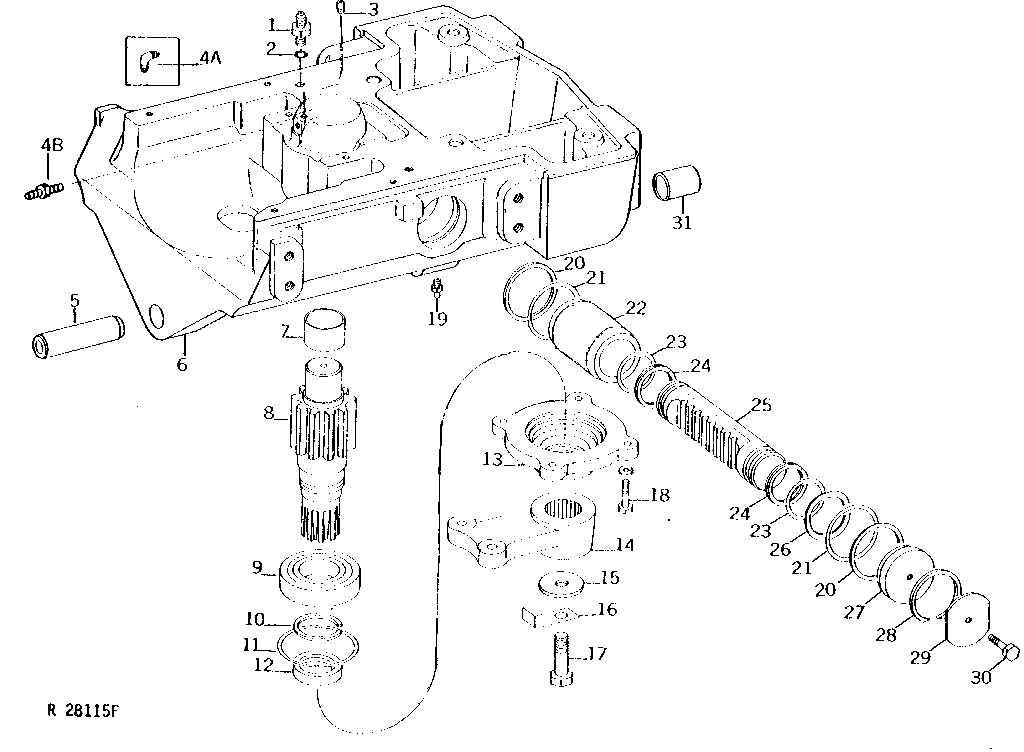

STEERING MOTOR (ADJUSTABLE FRONT AXLE) (TRACTOR SERIAL NO. -019558) [03I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27212	2	Fitting	-
2	R26448	2	O-Ring	-
3	15H558	1	Pipe Plug	1/8"
5	R51798	1	BUSHING	-
6	AR67473	1	SUPPORT	(MARKED R49600 OR R56592) (SUB FOR AR58752) (INCLUDES R51798, R28277 AND R65827) (NLA)
7	R28277	1	BUSHING	-
8	R50105	1	SPINDLE	-
9	JD9320	1	Ball Bearing	-
10	F1334R	1	SNAP RING	-
11	C11884	1	O-Ring	(SUB FOR R49803)
12	AT49215	1	SEAL	(SUB FOR T19802)
13	R50104	1	Bearing Housing W/O Bearing	-
14	R61158	1	STEERING ARM	(SUB FOR R50074)
14	R52793	1	STEERING ARM	(POWER FRONT WHEEL DRIVE)
15	R20136	1	Washer	-
16	R50075	1	LOCK PLATE	-
17	19H1782	1	Cap Screw	3/4" X 2-1/4"
18	19H1800	4	Cap Screw	3/8" X 1-1/2"
18	12H304	4	Lock Washer	3/8"
19	JD7798	1	Lubrication Fitting	-
20	R49975	4	BACK-UP RING	-
21	R131817	4	O-Ring	(SUB FOR R41721)
22	R63001	2	SLEEVE	(SUB FOR R50276)
23	R65541	2	Washer	(ALSO ORDER R65542) (SUB FOR R61909 OR R26863, THIS APPLICATION)
24	R65542	2	Washer	(ALSO ORDER R65541) (SUB FOR R61910 OR R49976, THIS APPLICATION)
25	R50274	1	PISTON	-
26	R49804	2	LOCK WASHER	-
27	R68284	2	PLUG	(SUB FOR R50275)
28	R49805	2	SNAP RING	-
29	R51120	2	WASHER	-
30	19H1800	2	Cap Screw	3/8" X 1-1/2"
31	R65827	1	BUSHING	(SUB FOR R51376)
4A	AR74095	1	ELBOW FITTING	(SUB FOR T28051) (SUB R39832, THIS APPLICATION)
4B	R39832	1	Adapter Fitting	(SUB FOR AR74095, THIS APPLICATION)

STEERING MOTOR (ADJUSTABLE FRONT AXLE) (TRACTOR SERIAL NO. -019558) [03I18]
