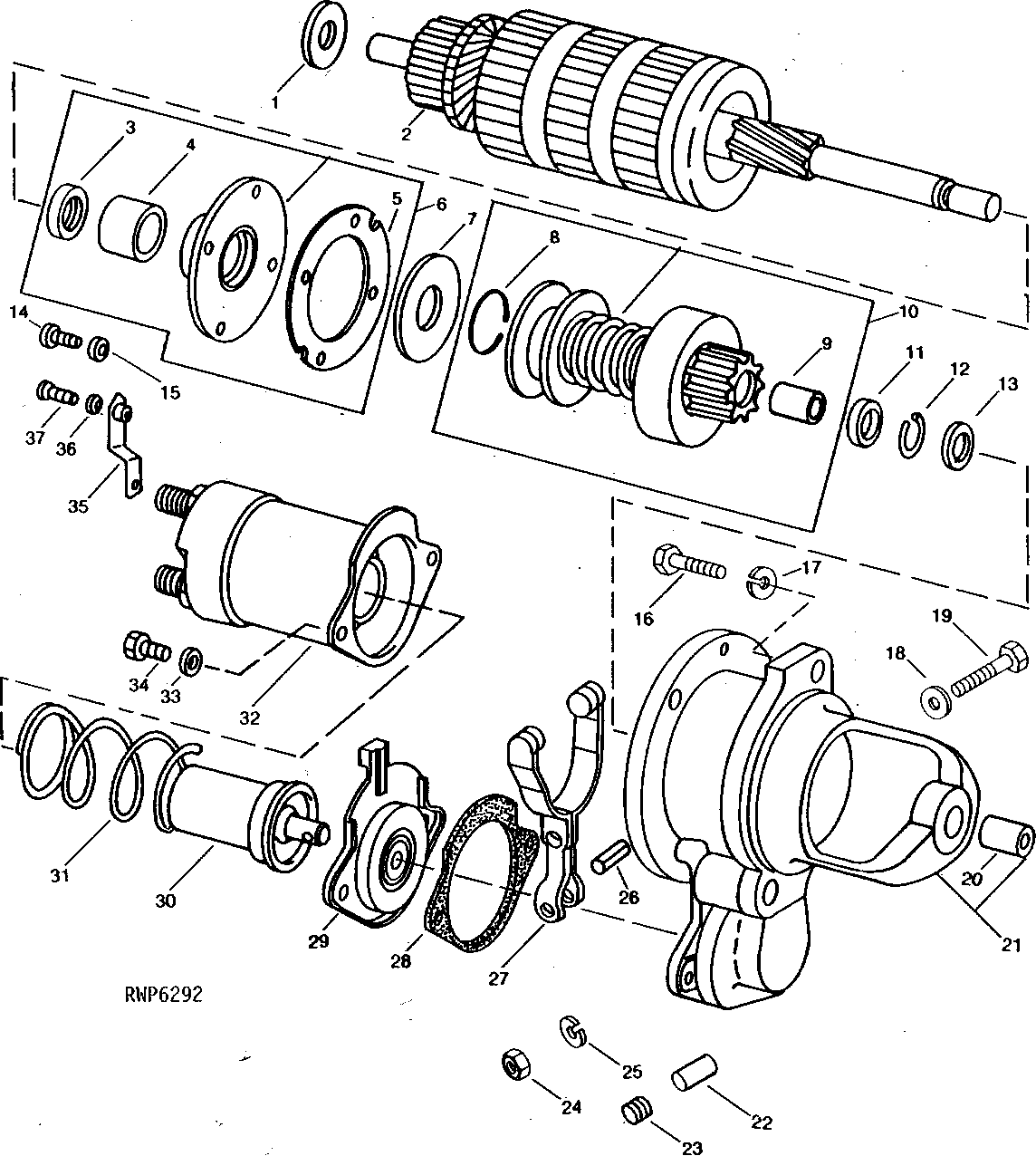

STARTER DRIVE HOUSING, SOLENOID SWITCH, AND ARMATURE (AR60085) [02D08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R11096	1	WASHER	-
2	AT15138	1	ARMATURE	-
3	AR62965	1	Seal	-
4	R54584	1	Bushing	-
5	R54585	1	Gasket	-
6	AR62967	1	BEARING	-
7	R11095	1	WASHER	-
8	R11118	1	WIRE	-
9	1873796	1	BUSHING	-
10	AR57094	1	DRIVE	-
11	R11116	1	SPACER	-
12	R11117	1	SNAP RING	-
13	R11080	1	WASHER	-
14	21H1127	4	SCREW	0.190" X 7/16"
15	12M7060	4	Washer	0.209"
16	19H2552	3	CAP SCREW	3/8" X 1-1/8"
17	12H304	3	Lock Washer	3/8"
18	AR62966	1	Washer	-
19	T11672	1	CAP SCREW	-
20	T17987	1	BUSHING	-
21	AR63943	1	HOUSING	-
22	R40337	1	WICK	-
23	15H566	2	PIPE PLUG	1/8"
24	T11682	1	NUT	-
25	12H303	1	Lock Washer	5/16"
26	34H279	1	SPRING PIN	3/16" X 13/16"
27	T18113	1	SHIFTER	-
28	R53108	1	Gasket	-
29	R55162	1	BOOT	-
30	AT15147	1	PLUNGER	-
31	T11675	1	SPRING	-
32	AR68304	1	SOLENOID	(DELCO-REMY) (SUB FOR R11240)
32	SE501441	1	SOLENOID	(REMANUFACTURED FOR TY6690)
32	TY6690	1	SOLENOID	(REMANUFACTURED)
33	12H302	2	Lock Washer	1/4"
34	21H1310	2	SCREW	1/4" X 1/2"
35	R39877	1	BRACKET	-
36	12M7060	1	Washer	0.209"
37	T19610	1	CAP SCREW	-
..	AR60085	1	STARTER MOTOR	(SUB TY6722)
..	TY6722	1	STARTER MOTOR	(REMANUFACTURED) (SUB FOR AR60085)

STARTER DRIVE HOUSING, SOLENOID SWITCH, AND ARMATURE (AR60085) [02D08]

Нет текстового описания
