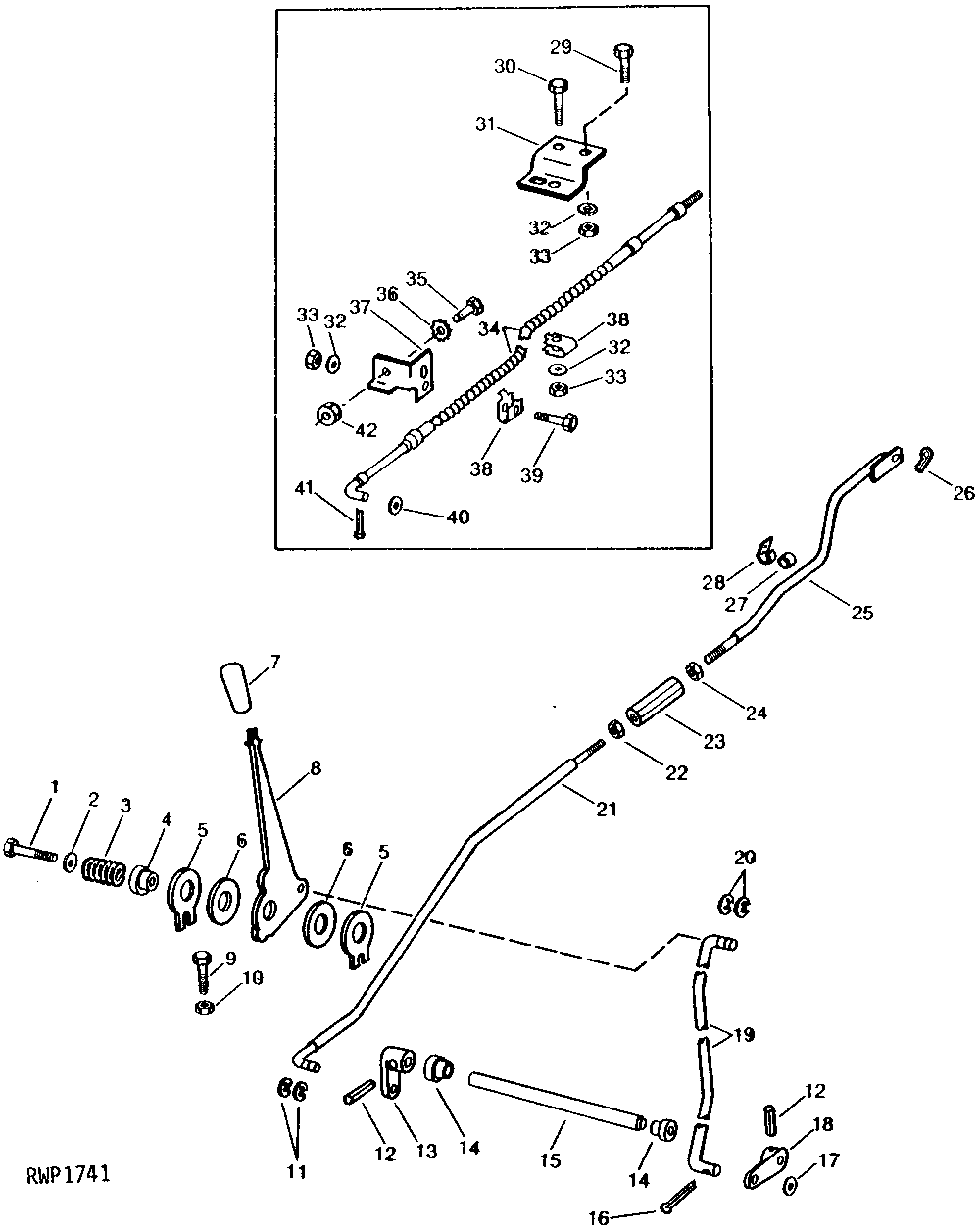

SPEED CONTROL LEVER AND LINKAGES (DIESEL) [01F12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41920	1	Cap Screw	-
2	24M7096	1	Washer	10.500 X 18 X 1.600 MM
3	R31271	1	Compression Spring	-
4	R50227	1	Round Retainer	-
5	R52117	2	Washer	-
6	R50226	2	WASHER	(SUB FOR R39985, THIS APPLICATION) (SUB FOR R105814)
7	R137740	1	Knob	(SUB FOR R50506, THIS APPLICATION) (SUB R161383)
8	R50505	1	LEVER	(SUB R75078)
9	19H2915	1	CAP SCREW	5/16" X 1-1/4"
10	14H611	1	Nut	5/16"
11	R72654	2	Snap Ring	(SUB FOR R27507)
12	34H279	2	SPRING PIN	3/16" X 13/16"
13	R51930	1	Arm	-
14	R41076	2	Grommet	-
15	R50219	1	Pin Fastener	-
16	11M7021	1	Cotter Pin	0.157" X 0.984"
17	24H1289	1	Washer	21/64" X 5/8" X 0.049"
18	R50225	1	ARM	-
19	R54487	1	ROD	-
19	R54424	1	ROD	(LOW PROFILE)
20	R72653	2	Snap Ring	(A) (SUB FOR M2394T)
21	R52563	1	ROD	-
22	14H649	1	Nut	1/4"
23	R52422	1	Turnbuckle	-
24	14H1025	1	Nut	1/4"
25	AR58183	1	SHIFTER ROD	-
26	R47646	1	Spring Locking Pin	-
27	R45537	1	Grommet	-
28	R53302	1	BRACKET	-
29	19H1813	2	CAP SCREW	(A) 5/16" X 5/8"
30	19H1849	1	Cap Screw	(A) 5/16" X 1-1/4"
31	R53301	1	BRACKET	(A)
32	12H303	4	Lock Washer	(A) 5/16"
33	14H785	4	Nut	(A) 5/16"
34	RE53286	1	PUSH PULL CABLE	(A) (SUB FOR AR56685, THIS APPLICATION)
35	19H2038	1	Cap Screw	(A) 3/8" X 1/2"
36	12H310	1	Lock Washer	(A) 3/8"
37	R51784	1	BRACKET	(A)
38	R26870	2	CLAMP	(A)
39	19H1849	1	Cap Screw	(A) 5/16" X 1-1/4"
40	B1664R	1	SHIM	(A)
41	11M7077	1	Cotter Pin	(A) 1.600 X 25 MM

SPEED CONTROL LEVER AND LINKAGES (DIESEL) [01F12]
