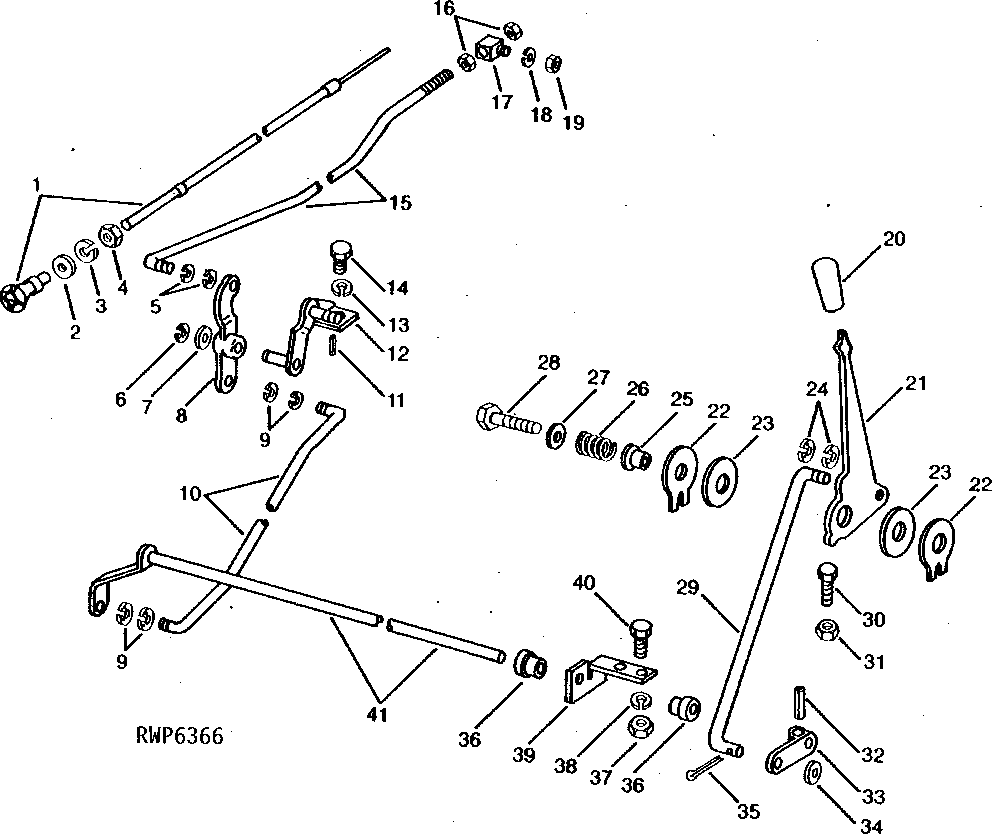

SPEED CONTROL LEVER AND LINKAGE (GASOLINE) [01F10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR56686	1	PUSH PULL CABLE	-
2	24M7096	1	Washer	10.500 X 18 X 1.600 MM
3	12H304	1	Lock Washer	3/8"
4	14H774	1	Nut	3/8"
5	R72654	2	Snap Ring	(SUB FOR R27507)
6	R26871	1	Snap Ring	-
7	24H1341	1	Washer	17/32" X 15/16" X 0.060"
8	R53402	1	LEVER	-
9	R72653	4	Snap Ring	(SUB FOR M2396T)
10	R53400	1	ROD	(NLA)
11	34H308	1	Spring Pin	1/4" X 1/2"
12	AR59659	1	BRACKET	-
13	12H304	1	Lock Washer	3/8"
14	19H2021	1	Cap Screw	3/8" X 5/8"
15	R53399	1	ROD	-
16	14H850	2	NUT	1/4"
16	24H1287	2	Washer	9/32" X 5/8" X 0.065"
17	AH77100	1	Ball Joint	(SUB FOR AA5302R)
18	12H302	1	Lock Washer	1/4"
19	14H649	1	Nut	1/4"
20	R137740	1	Knob	(SUB FOR R50506, THIS APPLICATION) (SUB R161383)
21	R50505	1	LEVER	(SUB R75078)
22	R52117	2	Washer	-
23	R50226	2	WASHER	(SUB FOR R39985, THIS APPLICATION) (SUB R105814)
24	R72653	2	Snap Ring	(SUB FOR M2396T)
25	R50227	1	Round Retainer	-
26	R31271	1	Compression Spring	-
27	24M7096	1	Washer	10.500 X 18 X 1.600 MM
28	R41920	1	Cap Screw	-
29	R54487	1	ROD	-
30	19H2915	1	CAP SCREW	5/16" X 1-1/4"
31	14H611	1	Nut	5/16"
32	34H279	1	SPRING PIN	3/16" X 13/16"
33	R50225	1	ARM	-
34	24H1289	1	Washer	21/64" X 5/8" X 0.049"
35	11M7021	1	Cotter Pin	0.157" X 0.984"
36	R41076	2	Grommet	-
37	14H785	2	Nut	5/16"
38	12H303	2	Lock Washer	5/16"
39	R50733	1	BRACKET	(NLA)
39	R52817	1	BRACKET	(ROLL-GARD) (NLA)
40	19H118	2	CAP SCREW	5/16" X 1"
41	AR54893	1	ROD	-

SPEED CONTROL LEVER AND LINKAGE (GASOLINE) [01F10]

Нет текстового описания
