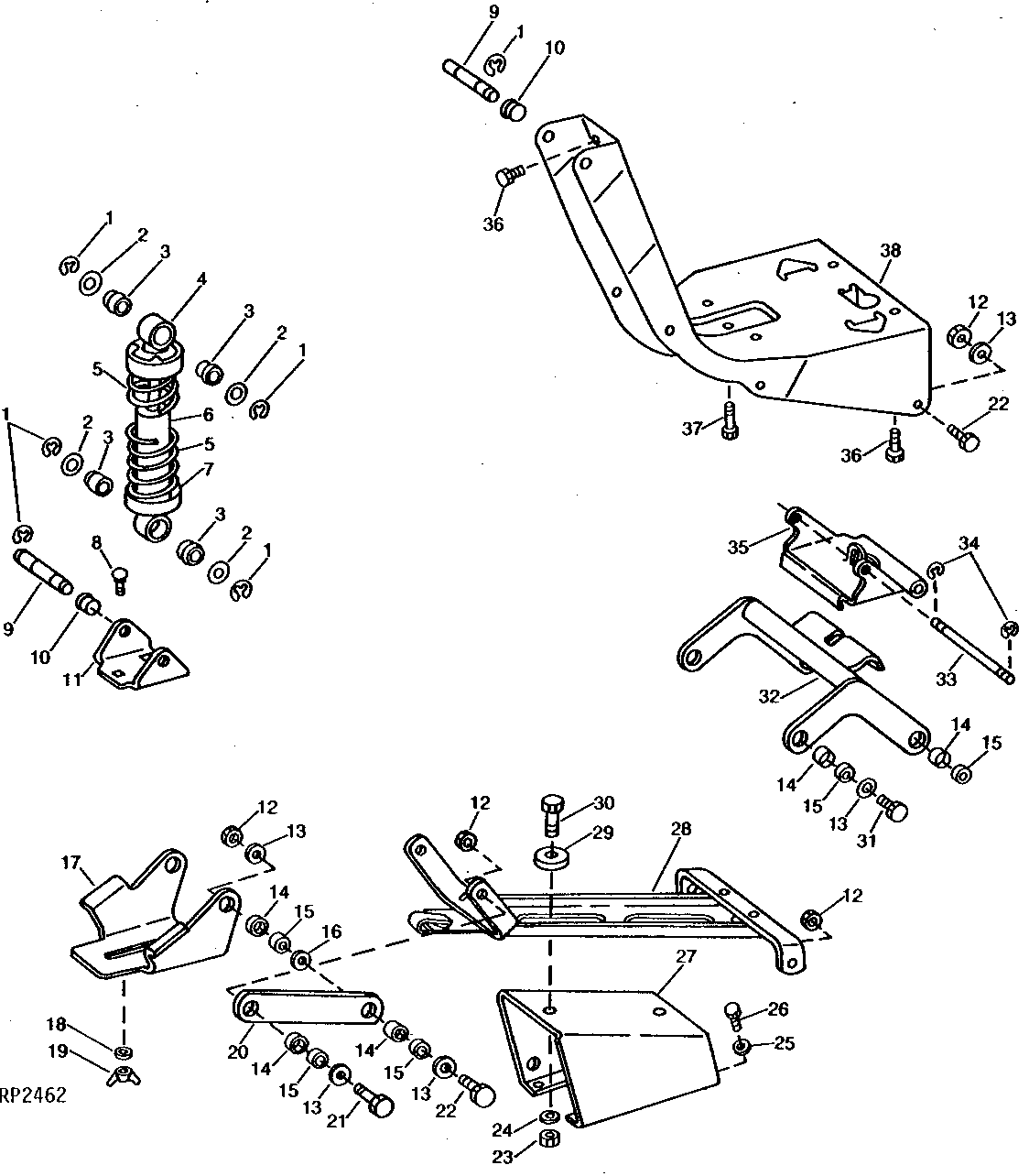

SEAT SUSPENSION (LOW PROFILE) [05D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F2863R	8	Snap Ring	-
2	R1836R	4	Washer	-
3	R26832	4	BUSHING	-
4	R27442	1	CAP	(SUB R125989)
5	R26877	1	SPRING	-
6	AR71976	1	SHOCK ABSORBER	(SUB FOR AR26529 OR AR69854) (SUB RE62234 AND R125989)
7	R26879	1	CAP	-
8	03H1540	2	Bolt	5/16" X 3/4"
9	T21923	2	SHAFT	-
10	T21926	2	BUSHING	-
11	T23237	1	SUPPORT	-
12	14H1076	8	Nut	3/8"
13	R27441	10	Washer	-
14	R27116	10	BUSHING	-
15	R27440	10	BUSHING	-
16	24H1309	2	Washer	13/32" X 1-1/16" X 0.120"
17	AT20441	1	LINK	-
18	24H1290	2	Washer	21/64" X 3/4" X 0.035"
19	14H819	2	Wing Nut	5/16", (SUB FOR R1069R)
20	AT20438	2	LINK	-
21	19H1765	2	Cap Screw	3/8" X 1-3/4"
22	19H1732	4	Cap Screw	3/8" X 1-1/4"
23	14H1040	2	Nut	1/2"
24	12H301	2	Lock Washer	1/2"
25	12H304	4	Lock Washer	3/8"
26	19H1731	4	Cap Screw	3/8" X 1"
27	R54416	1	SUPPORT	-
28	AT19923	1	SUPPORT	(SUB AT33094 AND T23227)
29	M557T	2	Washer	-
30	19H1721	2	CAP SCREW	1/2" X 1-1/2"
31	19H1731	2	Cap Screw	3/8" X 1"
32	AT26122	1	LINK	(SUB AT26123 AND (4) R27116)
33	T21922	1	PIN	-
34	R72655	2	Snap Ring	(SUB FOR T12808)
35	T27971	1	LATCH	-
36	19H1936	4	Cap Screw	3/8" X 3/4"
37	19H1732	1	Cap Screw	3/8" X 1-1/4"
38	T21920	1	FRAME	-
