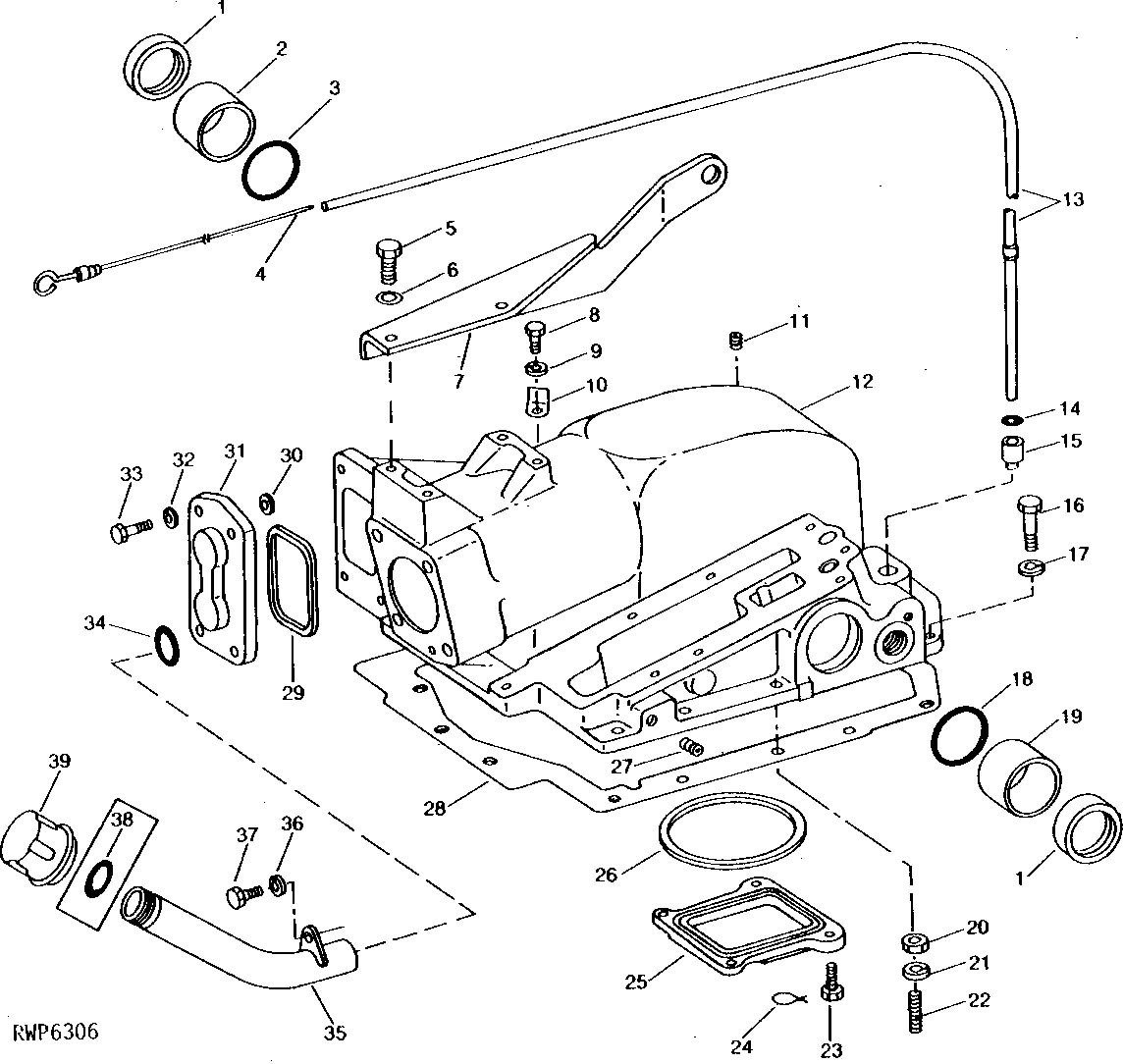

ROCKSHAFT HOUSING WITH BUSHING AND OIL SEALS [04C20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AF2643R	2	SEAL	-
2	R26842	1	BUSHING	-
3	A4728R	1	O-Ring	-
4	AR89228	1	DIPSTICK	(SUB FOR AR54616)
5	19H1731	2	Cap Screw	3/8" X 1"
6	12H304	2	Lock Washer	3/8"
7	R64771	1	RETAINER	(SUB FOR R63081)
8	19H1936	2	Cap Screw	(A) 3/8" X 3/4"
9	12H304	2	Lock Washer	(A) 3/8"
10	T13814	2	Clamp	(A)
10	R27720	1	CLAMP	(B)
11	15H559	2	Pipe Plug	1/4"
12	AR53929	1	HOUSING	(MARKED R49960) (ALSO ORDER R39164 AND R26906, FOR SERIAL NUMBERS 31043 AND ABOVE)
13	AR56080	1	DIPSTICK TUBE	-
14	A3917R	1	O-Ring	-
15	R55214	1	Bushing	(ALSO ORDER A3917R) (SUB FOR R49955)
16	19H3579	5	Cap Screw	1/2" X 1-3/8"
16	19H3544	5	Cap Screw	1/2" X 4-1/2" HS, SAE 8
16	19H1815	5	Cap Screw	1/2" X 1-1/4"
16	19H1990	5	Cap Screw	1/2" X 2-1/4"
17	12H301	8	Lock Washer	1/2"
18	R26863	1	O-Ring	-
19	R26841	1	BUSHING	-
20	14H1040	4	Nut	1/2"
21	12H301	4	Lock Washer	1/2"
22	R49988	4	Stud	(SUB R32101)
23	R57725	4	Screw	(SUB FOR R61762)
24	-	2	Part 28	305MM (12") (16 GA.) (MAKE FROM R65593)
25	R55079	1	COVER	-
26	R238335	1	O-RING	(SUB FOR R26769)
27	15H558	1	Pipe Plug	1/8"
28	R92411	1	Gasket	(SUB FOR R40947 OR R80965)
29	R40922	1	Back-Up Ring	(C)
30	F2741R	1	Packing	(C)
31	R41446	1	COVER	(C)
32	12H293	4	Lock Washer	7/16"
33	19H2500	4	CAP SCREW	7/16" X 1-3/8"
34	R30319	1	O-Ring	-
35	AR54439	1	TUBE	(SUB RE20058 AND AR30697)
35	AR83383	1	OIL TUBE	(SUB RE20058)
36	12H304	1	Lock Washer	3/8"
37	19H2284	1	Cap Screw	3/8" X 7/8"
38	R1225R	1	O-Ring	-
39	AR55304	1	CAP	-
39	AR30697	1	CAP	-

ROCKSHAFT HOUSING WITH BUSHING AND OIL SEALS [04C20]
