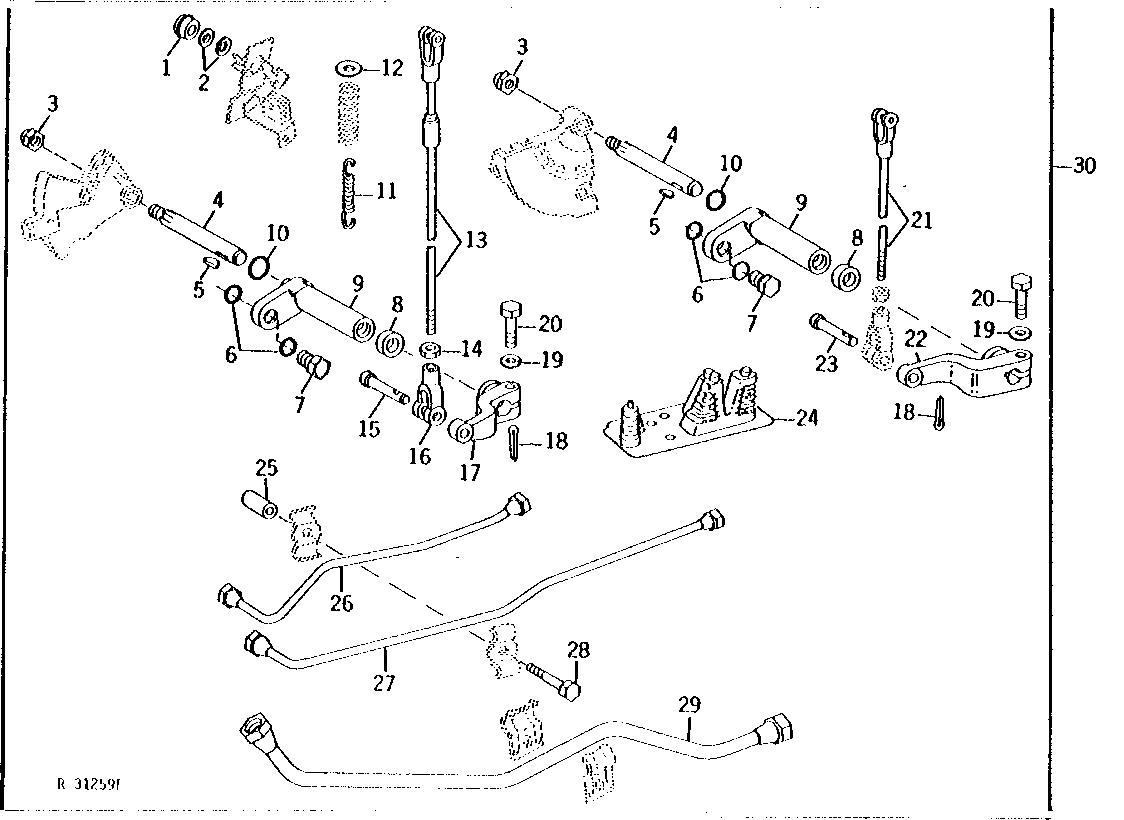

OUTBOARD SHIFTER KIT (TRACTOR SERIAL NO. -034664) [03D12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R62927	1	Spacer	(LESS CREEPER)
2	24H1422	1	Shim	7/8" X 1-3/8" X .018", (LESS CREEPER)
3	E17421	2	Lock Nut	-
4	R61986	2	SHAFT	-
5	26H80	2	SHAFT KEY	3/16" X 7/8"
6	U11326	4	O-Ring	-
7	R65261	2	PLUG	-
8	AR389R	1	Seal	-
9	R65260	2	SUPPORT	-
10	R29463	2	O-Ring	-
11	R56776	1	SPRING	(A)
12	R32731	1	WASHER	-
13	AR75973	1	ROD	(SUB AR94112)
14	14H856	1	Nut	1/2"
15	R73433	1	Pin Fastener	(SUB FOR R63927)
16	T21158	1	Yoke	-
17	R61984	1	ARM	(A)
17	R61988	1	ARM	(B) (C)
18	11M7015	2	Cotter Pin	3.200 X 25 MM
19	12H304	2	Lock Washer	3/8"
20	19H1732	2	Cap Screw	3/8" X 1-1/2"
21	AR75972	1	YOKE	-
22	R61983	1	Arm	(A)
22	R61987	1	ARM	(B) (C)
23	R72855	2	Pin Fastener	(SUB FOR T10187)
24	AR78239	1	BOOT	(B) (C) (SUB RE12512 AND R32239)
25	28H1497	1	Bushing	3/8" X 1-1/2"
26	AR82460	1	OIL LINE	(D)
26	AR82463	1	OIL LINE	(A) (USE WITH AR82453)
26	AR82461	1	OIL LINE	(A) (USE WITH AR82453)
26	AR82459	1	OIL LINE	(A) (USE WITH AR82453)
26	AR82458	1	OIL LINE	(E)
27	AR82462	1	OIL LINE	(E)
27	AR82464	1	OIL LINE	(D)
28	19H3031	1	Cap Screw	3/8" X 2-1/2"
29	AR75978	1	OIL LINE	-
30	AR82453	1	SHIFTER	(A) (F)
30	AR82454	1	SHIFTER	(B) (C) (NLA)

OUTBOARD SHIFTER KIT (TRACTOR SERIAL NO. -034664) [03D12]

Нет текстового описания
