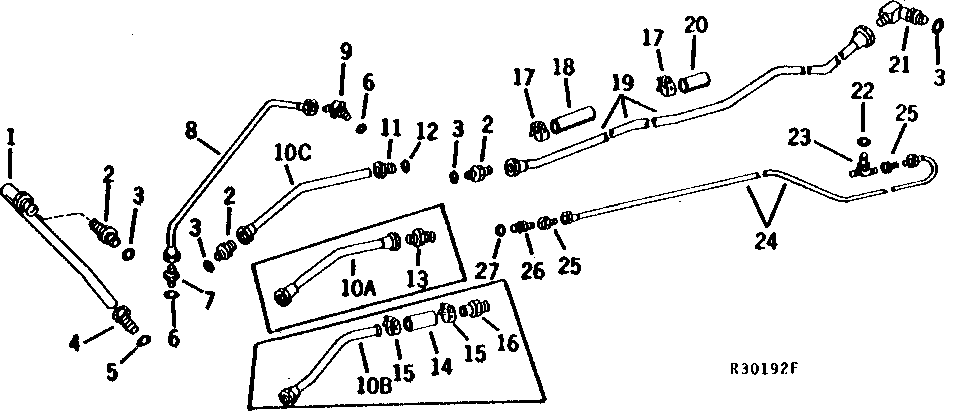

HYDRAULIC OIL RETURN LINES (QUAD-RANGE AND SYNCRO-RANGE) [04C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR74312	1	OIL LINE	ROCKSHAFT HOUSING OR TRANSMISSION REAR COVER TO FILTER RELIEF VALVE, (SUB FOR AR41117)
2	R27267	3	Fitting	-
3	F3171R	4	O-Ring	-
4	R76494	1	FITTING	(SUB FOR R33610)
5	B2762R	1	O-Ring	-
6	R26375	2	O-Ring	-
7	R27237	1	Fitting	-
7	R57298	1	FITTING	(HYDRAULIC THERMOSTAT BYPASS VALVE KIT) (NLA)
8	AR58576	1	OIL LINE	OIL FILTER RELIEF BYPASS
9	AR26745	1	ELBOW FITTING	-
11	R76493	1	FITTING	(SUB FOR R56258)
12	B2762R	1	O-Ring	-
12	F3171R	1	O-Ring	-
13	R27267	1	Fitting	-
14	R55256	1	HOSE	-
15	TY22467	2	Clamp	(SUB FOR AR21839)
16	R53540	1	Hose Fitting	-
17	TY22467	2	Clamp	(SUB FOR AR21839)
18	T21959	1	Isolator	-
19	AR58162	1	LINE	CLUTCH OIL PRESSURE REGULATING VALVE TO PUMP, (SUB AR82916, R43479 AND R76477)
20	T29317	1	ISOLATOR	-
21	AR27888	1	ELBOW FITTING	-
22	R26287	1	O-Ring	-
23	AR56615	1	TEE FITTING	-
24	AR87534	1	OIL LINE	SEAL DRAIN, (ALSO ORDER (2) R64170) (SUB FOR AR42285 OR AR79709)
24	R44302	1	Tie Band	-
25	R64170	2	ADAPTER FITTING	-
26	R40617	1	FITTING	-
27	R26286	1	O-Ring	-
..	AR21969	1	Plug	PLUG ASSORTMENT
10A	AR55086	1	OIL LINE	CLUTCH VALVE PRESSURE, (SUB AR64096, (2) TY22467, R53540 AND R55256)
10B	AR64096	1	OIL LINE	CLUTCH VALVE PRESSURE
10C	AR67011	1	OIL LINE	CLUTCH VALVE PRESSURE

HYDRAULIC OIL RETURN LINES (QUAD-RANGE AND SYNCRO-RANGE) [04C15]
