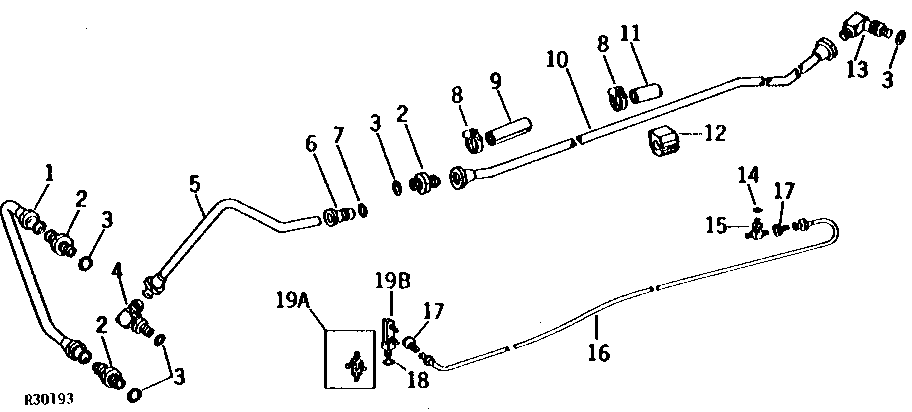

HYDRAULIC OIL RETURN LINES (POWER SHIFT) [04C16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR32345	1	OIL LINE	ROCKSHAFT HOUSING OR TRANSMISSION REAR COVER TO CASE
2	R27267	3	Fitting	-
3	F3171R	5	O-Ring	-
4	AT32331	1	Elbow Fitting	(SUB FOR AR26723)
5	AR39562	1	OIL LINE	PRESSURE REGULATING VALVE TO CASE
5	AR67853	1	OIL LINE	PRESSURE REGULATING VALVE TO CASE
6	R76494	1	FITTING	(SUB FOR R33610)
7	B2762R	1	O-Ring	-
8	TY22467	2	Clamp	(SUB FOR AR21839)
9	T21959	1	Isolator	-
10	AR58162	1	LINE	PRESSURE REGULATING VALVE TO PUMP, (SUB AR82916, R43479 AND R76477)
10	AR82916	1	OIL LINE	PRESSURE REGULATING VALVE TO PUMP
11	T29317	1	ISOLATOR	-
12	R43479	1	SPACER	-
12	R76477	1	Tie Band	(SUB FOR R45440)
13	AR27888	1	ELBOW FITTING	-
14	R26287	1	O-Ring	-
15	AR56615	1	TEE FITTING	-
16	AR79714	1	OIL LINE	SEAL DRAINING, (ALSO ORDER (2) R64170) (SUB FOR AR42286)
16	AR87534	1	OIL LINE	SEAL DRAINING, (ALSO ORDER (2) R64170) (SUB FOR AR42285 OR AR79709)
16	R44302	2	Tie Band	-
17	R64170	2	ADAPTER FITTING	-
18	R26286	1	O-Ring	-
..	AR21969	1	Plug	PLUG ASSORTMENT
19A	AR40689	1	TEE FITTING	-
19B	AR68072	1	TEE FITTING	(NLA)
