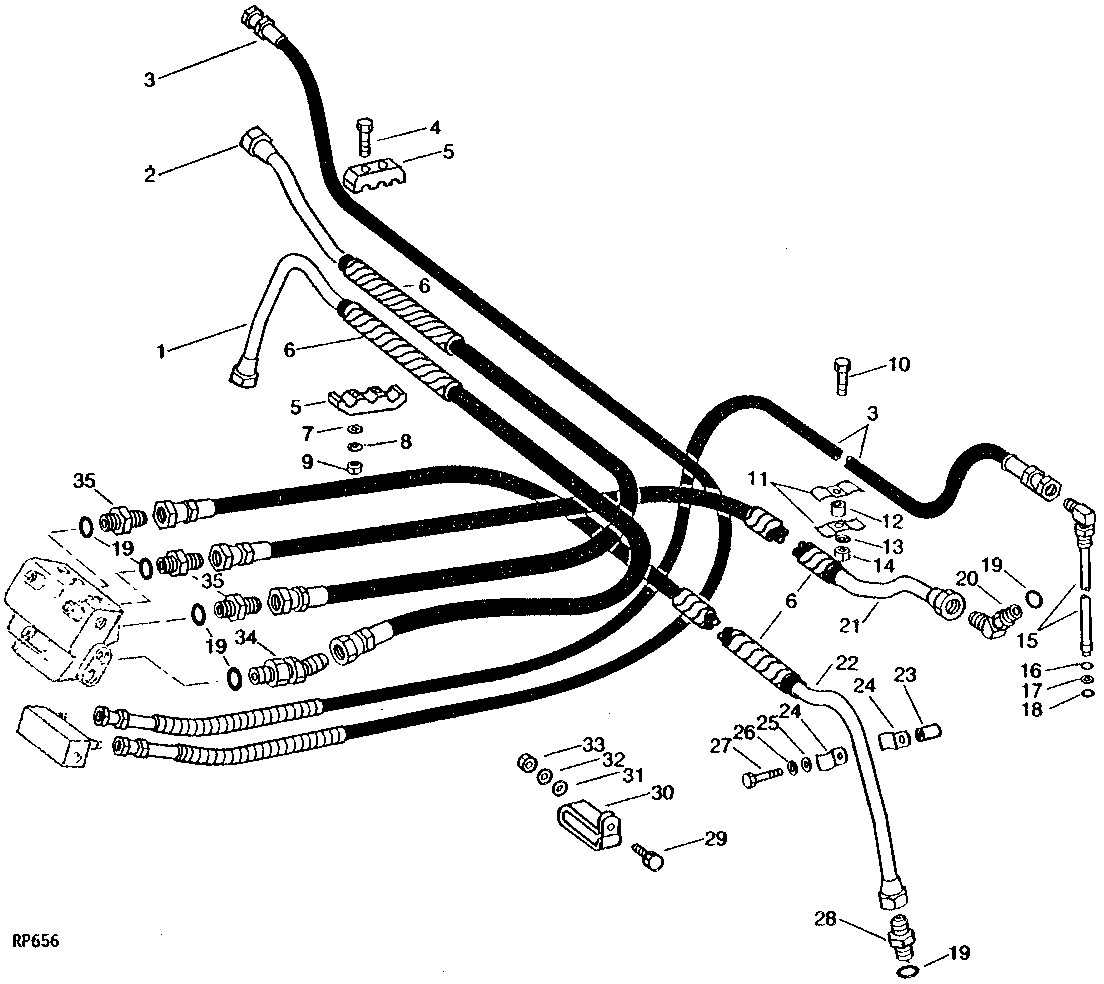

HYDRAULIC OIL LINES (POWER FRONT WHEEL DRIVE) [03H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR62038	1	HYDRAULIC HOSE	-
2	AR62037	1	HYDRAULIC HOSE	-
3	AR82265	2	HYDRAULIC HOSE	(SUB FOR AR64634)
4	19H2762	4	Cap Screw	5/16" X 2-1/4"
5	R65208	4	CLAMP	(SUB R65207)
6	R67366	4	GUARD	(SUB R72341)
7	24H1289	8	Washer	21/64" X 5/8" X 0.049"
8	12H303	4	Lock Washer	5/16"
9	14H785	4	Nut	5/16"
10	19H1765	2	Cap Screw	3/8" X 1-3/4"
11	R46919	4	Half Clamp	-
12	28H1521	2	Spacer	3/8" X 9/16"
13	12H304	2	Lock Washer	3/8"
14	14H1076	2	Nut	3/8"
15	AR53447	2	ELBOW FITTING	-
16	R61462	2	RING	(ALSO ORDER R61463)
17	R61463	2	Back-Up Ring	(ALSO ORDER R61462)
18	R26448	2	O-Ring	-
19	F3171R	8	O-Ring	-
20	AR47803	2	ELBOW FITTING	-
21	AR62037	1	HYDRAULIC HOSE	-
22	AR62038	1	HYDRAULIC HOSE	-
23	28H1496	2	Spacer	1/2" X 1-1/8"
24	R27531	4	Clamp	-
25	24H1652	2	Washer	13/32" X 11/16" X 7/64"
26	12H304	2	Lock Washer	3/8"
27	19H3065	2	Cap Screw	3/8" X 2"
28	R27267	2	Fitting	-
29	19H2021	2	Cap Screw	3/8" X 5/8"
30	R65207	2	Clamp	-
31	24H1305	2	Washer	13/32" X 13/16" X 0.065"
32	12H304	2	Lock Washer	3/8"
33	14H1076	2	Nut	3/8"
34	AR63210	1	ELBOW FITTING	-
35	R27267	3	Fitting	-
..	R44302	1	Tie Band	-
