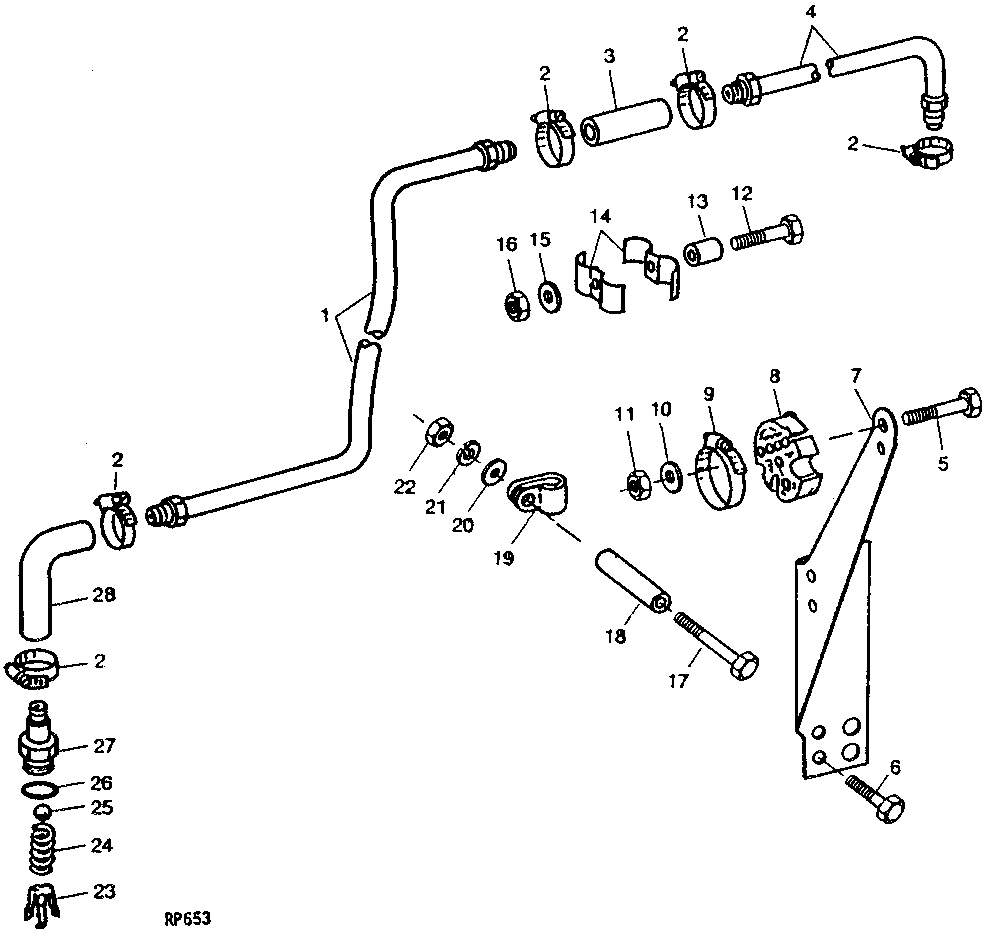

HYDRAULIC OIL COOLER RETURN TUBES (QUAD-RANGE AND SYNCRO-RANGE) [04C08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50708	1	TUBE	-
2	TY22467	4	Clamp	(SUB FOR AR21839)
3	-	1	Part 3	19 X 64MM (3/4" X 2-1/2") (MAKE FROM TY22563)
4	R53686	1	OIL TUBE	(AIR CONDITIONING)
4	R53009	1	TUBE	(LESS AIR CONDITIONING)
5	19H1898	2	Cap Screw	1/4" X 1-1/2"
6	R45692	1	Cap Screw	-
7	R50710	1	SUPPORT	-
7	R56673	1	SUPPORT	-
8	R50711	3	SPACER	-
8	R61522	4	SPACER	(SUB FOR R56953)
9	TY22470	3	Clamp	(SUB FOR AR21840)
9	AR21999	4	Hose Clamp	-
10	24H1287	2	Washer	9/32" X 5/8" X 0.065"
11	14H786	2	Nut	1/4"
12	19H1905	1	Cap Screw	(A) 5/16" X 1"
13	28H1518	1	Washer	(A) 0.493" X 0.675" X 5/16"
14	F1682R	2	HALF CLAMP	(A)
15	12H303	1	Lock Washer	(A) 5/16"
16	14H785	1	Nut	(A) 5/16"
17	19H2228	1	Cap Screw	3/8" X 4"
18	R53451	1	SLEEVE	-
19	T24959	1	Clamp	-
20	24M7096	1	Washer	10.500 X 18 X 1.600 MM
21	12H304	1	Lock Washer	3/8"
22	14H1076	1	Nut	3/8"
23	R53045	1	RETAINER	-
24	A4979R	1	SPRING	-
25	R1818R	1	Ball	(SUB N105745)
26	F3171R	1	O-Ring	-
27	R53540	1	Hose Fitting	-
28	R46485	1	HOSE	(SUB TY22425) (SUB FOR R44141)
..	AR21969	1	Plug	PLUG ASSORTMENT

HYDRAULIC OIL COOLER RETURN TUBES (QUAD-RANGE AND SYNCRO-RANGE) [04C08]

Нет текстового описания
