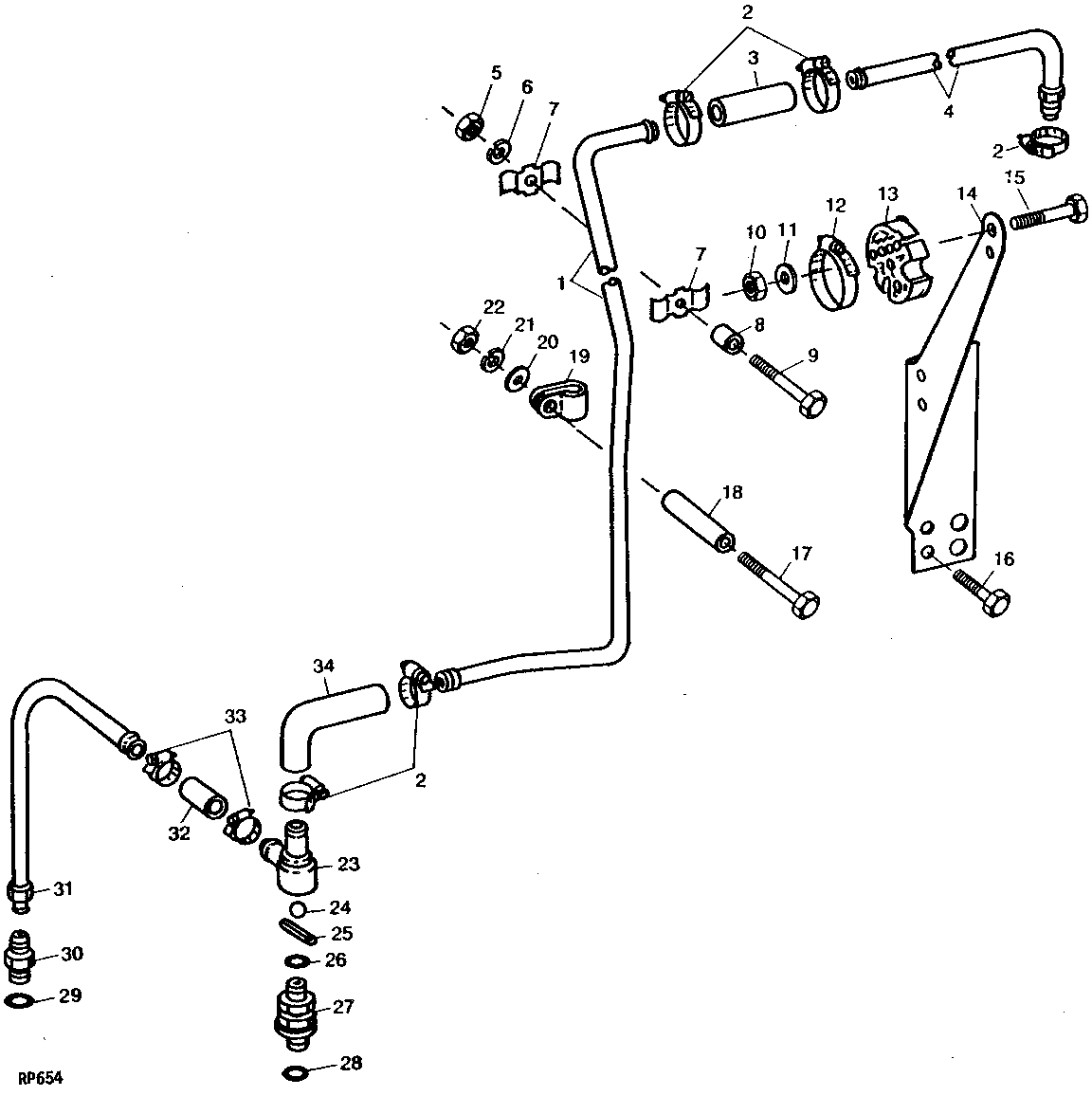

HYDRAULIC OIL COOLER RETURN TUBES (POWER SHIFT) [04C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53685	1	TUBE	-
2	TY22467	4	Clamp	(SUB FOR AR21839)
3	-	1	Part 3	19 X 64MM (3/4" X 2-1/2") (MAKE FROM TY22563)
4	R53686	1	OIL TUBE	(AIR CONDITIONING)
4	R53009	1	TUBE	(LESS AIR CONDITIONING)
5	14H785	1	Nut	(A) 5/16"
6	12H303	1	Lock Washer	(A) 5/16"
7	F1682R	2	HALF CLAMP	(A)
8	28H1518	1	Washer	(A) 0.493" X 0.675" X 5/16"
9	19H1905	1	Cap Screw	(A) 5/16" X 1"
10	14H786	2	Nut	1/4"
11	24H1287	2	Washer	9/32" X 5/8" X 0.065"
12	TY22470	3	Clamp	(SUB FOR AR21840)
12	AR21999	4	Hose Clamp	-
13	R50711	3	SPACER	-
13	R61522	4	SPACER	(SUB FOR R56953)
14	R50710	1	SUPPORT	-
14	R56673	1	SUPPORT	-
15	19H1898	2	Cap Screw	1/4" X 1-1/2"
16	R45692	1	Cap Screw	-
17	19H2228	1	Cap Screw	3/8" X 4"
18	R53451	1	SLEEVE	-
19	T24959	1	Clamp	-
20	24M7096	1	Washer	10.500 X 18 X 1.600 MM
21	12H304	1	Lock Washer	3/8"
22	14H1076	1	Nut	3/8"
23	R53259	1	TEE FITTING	(SUB R62708, AR77284, R495R, R51571 AND 34H247)
23	R62708	1	TEE FITTING	-
24	R51571	1	Ball	-
25	34H184	1	Spring Pin	1/8" X 1-1/8"
25	34H247	1	Spring Pin	1/8" X 3/4"
26	R495R	1	O-Ring	-
26	R53262	1	WASHER	(SUB R495R, AR77284, R62708, R51571 AND 34H247)
27	AR59285	1	THREADED NIPPLE	(SUB AR77284, R62708, R495R, R51571 AND 34H247)
27	AR77284	1	THREADED NIPPLE	-
28	F3171R	1	O-Ring	-
29	R26906	1	O-Ring	-
30	R27270	1	Fitting	-
31	AR59286	1	OIL LINE	-
32	-	1	Part 40	16 X 64MM (5/8" X 2-1/2") (MAKE FROM R20922)
33	TY22465	2	Hose Clamp	(SUB FOR AR21837)
34	T22960	1	Hose	-
..	AR21969	1	Plug	PLUG ASSORTMENT
