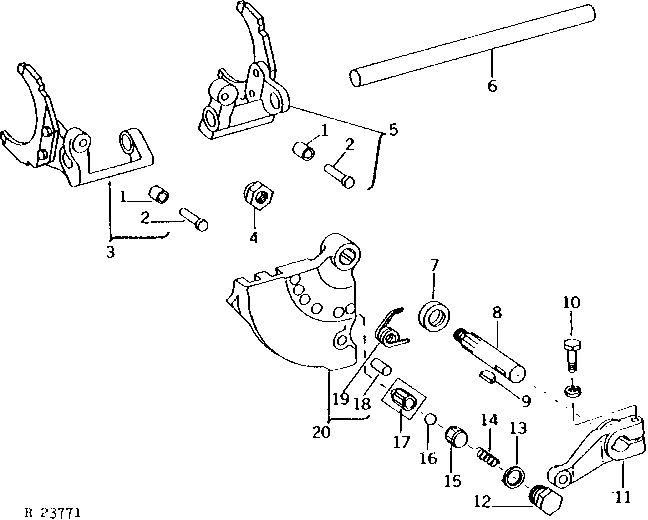

GEAR SHIFTERS AND SHIFTER SHAFT (QUAD-RANGE AND SYNCRO-RANGE) (TRACTOR SERIAL NO. -034663) [03C22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26207	2	Roller	-
2	R26206	2	PIN FASTENER	-
3	AR32179	1	LEVER	(A) (MARKED R33398) (FIRST AND THIRD, SIXTH AND EIGHTH SPEED)
3	AR73157	1	LEVER	(B) (MARKED R46464 OR R60336) (SUB FOR AR48668) (A AND D-RANGE)
4	E17421	1	Lock Nut	-
5	AR32180	1	SHIFTER	(A) (MARKED R33399) (SECOND AND FIFTH, FOURTH AND SEVENTH SPEED)
5	AR32180	1	SHIFTER	(B) (MARKED R33399) (B AND C-RANGE)
6	R33730	1	DOWEL PIN	-
7	AR389R	1	Seal	-
8	R52763	1	SHAFT	(A) (NLA)
8	R52469	1	SHAFT	(B)
9	26H17	1	Shaft Key	3/16" X 7/8"
10	12H304	1	Lock Washer	3/8"
10	19H1800	1	Cap Screw	3/8" X 1-1/2"
11	R52435	1	ARM	(A)
11	R52468	1	ARM	(B)
12	R38181	1	FITTING	-
13	A4827R	1	Washer	-
14	R26203	1	SPRING	-
14	R59378	1	SPRING	-
15	T19079	1	Retainer	-
16	M886T	1	Ball	-
17	R26202	1	PAWL	-
18	34H365	1	Spring Pin	1/2" X 7/8"
19	R109478	1	SPRING	(SUB FOR R27243, R73444 OR R55910)
20	AR74079	1	CAM	(MARKED R33400, R61107 OR R74252) (SUB FOR AR32692, AR65493 OR AR99412) (SUB RE46990)

GEAR SHIFTERS AND SHIFTER SHAFT (QUAD-RANGE AND SYNCRO-RANGE) (TRACTOR SERIAL NO. -034663) [03C22]
