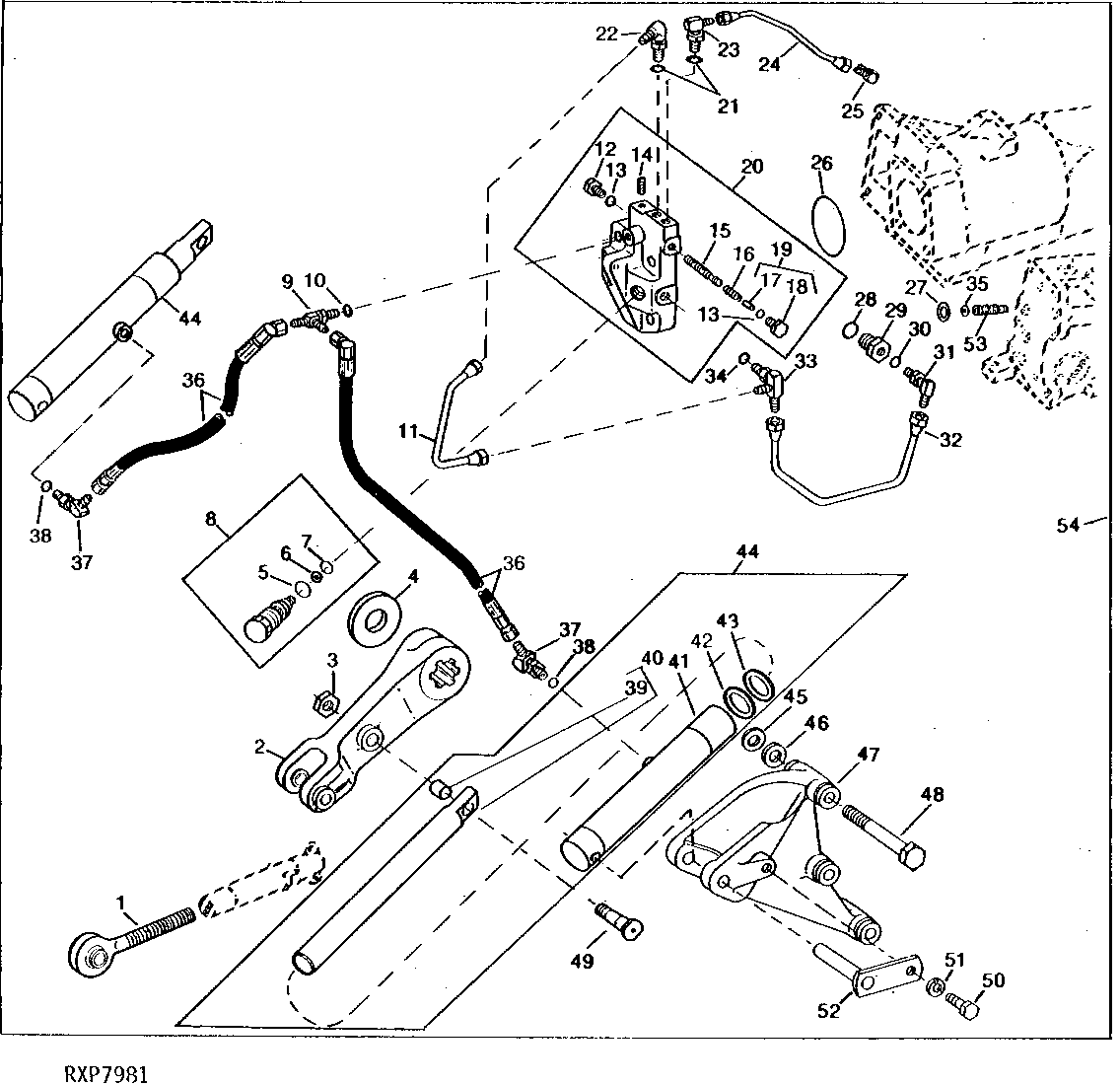

DUAL LIFT ASSIST CYLINDER KIT [04D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR85587	1	LINK END	-
2	R63178	2	LIFT ARM	-
3	P48362	2	Lock Nut	-
4	R64283	2	Lock Washer	-
5	U15242	1	O-RING	-
6	T75972	1	Back-Up Ring	-
7	T44948	1	O-Ring	(SUB FOR U40424)
8	RE36615	1	Pressure Relief Valve	(SUB FOR AR69793 OR AR103059)
9	AM31410	1	Tee Fitting	(SUB FOR AR41987)
10	R26286	1	O-Ring	-
11	AR79886	1	OIL LINE	-
12	R27094	1	Drain Plug	-
13	R26286	2	O-Ring	-
14	15H558	1	Pipe Plug	1/8"
15	R63501	1	VALVE	-
16	R65694	1	SPRING	(SUB FOR M4444T)
17	34H310	1	Spring Pin	1/4" X 3/4"
18	R27094	1	Drain Plug	-
19	AR78428	1	PLUG	-
20	AR81821	1	COVER	-
21	R26286	2	O-Ring	-
22	AT37092	1	ELBOW FITTING	-
23	AR40475	1	ELBOW FITTING	-
24	AR79885	1	OIL LINE	-
25	H80936	1	Elbow Fitting	-
26	R65334	1	WASHER	(SUB FOR R57533)
27	R26149	6	PACKING	-
28	F3171R	1	O-Ring	-
29	R57987	1	Fitting	-
30	R26286	1	O-Ring	-
31	AR36552	1	Elbow Fitting	-
32	AR79887	1	OIL LINE	-
33	AR78286	1	TEE FITTING	-
34	R26448	1	O-Ring	-
35	B1664R	5	SHIM	-
36	AR80894	2	Hydraulic Hose	-
37	AT58895	2	FITTING	(SUB FOR AR46095)
38	R26286	2	O-Ring	-
39	R65744	1	Bushing	-
40	AR84648	1	ROD	(SUB AR97826)
41	AR97828	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AR82410)
42	AR82412	1	Packing	-
43	AR82411	1	SEAL	-
44	AR97826	2	HYDRAULIC CYLINDER	(SUB FOR AR84645)
45	24H1740	1	Washer	21/32" X 1-3/8" X 0.032"
46	R48429	1	Washer	-
47	R107137	1	Support	R.H. (SUB FOR R63175 OR R99107)
47	R107136	1	Support	L.H. (SUB FOR R63176 OR R99106)
48	R107169	8	Cap Screw	5/8" X 6-1/2" HS, SAE 12.9
49	R65743	2	Pin Fastener	-
50	19H1936	2	Cap Screw	3/8" X 3/4"
51	12H304	2	Lock Washer	3/8"
52	AR78288	2	Pin Fastener	-
53	R43791	1	CONTROL VALVE	-
54	RE44521	1	CYLINDER	(SUB FOR AR80805)

DUAL LIFT ASSIST CYLINDER KIT [04D19]

Нет текстового описания
