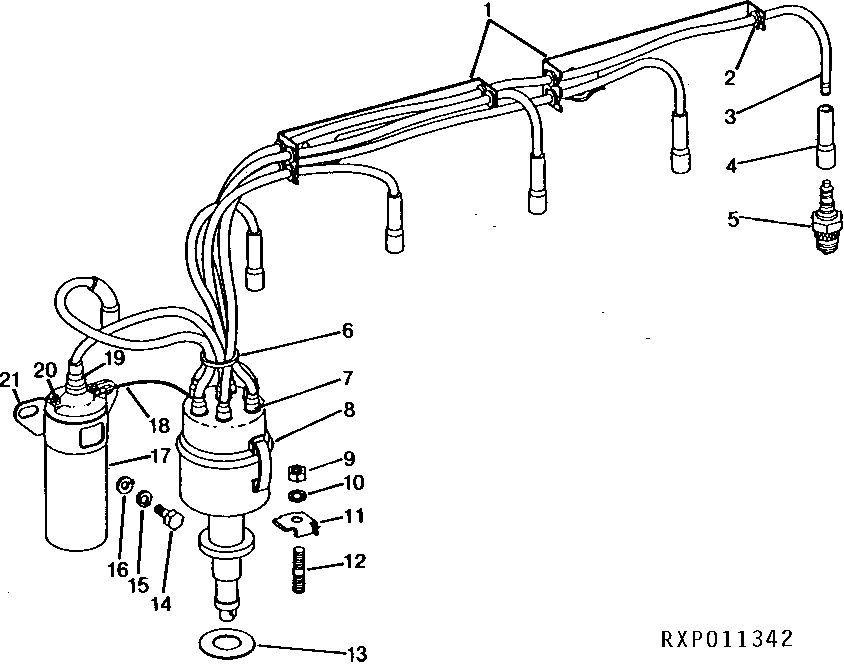

DISTRIBUTOR, COIL, SPARK PLUG CABLES, AND SPARK PLUGS [02C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26862	2	BRACKET	(NLA)
2	R26409	9	GROMMET	-
3	AR50271	1	CABLE	(SUB FOR AR26624) (SET OF 7)
3	AR46275	1	CABLE	(SUB AR46276, AR46277, AR46278, AR46279, AR46280 AND R44302) (SET OF 6) SPARK PLUG CABLES (RADIO NOISE SUPPRESSION)
3	AR46273	1	CABLE	(SUB AR46276 AND A5188R) (IGNITION SECONDARY) (MAY BE CUT TO LENGTH)
4	R26861	6	BOOT	-
5	AA4053R	6	SPARK PLUG	(CHAMPION)(GASOLINE)
5	AR26543	6	SPARK PLUG	(AC)(GASOLINE)(NLA)
5	TY21725	6	SPARK PLUG	(SUB FOR AR14019, AR14021, TY6073 OR TY6074) (PRESTOLITE)(GASOLINE/LP-GAS)
5	AR26544	6	SPARK PLUG	(CHAMPION)(LP-GAS)
5	AR26545	6	SPARK PLUG	(AC)(LP-GAS)(NLA)
6	R1662R	1	WASHER	-
6	R44302	1	Tie Band	-
7	A3539R	7	ELEC. CONNECTOR ACCESSORY	-
8	AR47947	1	IGNITION DISTRIBUTOR	(A) (B) (SUB TY15857) (DELCO-REMY NO. 112466)
8	TY15857	1	IGNITION DISTRIBUTOR	(A) (B) (SUB FOR AR11146, AR11162 OR AR47947)
8	AR11146	1	IGNITION DISTRIBUTOR	(A) (B) (SUB TY15857) (DELCO-REMY NO.112624)
9	E55662	2	Flange Nut	3/8"
10	12H304	2	Lock Washer	3/8", (NOT REQUIRED WITH E55662)
11	A4157R	2	CLAMP	(NLA)
12	R56481	2	STUD	3/8" X 1-1/2", (SUB FOR M3636T)
13	F2632R	1	GASKET	(A) (PKG. OF 2)
14	19H1813	2	CAP SCREW	5/16" X 5/8"
15	12H303	2	Lock Washer	5/16"
16	24H1136	2	Washer	11/32" X 11/16" X 0.065"
17	AR46064	1	ELECTRICAL COIL	(6-VOLT) (SUB FOR AM373T)
18	R11269	1	WIRING LEAD	(SUB TY15857)
19	A4159R	1	BOOT	(NLA)
20	14H631	2	Nut	0.190"
20	12H246	2	LOCK WASHER	0.190"
21	R73142	1	BRACKET	-

DISTRIBUTOR, COIL, SPARK PLUG CABLES, AND SPARK PLUGS [02C18]

Нет текстового описания
