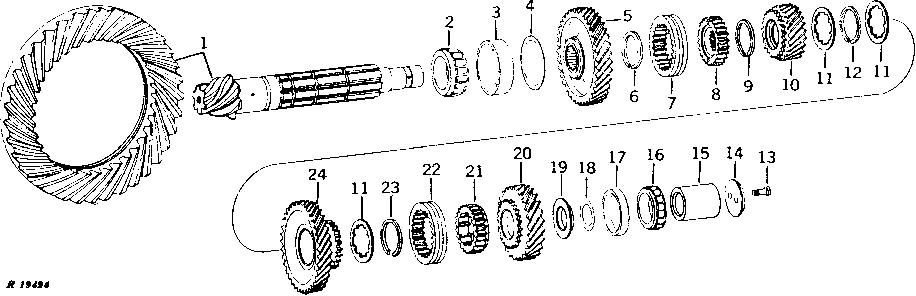

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (SYNCRO-RANGE) [03C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR54984	1	GEAR	(MARKED R33062 AND R50888) (MATCHED SET) (ALSO ORDER (2) R33410, (2) R33411, (2) R33413 AND (2) R33414) (SUB FOR AR63367)
2	JD8977	1	BEARING CONE	-
3	JD8266	1	BEARING CUP	-
4	R33410	1	SHIM	0.08MM (.003")
4	R33411	1	SHIM	0.13MM (.005")
4	R33412	1	SHIM	0.25MM (.010")
5	AR32168	1	GEAR	(MARKED R33367)
6	R46400	1	SNAP RING	-
7	R26066	1	SPLINED COUPLING	-
8	R33387	1	GEAR	-
9	R46401	1	SNAP RING	-
10	R33388	1	GEAR	(SIXTH AND EIGHTH SPEED)
11	R26068	3	WASHER	-
12	R46402	1	SNAP RING	-
13	R57725	2	Screw	(SUB FOR R40835)
14	R57267	1	PLATE	(SUB FOR R50282)
15	-	1	Part 17	(NOT REQUIRED)
16	R154778	1	Bearing Cone	(SUB FOR JD8980)
17	JD7430	1	Bearing Cup	-
18	R33413	1	SHIM	0.08MM (.003")
18	R33414	1	SHIM	0.13MM (.005")
18	R33415	1	Shim	0.25MM (.010")
19	R33386	1	THRUST WASHER	(SUB R69214)
20	R33370	1	GEAR	(FOURTH AND SEVENTH SPEED)
21	R46435	1	GEAR	-
22	R26066	1	SPLINED COUPLING	-
23	R46403	1	SNAP RING	-
24	R33369	1	GEAR	(SECOND AND FIFTH SPEED)

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (SYNCRO-RANGE) [03C01]
