Открытый узел

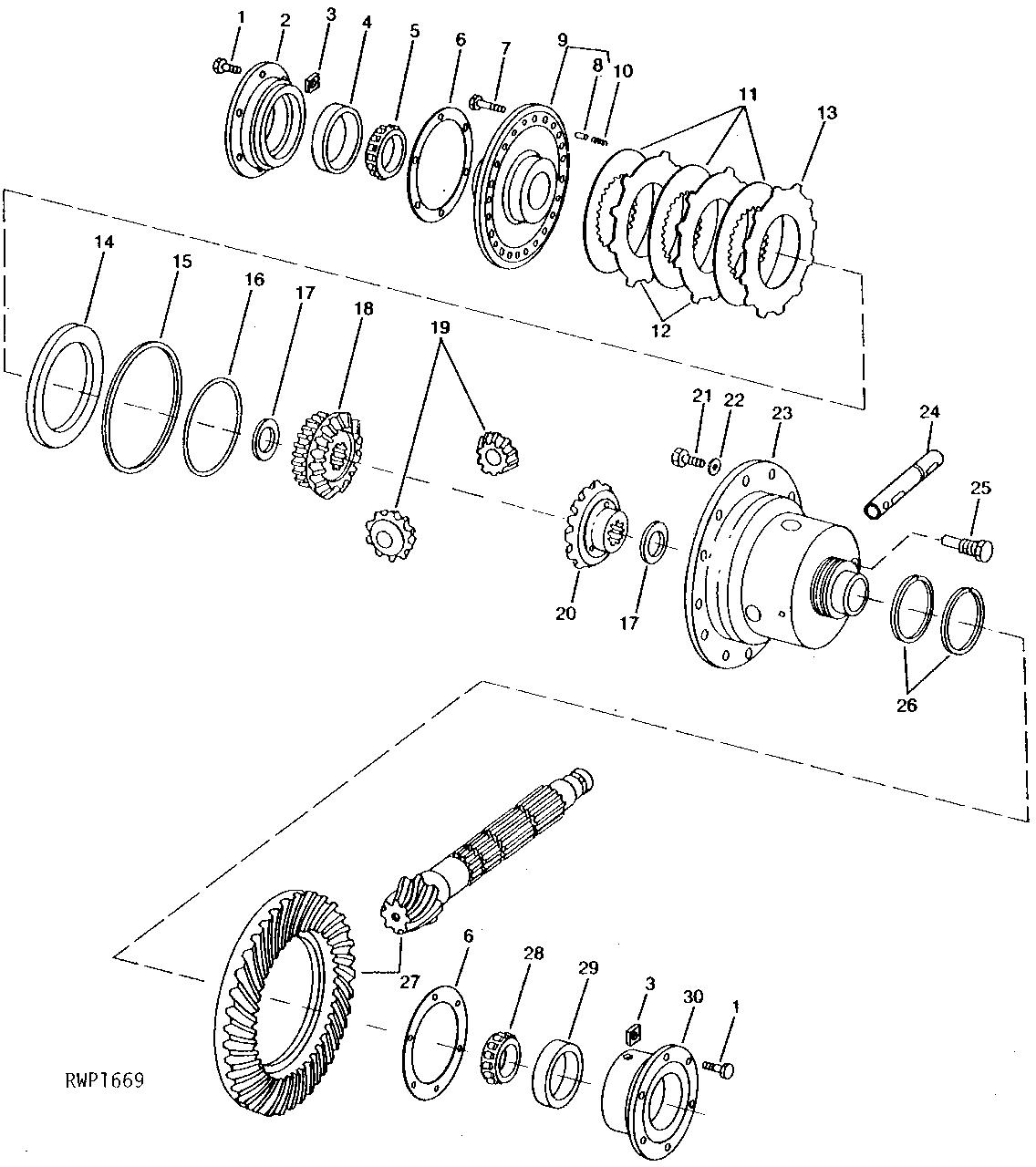

DIFFERENTIAL (DIFFERENTIAL LOCK) (QUAD-RANGE AND SYNCRO-RANGE) [03G07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R46360	1	BEARING HOUSING W/O BEARING	(A) (SUB R72049)
2	R31190	1	BEARING HOUSING W/O BEARING	(B)
2	R59508	1	BEARING HOUSING W/O BEARING	(A)
3	14H823	2	NUT	1/2"
4	JD8290	1	Bearing Cup	(A)
4	JD8259	1	Bearing Cup	(A)
4	JD8259	1	Bearing Cup	(B)
5	JD9019	1	BEARING CONE	(A)
5	JD8954	1	Bearing Cone	(A)
5	JD8954	1	Bearing Cone	(B)
6	R46323	1	Shim	0.08MM (.003") (SUB FOR R26042)
6	R46324	1	Shim	0.13MM (.005") (SUB FOR R26043)
6	R46325	1	Shim	0.25MM (.010")
7	R40236	12	Cap Screw	-
8	34H311	3	Spring Pin	1/4" X 7/8"
9	AR48645	1	COVER	(A) (MARKED R46447 OR R68939) (SUB AR89837)
9	R271076	1	COVER	(A) (MARKED R42505) (SUB R101054 AND (3) 34H311) (SUB FOR AR44614, R101054)
9	R271076	1	COVER	(B) (MARKED R42505) (SUB R101054 AND (3) 34H311) (SUB FOR AR44614, R105054)
10	R34863	3	SPRING	-
11	RE29428	3	DISK	(SUB FOR AR34705 OR AR70154) (SUB RE53823, R34857 AND (2) R34858)
12	R34858	2	Clutch Plate	-
13	R34857	1	Clutch Plate	-
14	R34855	1	PISTON	-
15	R41017	1	WASHER	-
16	R44328	1	WASHER	-
17	R72587	2	THRUST WASHER	(SUB FOR R53202 OR R65741) (SUB R77145)
18	R66715	1	Bevel Gear	(ALSO ORDER R63477 AND (2) R77145) (SUB FOR R54180)
19	R42444	2	PINION	-
20	R63477	1	Bevel Gear	(ALSO ORDER R54180 AND (2) R77145) (SUB FOR R54182)
21	R41048	12	CAP SCREW	-
22	R47172	10	Washer	(SUB FOR R44044)
23	AR48669	1	HOUSING	(A) (MARKED R46468) (SUB AR101617)
23	AR39651	1	HOUSING	(A) (MARKED R34799) (SUB AR101616 KIT)
23	AR39651	1	HOUSING	(B) (MARKED R34799) (SUB AR101616 KIT)
24	R58425	1	SHAFT	(A) (SUB FOR R53740)
24	R41903	1	PINION SHAFT	(B) (SUB R58425)
25	R70236	1	CAP SCREW	(SUB FOR R41050)
26	R46326	2	Ring	(A)
26	R34513	2	Ring	(A)
26	R34513	2	Ring	(B)
27	AR63369	1	BEVEL GEAR DRIVE	(A) (MATCHED SET) (MARKED R33062 AND R50533) (SUB AR94183, R71558 AND (2) R63303)
27	AR54984	1	GEAR	(B) (MATCHED SET) (MARKED R33062 AND R50888) (ALSO ORDER (2) R33410, (2) R33411, (2) R33413 AND (2) R33414) (SUB FOR AR63367)
27	AR94183	1	BEVEL GEAR DRIVE	(A) (MATCHED SET) (MARKED R33062 AND R71557)
28	JD8954	1	Bearing Cone	(A)
28	JD8159	1	Bearing Cone	(A)
28	JD8159	1	Bearing Cone	(B)
29	JD8259	1	Bearing Cup	(A)
29	JD8210	1	Bearing Cup	(A)
29	JD8210	1	Bearing Cup	(B)
30	R46448	1	BEARING HOUSING W/O BEARING	(A)
30	R59509	1	BEARING HOUSING W/O BEARING	(A)
30	R34856	1	Bearing Housing W/O Bearing	(B)
..	AR48800	1	BEARING HOUSING W/O BEARING	(INCLUDES R46448 AND JD8259)

DIFFERENTIAL (DIFFERENTIAL LOCK) (QUAD-RANGE AND SYNCRO-RANGE) [03G07]

Нет текстового описания
