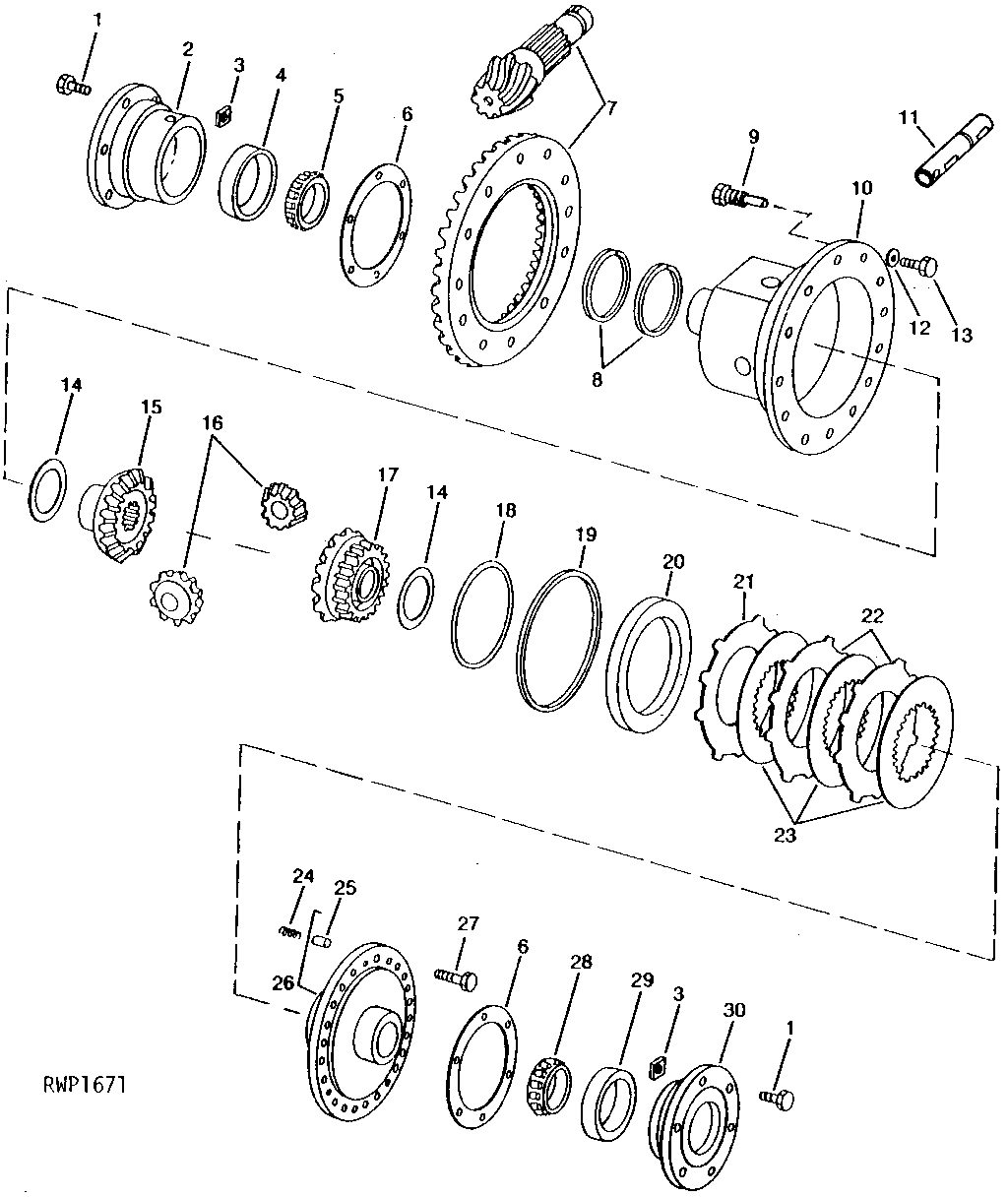

DIFFERENTIAL (DIFFERENTIAL LOCK) (POWER SHIFT) [03G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	1	SCREW	-
2	R46448	1	BEARING HOUSING W/O BEARING	-
2	R59509	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
4	JD8210	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
5	JD8159	1	Bearing Cone	-
6	R46323	1	Shim	0.08MM (.003")
6	R46324	1	Shim	0.13MM (.005")
6	R46325	1	Shim	0.25MM (.010")
7	AR79093	1	BEVEL GEAR DRIVE	(MATCHED SET) (MARKED R41764 AND R41766) (SUB FOR AR63366)
8	R46326	2	Ring	-
8	R34513	2	Ring	-
9	R70236	1	CAP SCREW	(SUB FOR AR41050)
10	AR48669	1	HOUSING	(MARKED R46468) (SUB AR101617)
10	AR39651	1	HOUSING	(MARKED R34799) (SUB AR101616)
11	R58425	1	SHAFT	(SUB FOR R41903 OR R53740)
12	R47172	10	Washer	-
13	R41048	12	CAP SCREW	-
14	R72587	2	THRUST WASHER	(SUB FOR R53202 OR R65741) (SUB R77145) (BEVEL GEAR)
15	R63477	1	Bevel Gear	(ALSO ORDER R54180 AND (2) R77145) (SUB FOR R54182)
16	R42444	2	PINION	-
17	R66715	1	Bevel Gear	(ALSO ORDER R63477 AND (2) R77145) (SUB FOR R54180)
18	R44328	1	WASHER	-
19	R41017	1	WASHER	-
20	R34855	1	PISTON	-
21	R34857	1	Clutch Plate	-
22	R34858	2	Clutch Plate	-
23	RE29428	3	DISK	(SUB FOR AR34705 OR AR70154) (SUB RE53823)
24	R34863	3	SPRING	-
25	34H311	3	Spring Pin	1/4" X 7/8"
26	AR48645	1	COVER	(MARKED R46447 OR R68939) (SUB AR89837)
26	R271076	1	COVER	(MARKED R42505) (SUB R101054 AND (3) 34H311) (SUB FOR AR44614, R101054)
27	R40236	12	Cap Screw	-
28	JD9019	1	BEARING CONE	-
28	JD8954	1	Bearing Cone	-
29	JD8290	1	Bearing Cup	-
29	JD8259	1	Bearing Cup	-
30	R72049	1	BEARING HOUSING W/O BEARING	(SUB FOR R46360)
30	R59508	1	BEARING HOUSING W/O BEARING	-
..	AR48800	1	BEARING HOUSING W/O BEARING	(INCLUDES R46448 AND JD8259)

DIFFERENTIAL (DIFFERENTIAL LOCK) (POWER SHIFT) [03G09]
