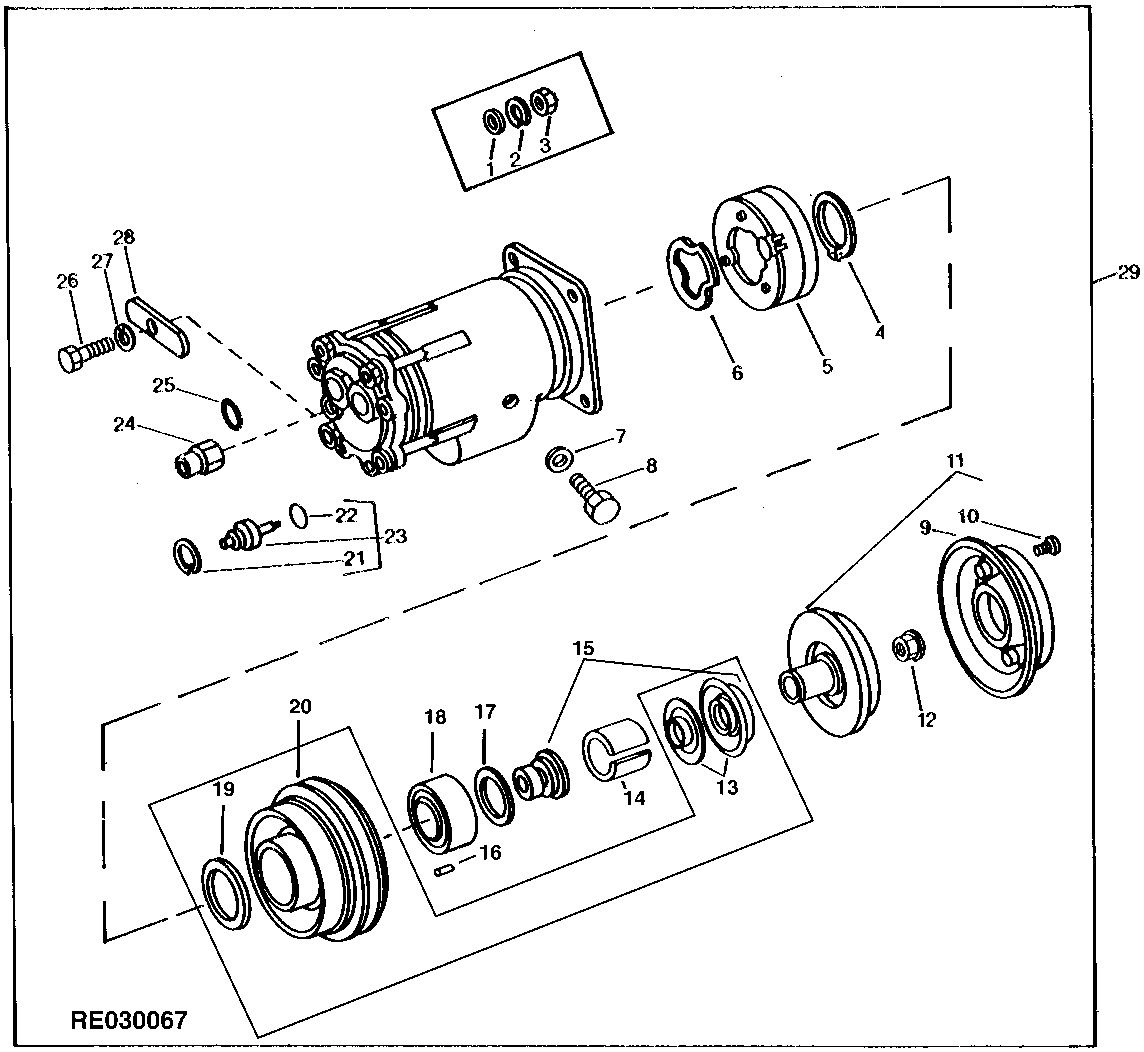

COMPRESSOR, COIL, CLUTCH AND PULLEY [05B09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R47230	1	WASHER	(SUB R69297, THIS APPLICATION)
2	R69297	1	FLANGE NUT	(SUB FOR R47231)
3	R47232	1	NUT	(SUB R69297, THIS APPLICATION)
4	R47224	1	SNAP RING	(ALSO ORDER AR71289)
5	AR49803	1	ELECTRICAL COIL	(ALSO ORDER AR71289)
6	R56246	1	GASKET	(ALSO ORDER AR71289)
7	R47234	1	WASHER	-
8	R47233	1	PLUG	-
9	AR71290	1	COVER	(SUB FOR AR53446)
10	37H32	3	SCREW	0.190" X 3/8"
11	AR71286	1	CLUTCH	(SUB FOR AR63255)
12	R69297	1	FLANGE NUT	-
13	AR71289	1	SHIELD	(SUB FOR R47228 OR AR63254)
14	R47227	1	SEAL	(ALSO ORDER AR71289)
15	AR71285	1	Valve Kit	COMPRESSOR SHAFT SEAL WITH PULLEY BEARING FRONT SHIELD, (SUB FOR AR49806)
16	R47229	1	SHAFT KEY	-
17	R47226	1	SNAP RING	(ALSO ORDER AR71289) (NOT INCLUDED IN AR71287)
18	AR71288	1	BALL BEARING	(SUB FOR AR49805)
19	R54766	1	WASHER	(ALSO ORDER AR71289)
20	AR71287	1	PULLEY	(SUB FOR AR49804)
21	R63571	1	SNAP RING	-
22	32240	1	O-Ring	-
23	AR78501	1	KIT	SUPERHEAT SHUT-OFF
24	AR49808	1	VALVE	-
25	R74210	2	O-Ring	(SUB FOR R47235)
26	19M7170	1	Cap Screw	M10 X 50
27	12M7066	1	Lock Washer	10 MM
28	R60171	1	STRAP	-
29	AR77343	1	COMPRESSOR	(SUB AR92109, 19M7170, (3) 19M7163, (2) 19M7662, (3) 12M7065 AND (3) 12M7066) (SUB FOR AR68802) (R12)
29	AR92109	1	COMPRESSOR	(R12)
..	TY6665	1	COMPRESSOR	(R12)
..	SE501456	1	COMPRESSOR	(REMAN FOR TY6665)
..	TY6770	1	COMPRESSOR	(R134A)
..	SE501457	1	Compressor Reman	(REMAN FOR TY6770)
..	TY6384	1	Oil	0.9L (1 QT) (SUB FOR R49856)
