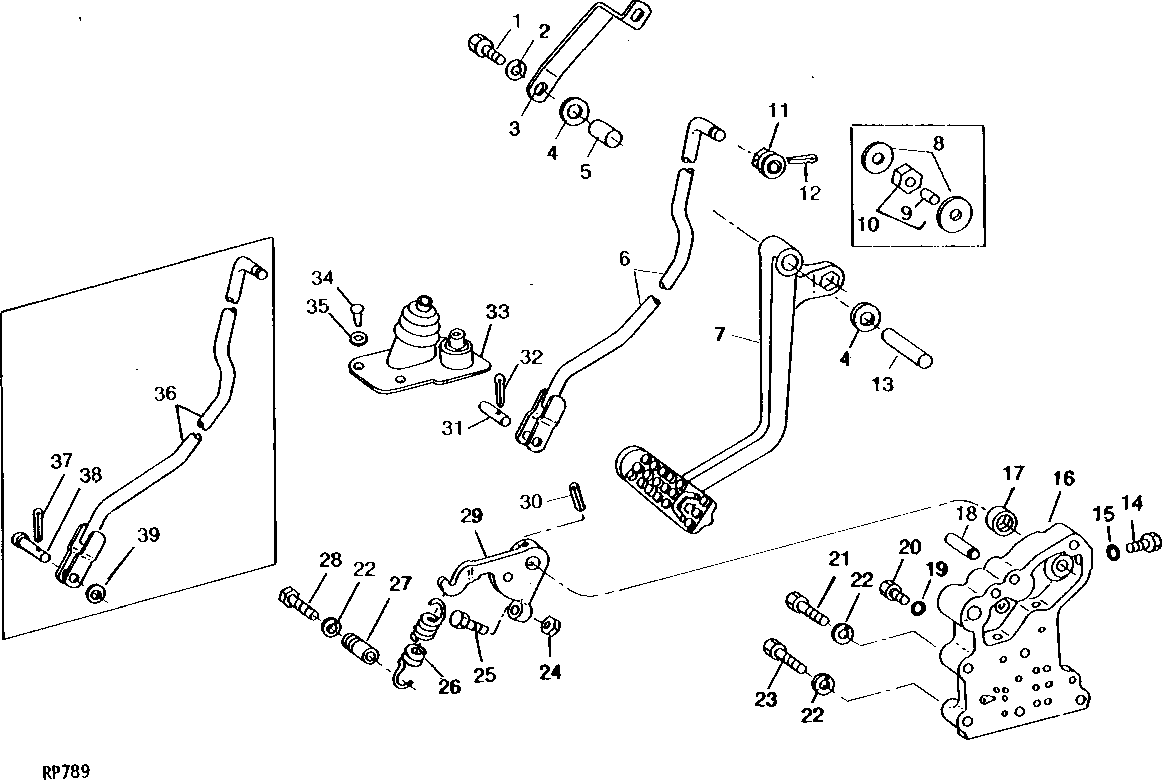

CLUTCH PEDAL AND LINKAGE (POWER SHIFT) [03E07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	1	Cap Screw	3/8" X 1"
2	12H304	1	Lock Washer	3/8"
3	R54396	1	Strap	-
4	24H1394	2	Washer	25/32" X 1-7/16" X 0.036"
5	R51192	1	Bushing	-
6	AR82032	1	ROD	-
7	AR54596	1	Pedal	(MARKED R50287)
8	24H1345	2	Washer	17/32" X 1-3/4" X 0.060"
9	R50359	1	Bushing	-
10	AR59158	1	ADAPTER FITTING	(SUB R62732, 11M7083, AR82032, R64826 AND 11M7021, THIS APPLICATION)
11	R59138	1	ADAPTER FITTING	(SUB R62732, AR82032, R64826 AND 11M7021, THIS APPLICATION)
11	R62732	1	Adapter Fitting	-
12	11M7083	1	Cotter Pin	0.126" X 1.969"
13	R51521	1	Pin	-
14	R27218	1	Fitting Plug	-
15	R26448	1	O-Ring	-
16	AR45381	1	HOUSING	(MARKED R41151 OR R44164) (SUB AR88040 AND 15H558)
16	15H559	1	Pipe Plug	1/4"
17	AF2907R	1	Seal	-
18	B3595R	2	DOWEL PIN	-
19	R26286	3	O-Ring	-
20	R27094	3	Drain Plug	-
21	19H2055	5	CAP SCREW	7/16" X 2-1/4"
22	12H293	7	Lock Washer	7/16"
23	19H2227	2	CAP SCREW	7/16" X 2-1/2"
24	14H732	1	Nut	3/8"
25	19H1732	1	Cap Screw	3/8" X 1-1/4"
26	R73719	1	SPRING	(SUB FOR R51522)
27	R52140	1	SPACER	-
28	19H2058	1	Cap Screw	7/16" X 3-3/4"
29	R51520	1	ARM	-
30	34H188	1	Spring Pin	5/16" X 1-3/4"
31	R64826	1	PIN	-
32	11M7021	1	Cotter Pin	0.157" X 0.984"
33	AR58478	1	BOOT	(SOUND-GARD BODY) (SUB AR86495)
34	37H49	3	Screw	NO. 10 X 1/2"
35	24H1283	3	Washer	7/32" X 1/2" X 0.049"
36	AR60873	1	ROD	(SUB AR82032, R64826, R62732 AND 11M7083)
36	AR71278	1	ROD	(SUB AR82032 AND R64826)
36	AR77393	1	ROD	(SUB AR82032 AND R64826)
37	11M7015	1	Cotter Pin	3.200 X 25 MM
38	B178R	1	Pin	-
39	24H1325	1	Washer	15/32" X 59/64" X 0.065"
