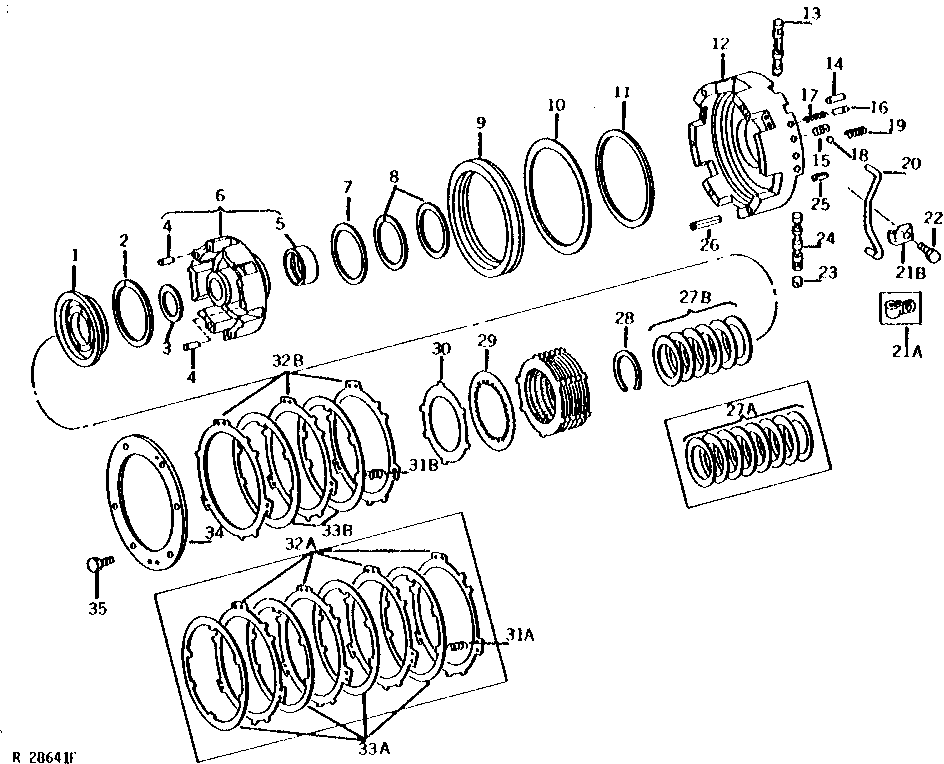

BRAKE PISTON HOUSING AND CLUTCH DRUM (QUAD-RANGE) (TRACTOR SERIAL NO. -034663) [03C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59470	1	PISTON	-
1	R50343	1	PISTON	-
2	R34513	1	Ring	-
3	R39304	1	Washer	-
4	R38295	3	Needle Roller	-
5	R50222	1	Bushing	-
6	AR80118	1	DRUM	(MARKED R64383) (SUB FOR AR54529, AR65230 OR AR68392) (SUB AR78253, AR78252, (6) R47074 AND (6) R57115) (ALSO ORDER R59470, R79522, (6) R50348, (3) AR83798, (4) R39259, (6) R59468, (3) R50152 AND (2) RE29815 PRIOR TO SERIAL NO. 026634)
7	R50349	1	Washer	-
8	R39322	2	Ring	-
9	R50342	1	PISTON	(SUB R79527)
9	R59469	1	PISTON	(SUB R79522)
10	R57849	1	PACKING	(SUB FOR R51229)
11	R57558	1	Packing	(SUB FOR R51497)
12	AR61551	1	HOUSING	(MARKED R50347) (SUB AR82374, AR77262, R62690 AND 34H264)
12	AR82374	1	HOUSING	(MARKED R62838 OR R65226) (SUB FOR AR77519)
13	R53048	1	CONTROL VALVE	-
14	R26650	1	Dowel Pin	-
15	15H558	6	Pipe Plug	1/8", (SUB FOR R21630)
15	R21629	3	PIPE PLUG	(SUB 15H560)
16	R490R	1	PIN	-
17	R53304	1	SPRING	-
18	R26552	1	Ball	-
19	R53052	1	SPRING	-
20	R60523	1	OIL TUBE	-
20	R53051	1	TUBE	(SUB R60523, R60524 AND R57725)
22	19H2038	1	Cap Screw	3/8" X 1/2"
22	R57725	1	Screw	-
23	R53050	1	PIN FASTENER	-
24	R53049	1	VALVE	-
25	34H249	1	Spring Pin	1/8" X 7/8"
26	34H188	6	Spring Pin	5/16" X 1-3/4"
28	R39299	1	Snap Ring	-
29	RE227812	5	CLUTCH DISK	(SUB FOR AR39128)
29	RE29816	3	Disk	(SUB FOR AR71561 OR AR83798)
30	R39259	4	CLUTCH PLATE	-
30	R39259	6	CLUTCH PLATE	-
34	R50153	1	PLATE	-
35	R30165	6	Cap Screw	-
21A	T14264	1	Clamp	-
21B	R60524	1	Clamp	-
27A	R50348	8	Disk Spring	-
27B	R50348	6	Disk Spring	-
31A	R50604	6	Spring	-
31B	R59468	6	Spring	-
32A	R50152	4	Plate	-
32B	R50152	3	Plate	-
33A	AR54528	4	DISK	(SUB RE29815)
33B	RE29815	2	Disk	-
