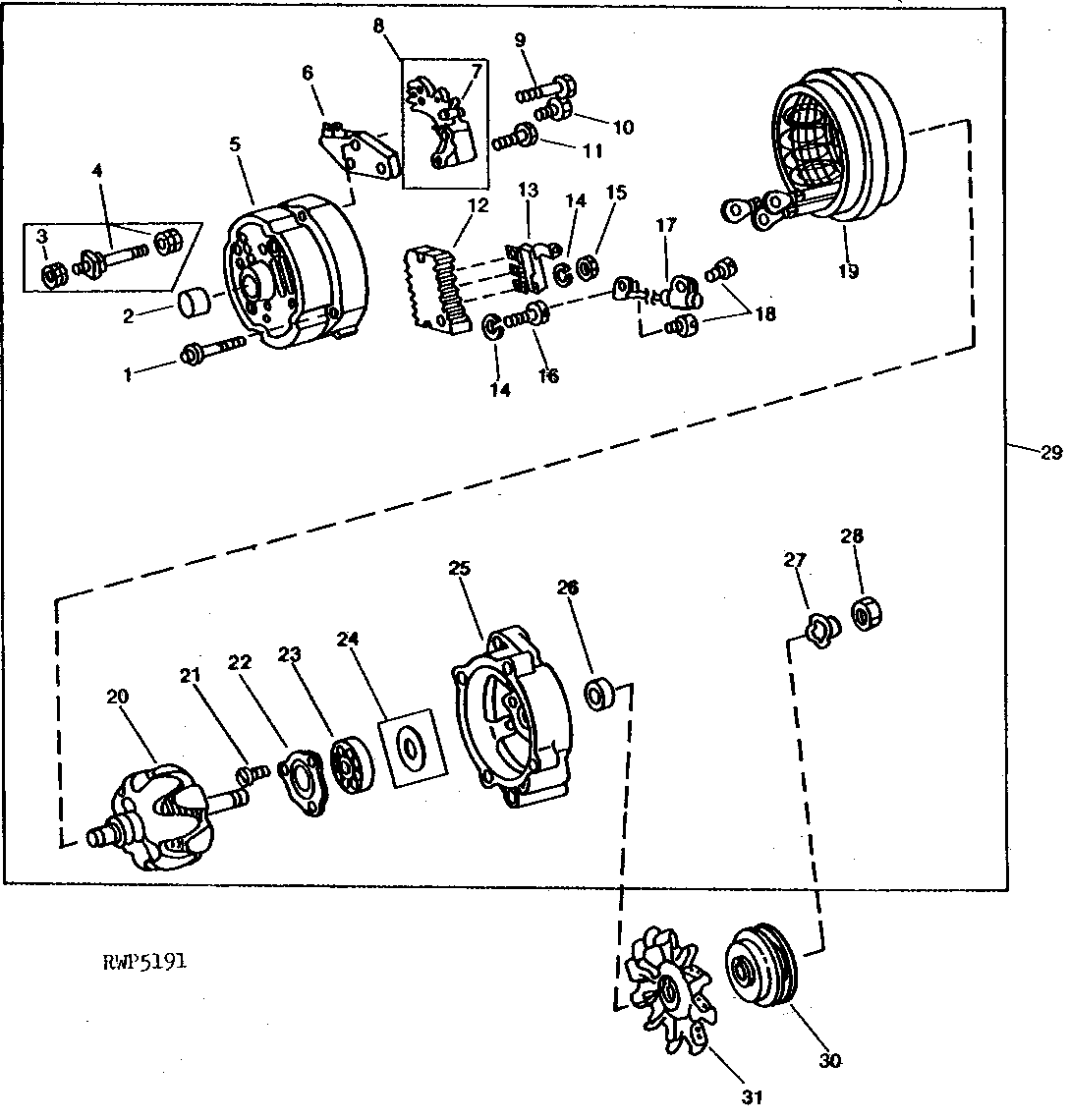

ALTERNATOR (TRACTOR SERIAL NO. 039568- ) [02D04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51535	4	Cap Screw	-
2	AR77851	1	Cylindrical Roller Bearing	-
3	14M7608	1	Flange Nut	M6
4	AR93945	1	Elec. Connector Terminal	(ALSO ORDER 14M7608) (SUB FOR AR55834)
5	R71400	1	Housing	(SUB FOR R66301)
6	AR55827	1	Voltage Regulator	-
7	AR90058	2	BRUSH	-
8	AR85941	1	Carbon Brush Holder	-
9	21H1376	1	SCREW	0.164" X 1-1/4"
10	R51530	2	Screw	-
11	R66302	1	Screw	-
12	RE13799	1	Rectifier	(USE WITH RE13797)
12	AR55832	1	RECTIFIER	(USE WITH AR84306 OR AR93446)
13	RE13798	1	Diode	(SUB FOR AR55831)
14	12M7084	4	Lock Washer	4.300 MM
15	14H605	3	Nut	0.164"
16	21H1319	1	Screw	0.164" X 7/8"
17	AR55835	1	Capacitor	-
18	37H2	2	Screw	0.164" X 5/8"
19	AR55837	1	STATOR	(SUB FOR RE13800) (NLA)
20	RE13801	1	Rotor	(SUB FOR AR78093) NLA
21	21H1301	3	SCREW	0.190" X 1/2"
22	R11109	1	Plate	(SUB FOR AR55836 OR AR78755)
23	JD9449	1	Ball Bearing	(SUB FOR AT23188)
24	R51534	1	SHIM	-
25	R71399	1	Housing	(SUB FOR R51528 OR R69644) (SUB RE20035, R69645, 19H2705, 19H3552, 19H2661, 19H2043, 14H785 AND (4) 12H303)
26	R51533	1	WASHER	-
26	R69645	1	Washer	-
27	T10745	1	Washer	-
28	R11049	1	Nut	-
29	RE27109	1	Alternator	(78 AMP) (SUB RE31694 OR TY6686)
29	SE501386	1	ALTERNATOR	(REMANUFACTURED FOR TY6790)
29	SE501382	1	Alternator Reman	(REMANUFACTURED FOR TY6772)
29	TY6686	1	Alternator	(C) (78 AMP) (REMANUFACTURED)
29	TY6790	1	ALTERNATOR	(B) (72 AMP) (REMANUFACTURED) (SUB FOR TY6625)
29	TY6772	1	ALTERNATOR	(A) (72 AMP) (REMANUFACTURED) (SUB FOR TY6600)
29	RE31694	1	Alternator	(78 AMP) (SUB FOR AR56728, AR54728, AR84306, AR93446, RE13797 OR RE27109) (ALSO FURNISH 14M7608, 12M7006, 12M7065 AND 19M7163)
29	RE13797	1	Alternator	(72 AMP) (SUB RE31694 OR TY6790)
29	AR93446	1	ALTERNATOR	(72 AMP) (SUB RE31694 OR TY6790)
29	AR84306	1	ALTERNATOR	(72 AMP) (SUB RE31694, 14M7608, 12M7006, 12M7065 AND 19M7163 OR TY6790)
30	R52159	1	PULLEY	(DIESEL)
30	R11189	1	PULLEY	(GASOLINE)
31	R50659	1	Fan	-
31	R87764	1	Fan	(USE WITH RE27109 OR RE31694)
