ALTERNATOR AND MOUNTING BRACKETS (DIESEL) [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7608	1	Flange Nut	M6
2	12H296	1	Washer	-
3	AR56728	1	ALTERNATOR	(37 AMP) (DELCO-REMY NO. 1102359) (LESS SOUND-GARD BODY) (SUB RE31694, 14M7608, 12M7006, 12M7065 AND 19M7163 OR TY6772)
3	AR54796	1	ALTERNATOR	(55 AMP) (DELCO-REMY NO. 110491) (SOUND-GARD BODY) (SUB RE31694, 14M7608, 12M7006, 12M7065 AND 19M7163 OR TY6772)
3	AR84306	1	ALTERNATOR	(72 AMP) (DELCO-REMY NO. 1102932) (SUB RE31694, 14M7608, 12M7006, 12M7065 AND 19M7163 OR TY6790)
3	AR93446	1	ALTERNATOR	(72 AMP) (DELCO-REMY NO. 1103128) (SUB RE31694 OR TY6790)
3	RE13797	1	Alternator	(72 AMP) (DELCO-REMY NO. 1105174) (SUB TY6790)
3	RE27109	1	Alternator	(78 AMP) (DELCO-REMY NO. 1101268) (SUB RE31694 AND TY6686)
3	RE31694	1	Alternator	(78 AMP) (SUB FOR AR56728, AR54796, AR84306, AR93446, RE13797 OR RE27109) (ALSO FURNISH 14M7608, 12M7006, 12M7065 AND 19M7163)
3	TY6772	1	ALTERNATOR	(A) (72 AMP) (REMANUFACTURED) (SUB FOR TY6600)
3	TY6790	1	ALTERNATOR	(B) (90 AMP) (REMANUFACTURED) (SUB FOR TY6625)
3	TY6686	1	Alternator	(C) (78 AMP) (REMANUFACTURED)
3	SE501382	1	Alternator Reman	(REMANUFACTURED FOR TY6772)
3	SE501386	1	ALTERNATOR	(REMANUFACTURED FOR TY6790)
4	19H2117	1	Cap Screw	5/16" X 1-1/8"
5	12H303	1	Lock Washer	5/16"
6	R56397	2	Washer	-
7	R50659	1	Fan	-
7	R87764	1	Fan	(USE WITH RE27109 OR RE31694)
8	R52159	1	PULLEY	-
9	T10745	1	Washer	-
10	R11049	1	Nut	-
11	R70871	1	V-BELT	(SUB FOR R52603 OR R52604)
12	R122848	1	Shield	(SUB FOR R41334, R55245 OR R56012)
13	19H2023	1	CAP SCREW	3/8" X 3-1/4"
14	12H304	1	Lock Washer	3/8"
15	14H1076	1	Nut	3/8"
..	AR76059	1	DEFLECTOR	-

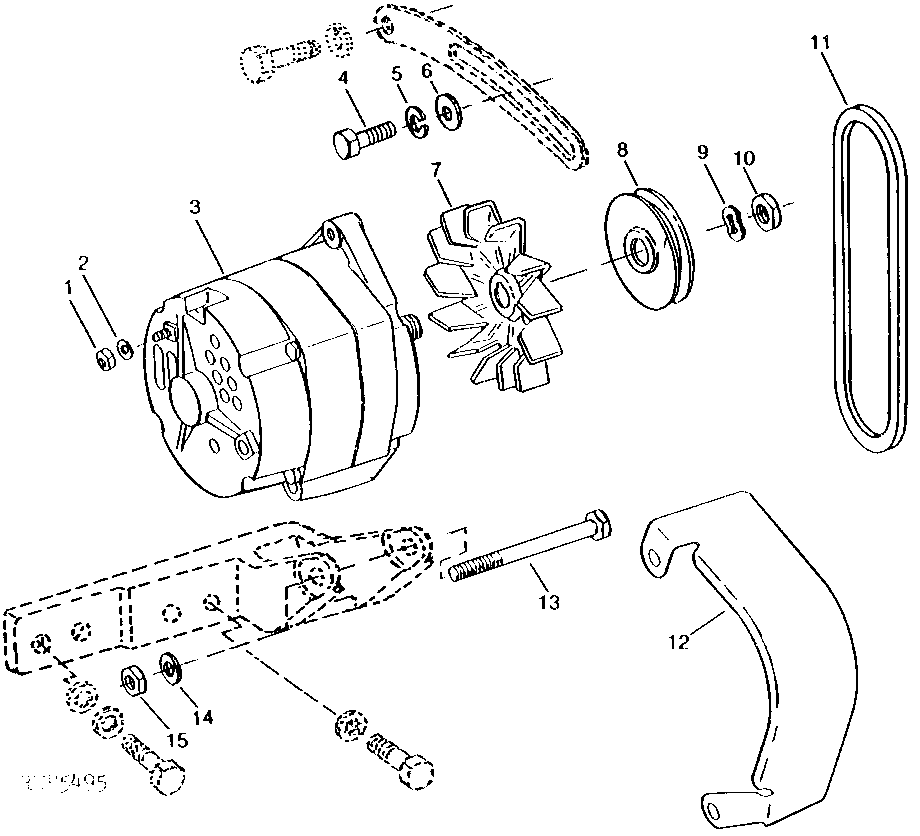

ALTERNATOR AND MOUNTING BRACKETS (DIESEL) [02C24]
