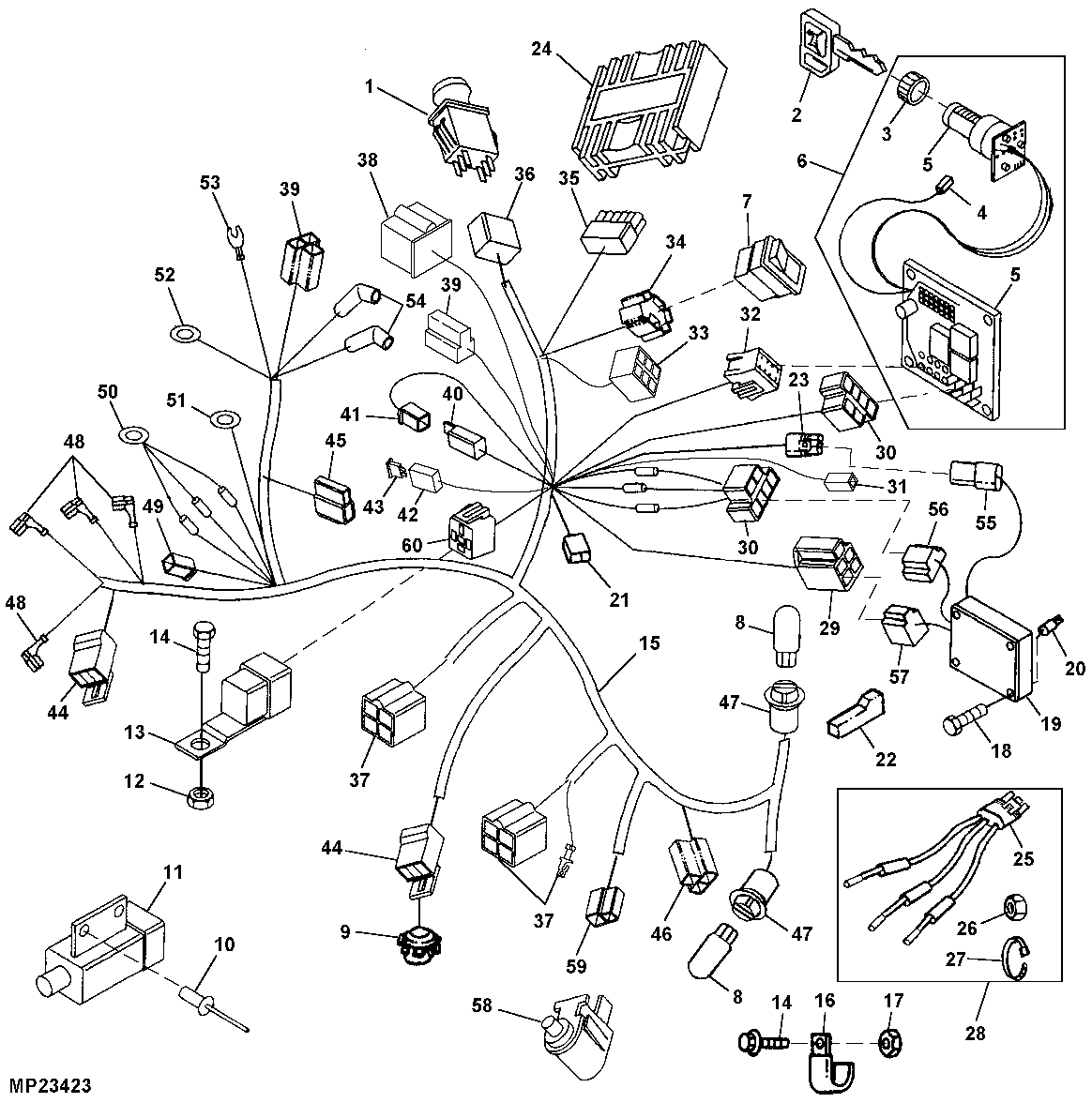

Wiring Harness (Export) (Continued) ( - 070000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
29	ET13894	1	Electrical Connector Assy	DIESEL MODULE POWER OUTPUTS
30	M135517	2	Elec. Connector Terminal	(1) POWER, (1) DIESEL MODULE GLOW/SOLENOID (NLA)
31	57M8815	1	Elec. Connector Housing	Battery SUB FOR T28583
32	M135518	1	Electrical Connector Assy	CONTROL CONNECTOR (NLA)
33	AM108848	1	Regulator Kit	(6 PIN REGULATOR) (AM124806 HARNESS)
34	-	1	Part 6	HEADLIGHT SWITCH
35	57M7710	1	Electrical Connector Assy	DISPLAY PANEL
36	M117518	1	Elec. Connector Terminal	PTO SWITCH
37	T24167	2	Electrical Connector Assy	(1) REAR PTO OPTION (AM124806 HARNESS), (1) BRAKE SWITCH
38	T24167	1	Electrical Connector Assy	REAR PTO OPTION (AM124806 HARNESS)
38	-	1	Part 11	5 WAY (AM120857 HARNESS)
39	M115613	2	Elec. Connector Terminal	(1) REAR PTO OPTION (AM124806 HARNESS), (1) FUEL SOLENOID
40	T28585	1	Electrical Connector Assy	MATE CONNECTOR
41	57M8815	1	Elec. Connector Housing	SUB FOR T28583
42	-	1	Part 15	FUSE
43	57M7121	1	Fuse	10 AMP, (FUEL PUMP)
44	-	2	Part 17	(1) 3 WAY, (1) SEAT SWITCH
45	-	1	Part 18	ENGINE TEMP. RELAY
46	M115613	1	Elec. Connector Terminal	FUEL PUMP SENDER
47	-	2	Part 20	TAILLIGHTS
48	-	4	Part 21	HEADLIGHTS AND HEADLIGHTS GROUND
49	-	1	Part 22	STARTER SOLENOID
50	-	1	Part 23	STARTER
51	-	1	Part 24	ENGINE GROUND
52	-	1	Part 25	GLOW PLUGS
53	-	1	Part 27	OIL PRESSURE SENDER (AM120857 HARNESS) (SAME AS WATER TEMP. SENDER)
53	-	1	Part 26	OIL PRESSURE (AM124806 HARNESS)
54	-	2	Part 28	WATER TEMP. SENDER/SWITCH (AM124806 HARNESS)
54	-	1	Part 29	WATER TEMP. SENDER (AM120857 HARNESS)
55	R78053	1	Electrical Connector Assy	MODULE DIESEL CONTROL
56	-	1	Part 31	MODULE
57	-	1	Part 32	MODULE
58	AM103119	1	Switch	HOOD
59	-	1	Part 34	PTO CLUTCH
60	-	1	Part 35	(AM124806 HARNESS)
60	-	1	Part 36	(AM120857 HARNESS)
61	M77854	1	Eyelet	NLA; Not Illustrated
62	M77856	1	Wire	NLA; Not Illustrated
..	R65597	1	Elec. Connector Terminal	15 AMP, (SUB T34067)
..	M77853	1	Elec. Connector Terminal	5/16 FOR 18-16-14, GAUGE WIRE
..	AM108847	1	Electrical Repair Kit	ALTERNATOR CONNECTOR (INCLUDES (1) 2-PIN CONNECTOR, (3) 2.0 MM WIRE TERMINALS AND (2) 2.0 MM WIRE MALE TERMINALS)
..	AM107086	1	Link Kit	0.8 FUSIBLE LINK (INCLUDES: (6) M77850, (6) M77853, M77855 AND SHRINKABLE TUBING R77502 AND R77503.
..	AM107087	1	Link Kit	1.0 FUSIBLE LINK (INCLUDES: (4) M77850, (4) M77851, (6) M77853, M77854, M77856 AND SHRINKABLE TUBING R77502 AND R77503)
..	AM107088	1	Link Kit	2.0 FUSIBLE LINK (INCLUDES: (4) M77851, (4) M77852, (6) M77853, M77857 AND SHRINKABLE TUBING R77502 AND R77503)
..	T108012	1	Elec. Connector Terminal	-
..	U46662	1	Elec. Connector Terminal	-
..	R65595	1	Elec. Connector Terminal	-
..	L36677	1	Electrical Conductor	-
